Steering Angle Sensor: Service and Repair

Steering Angle Sensor Removal and Installation (ESP(R) model)

Removal
1. Remove steering wheel and contact coil cable assembly.

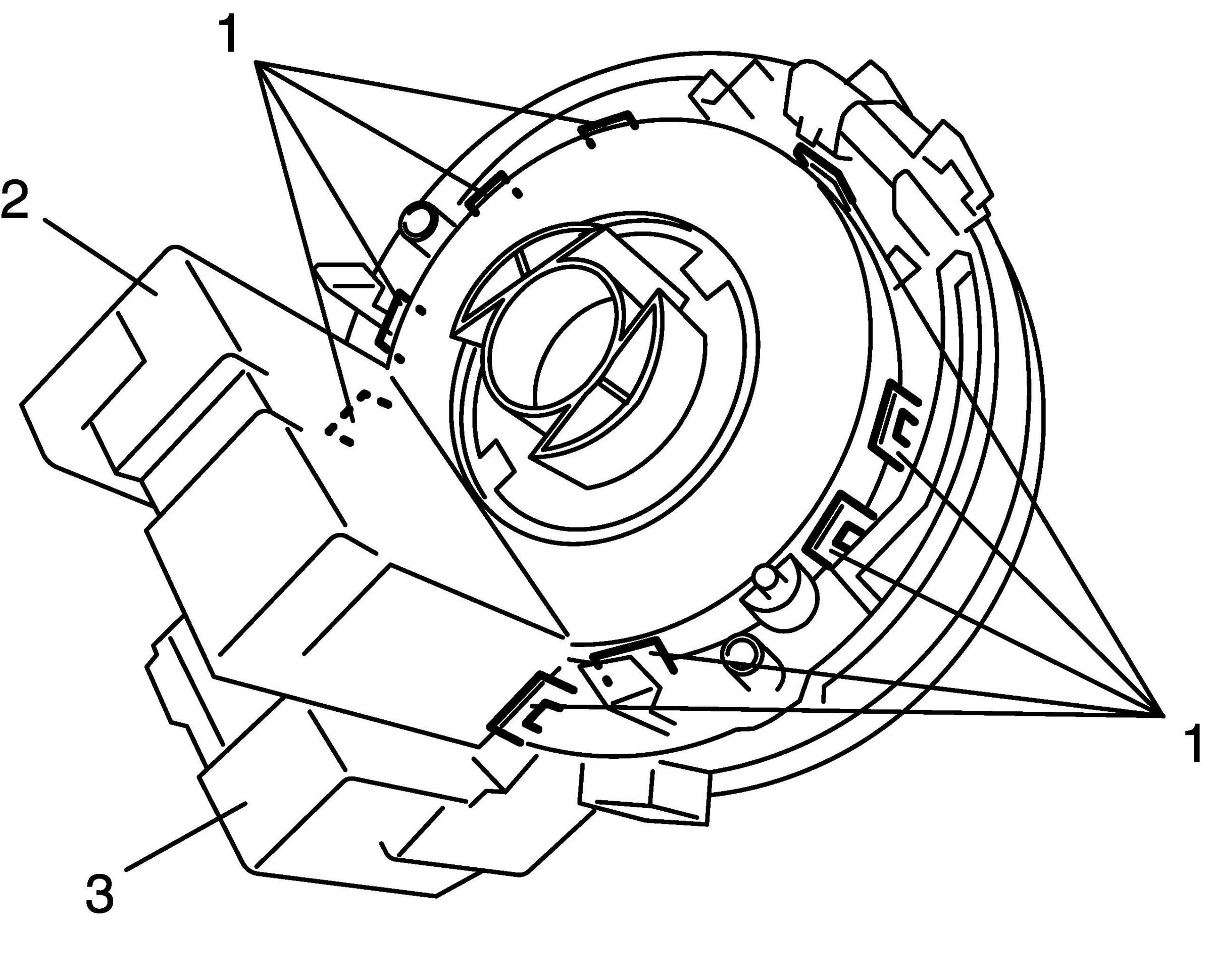

2. Remove steering angle sensor (2) from contact coil cable assembly (3) while opening fitting parts (1) of contact coil cable assembly.





Installation
1. Install steering angle sensor (2) by fitting engagement parts (1) of contact coil cable assembly to claws of steering angle sensor as shown in figure.





2. Install contact coil cable assembly and steering wheel.
