Shift Cable: Adjustments
Select Cable Adjustment1. Remove adjuster (cable end) from select lever pin of select lever assembly.

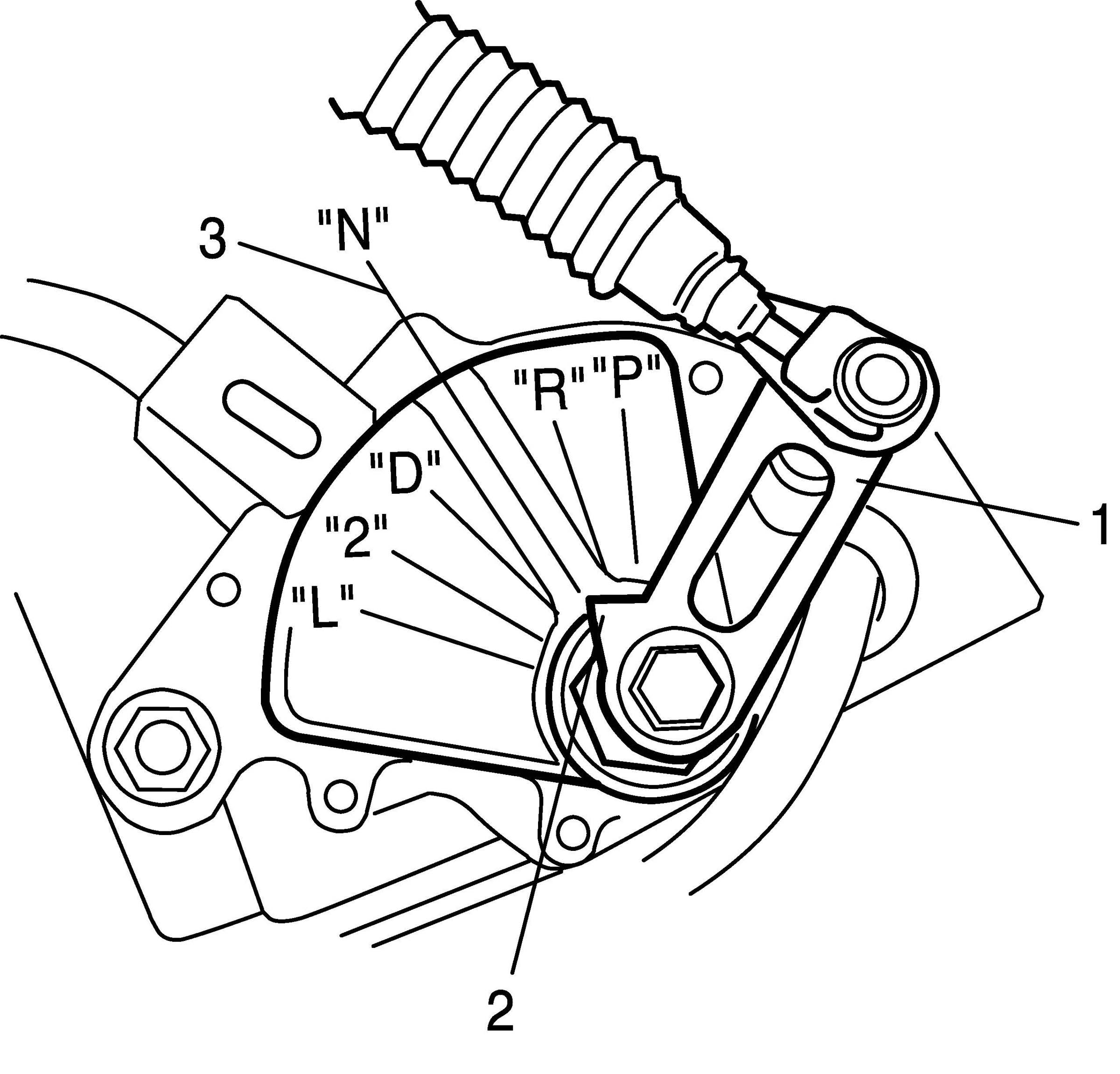

2. Shift manual shift lever (1) to "N" range (transmission range sensor "N" range) aligning arrow (2) of lever (1) with "N" reference line (3).

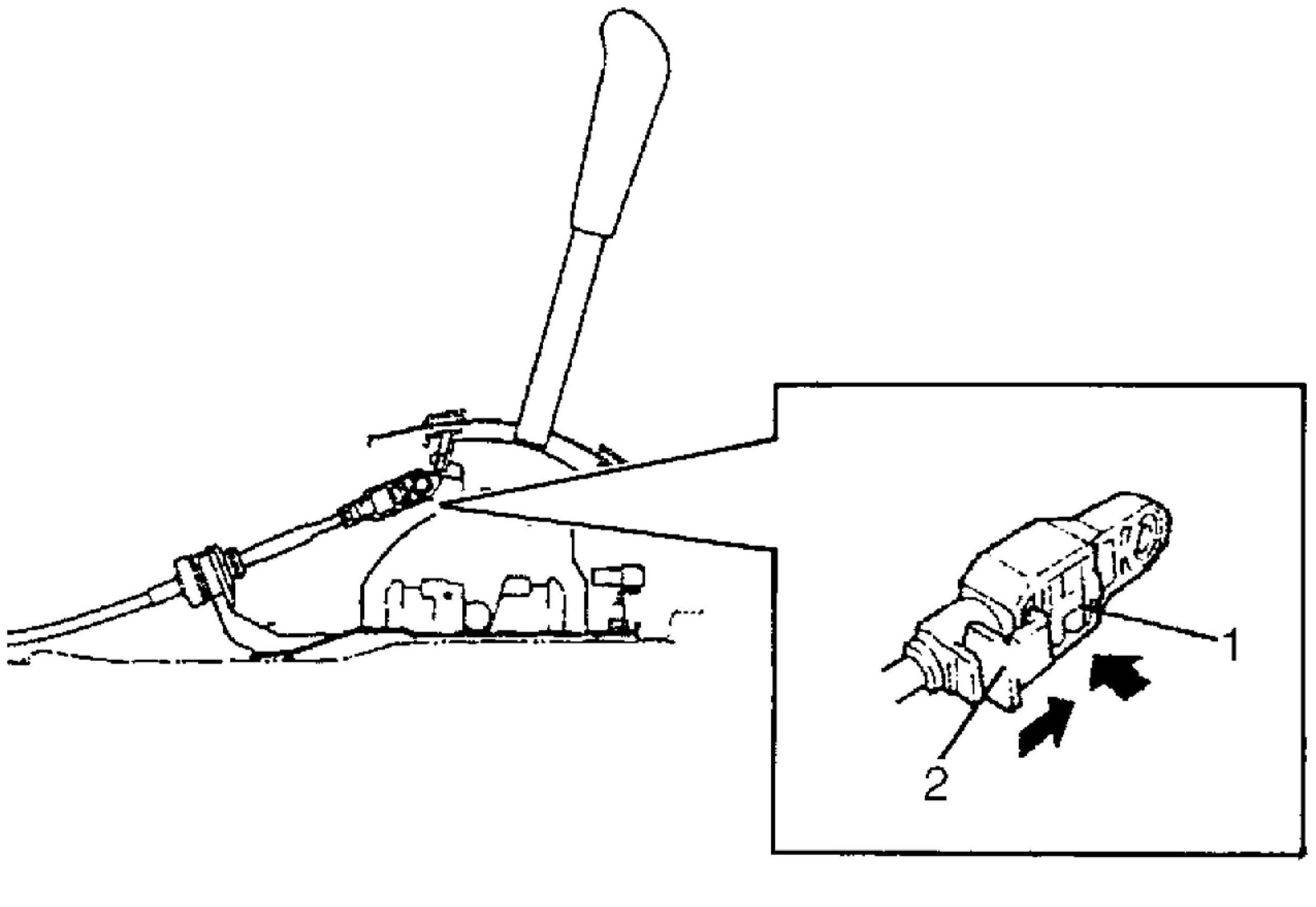

3. Release lock plate (1) which restricts moving of cable end holder (2).

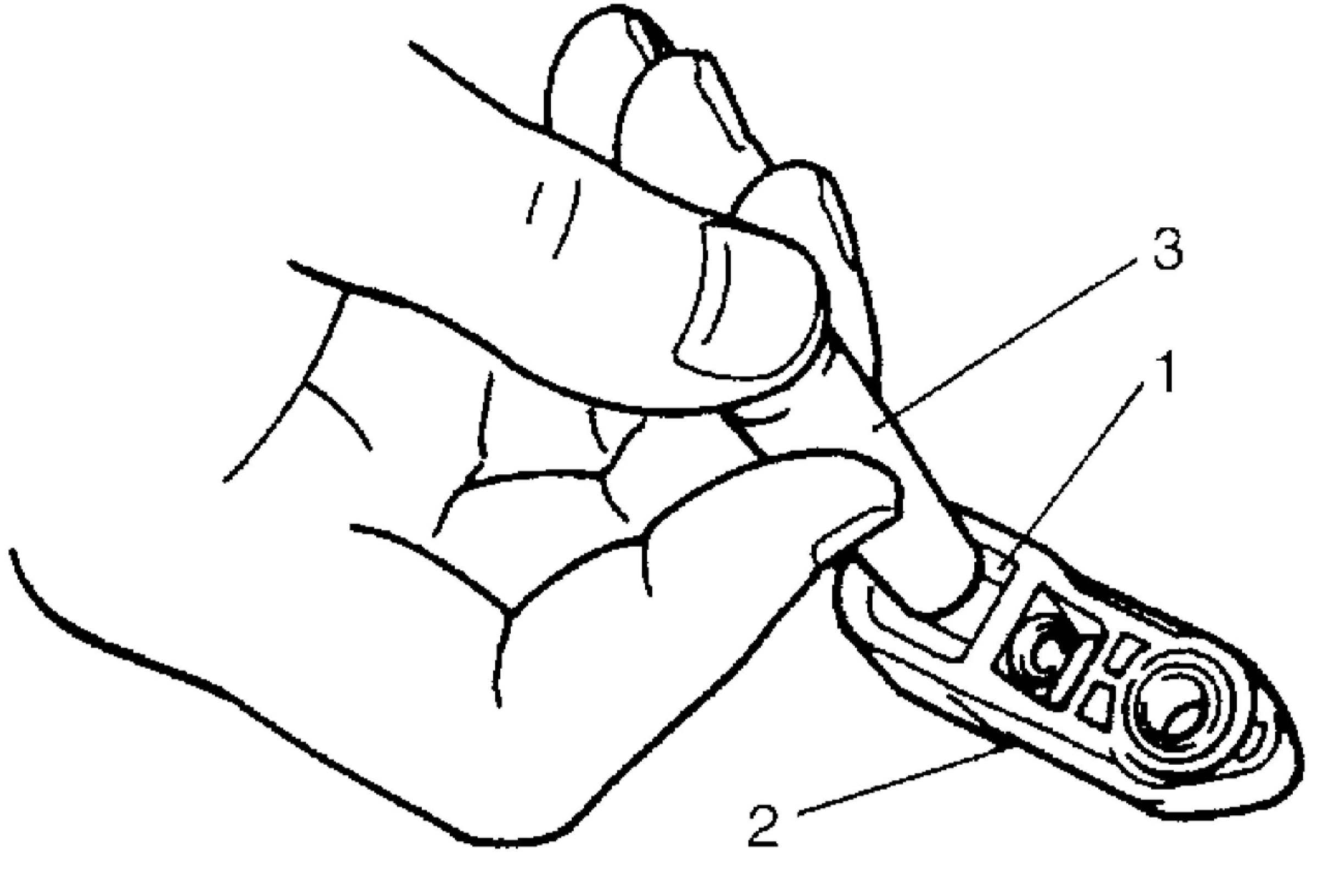

4. Push cable end holder (1) out from eye-end (2) using an appropriate tool (3) to disengage cable.
5. Shift select lever to "N" position.
6. Apply grease to select lever pin and install adjuster (cable end) to it.
Grease 99000-25010SUZUKI Super Grease A
7. With both select lever and transmission range sensor kept each "N" position, drive cable end holder (1) in until it locks cable.

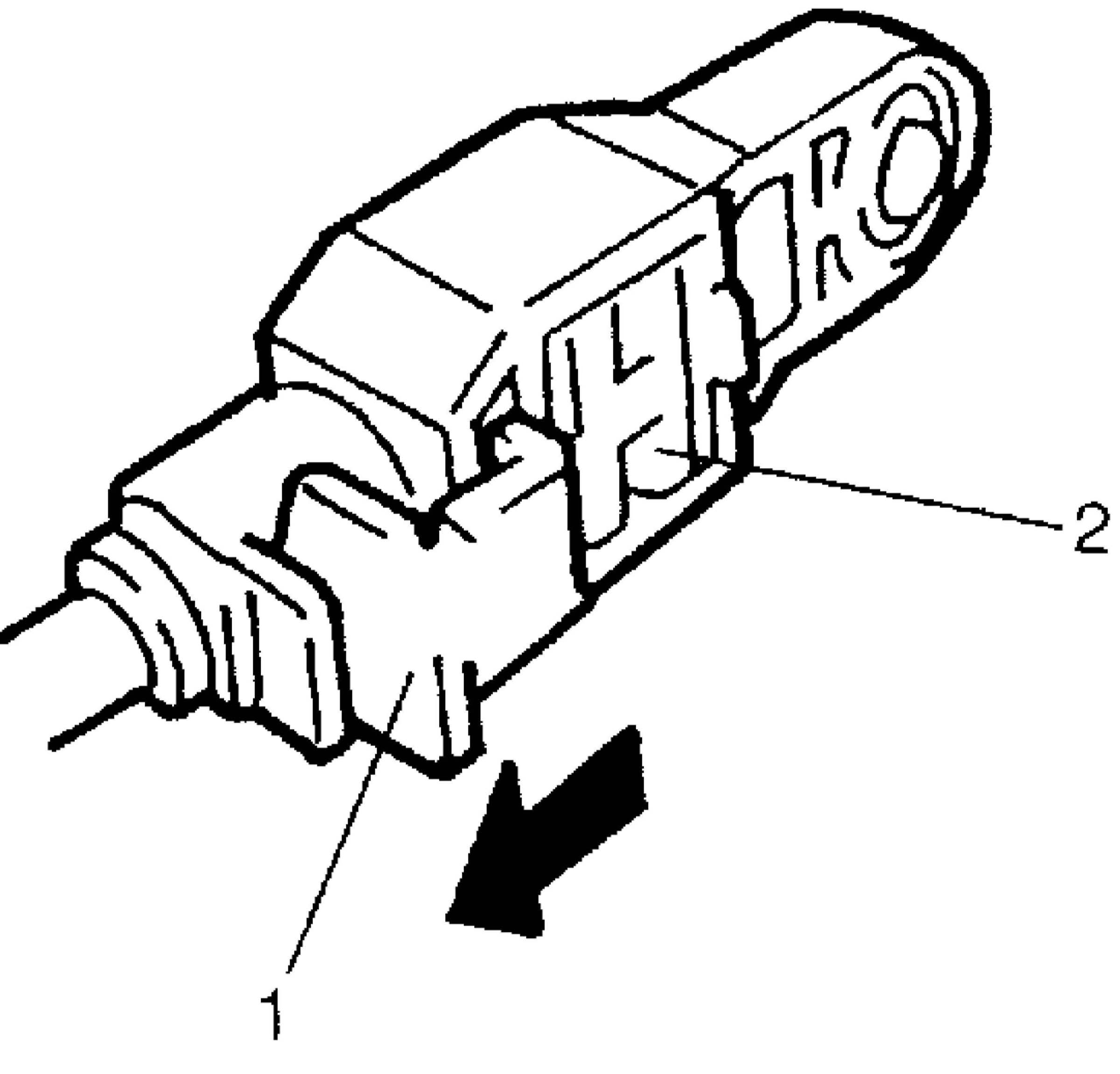

8. Slide lock plate (2) to secure cable end holder in position.
9. After select cable was installed, check for the following.
^ Push vehicle with select lever shifted to "P" range. Vehicle should not move.
^ Vehicle can not be driven in "N" range.
^ Vehicle can be driven in "D", "3", "2" and "L" ranges.
^ Vehicle can be backed in "R" range.
