Input Shaft Speed Sensor Removal and Installation
Input Shaft Speed Sensor Removal and InstallationRemoval

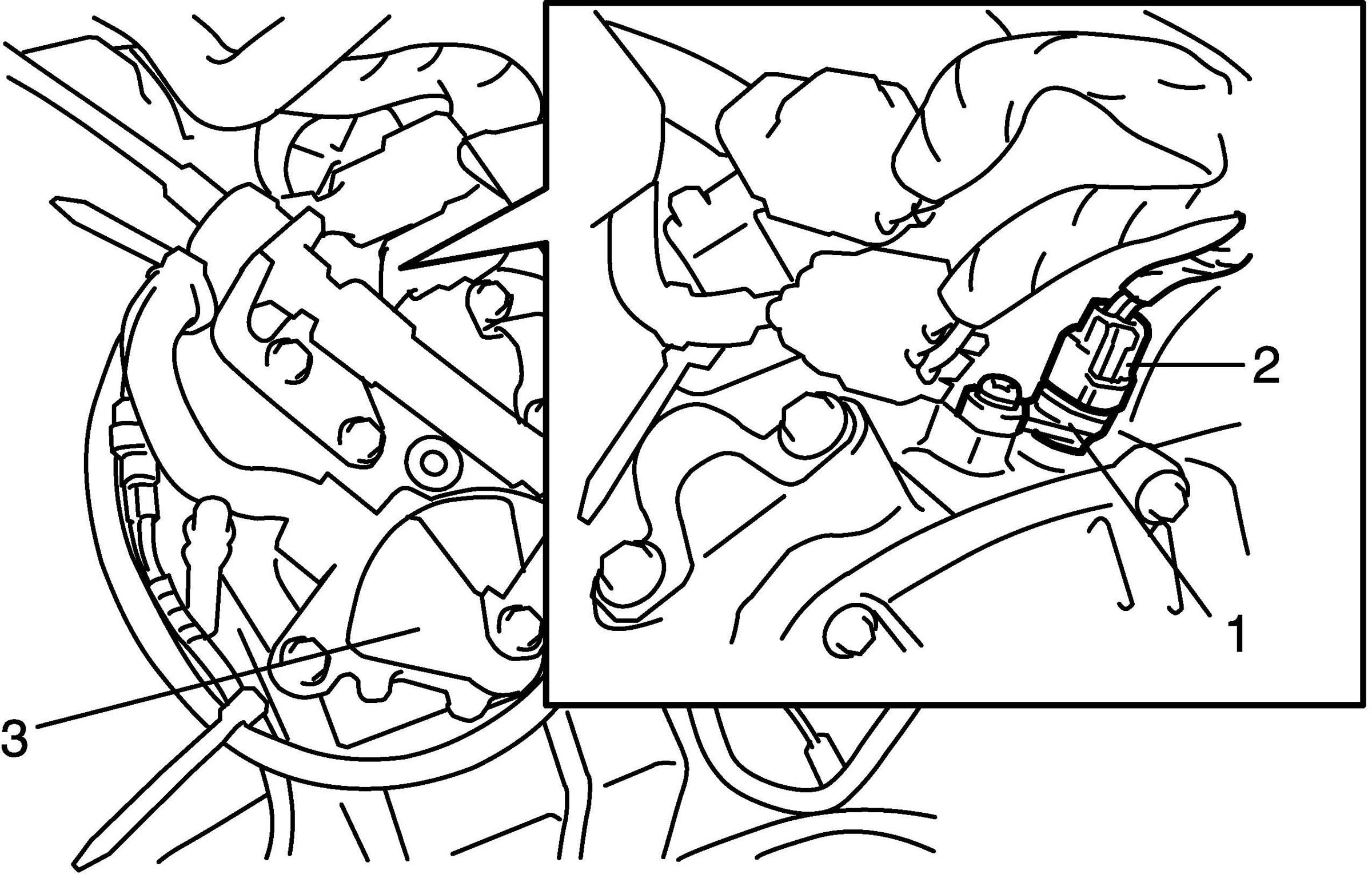

1. Remove battery and battery tray.
2. Disconnect input shaft speed sensor connector (2).
3. Remove input shaft speed sensor (1) by removing its bolt.
Installation
1. Apply A/T fluid to new input shaft speed sensor O-ring.

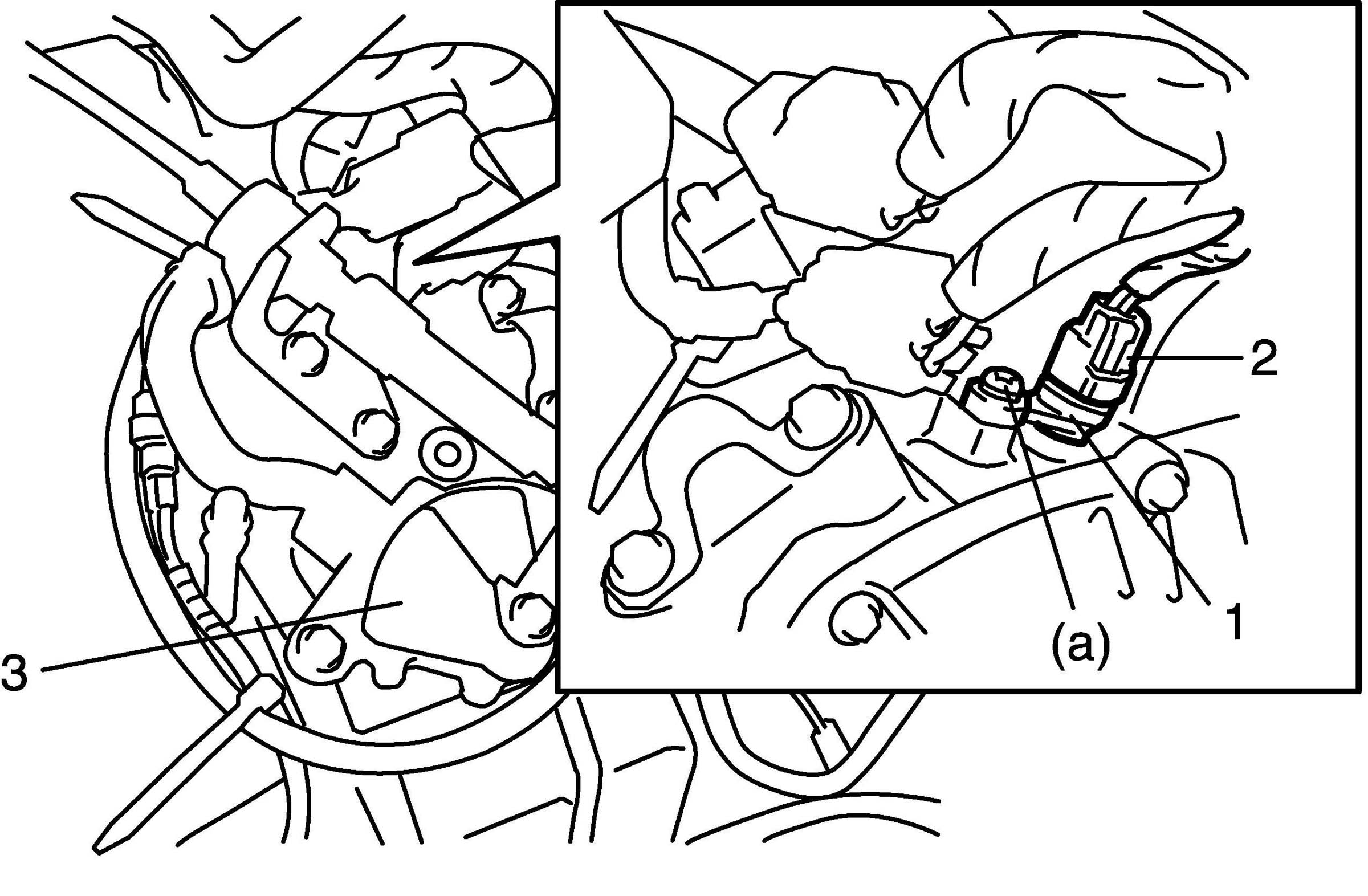

2. Install input shaft speed sensor (1) to A/T case and tighten bolt to specified torque.
Tightening torque
Input shaft speed sensor bolt a: 5.5 Nm (0.55 kgf-m, 4.0 ft. lbs.)
3. Connect input shaft speed sensor connector (2) to input shaft speed sensor (1).
4. Install battery tray and battery.
