Input Shaft Speed Sensor Inspection
Input Shaft Speed Sensor Inspection 1.
Disconnect negative cable at battery.
2.

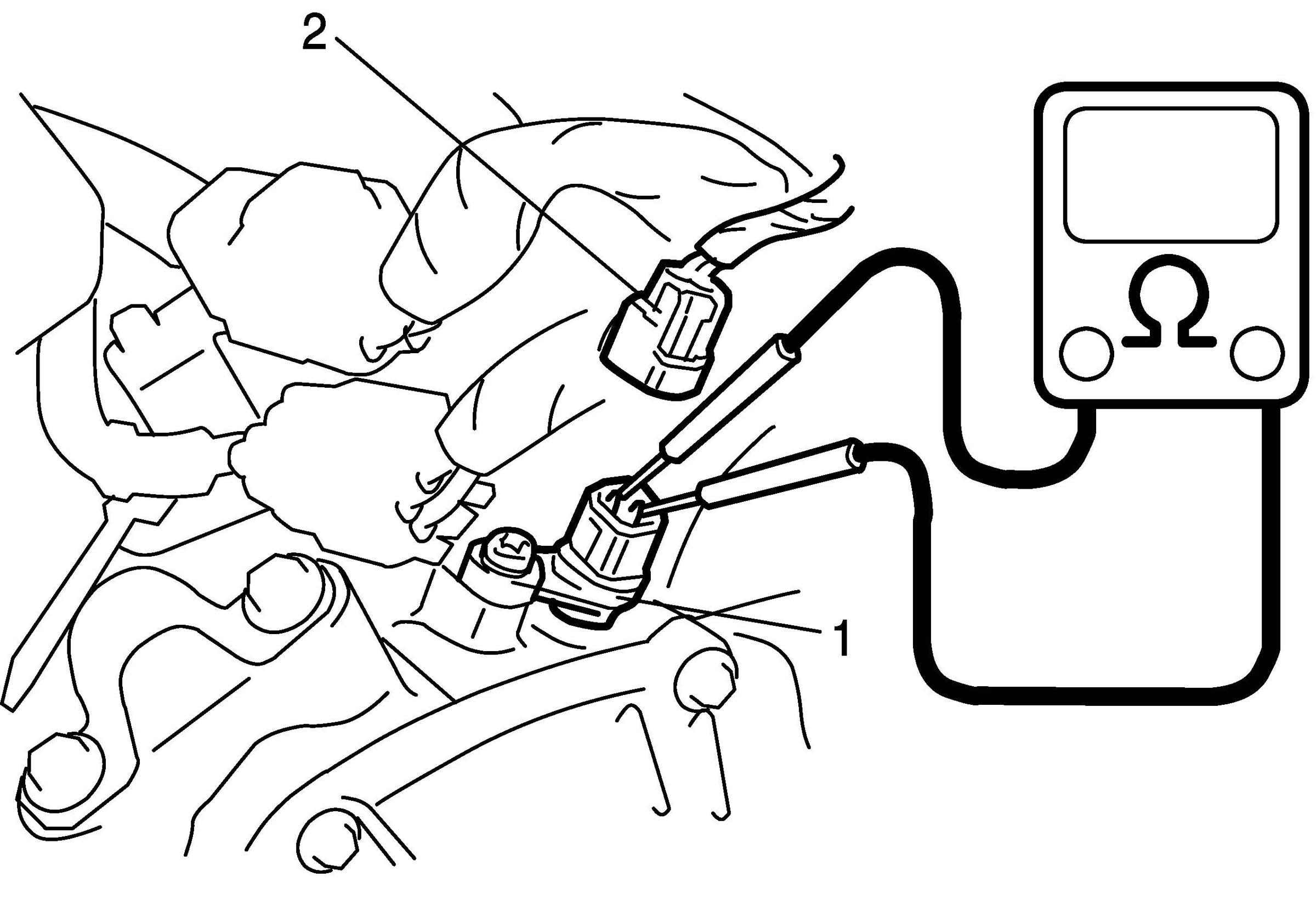

Disconnect input shaft speed sensor connector (2).
3.
Check resistance between input shaft speed sensor (1) terminals. If check result is not as specified, replace sensor.
Input shaft speed sensor resistance
Standard:
344 - 516 ohms at 20°C (68°F)
