Windshield Washer Pump: Testing and Inspection
WASHER PUMP INSPECTIONReference: Washer Tank and Washer Pump Removal and Installation
1.

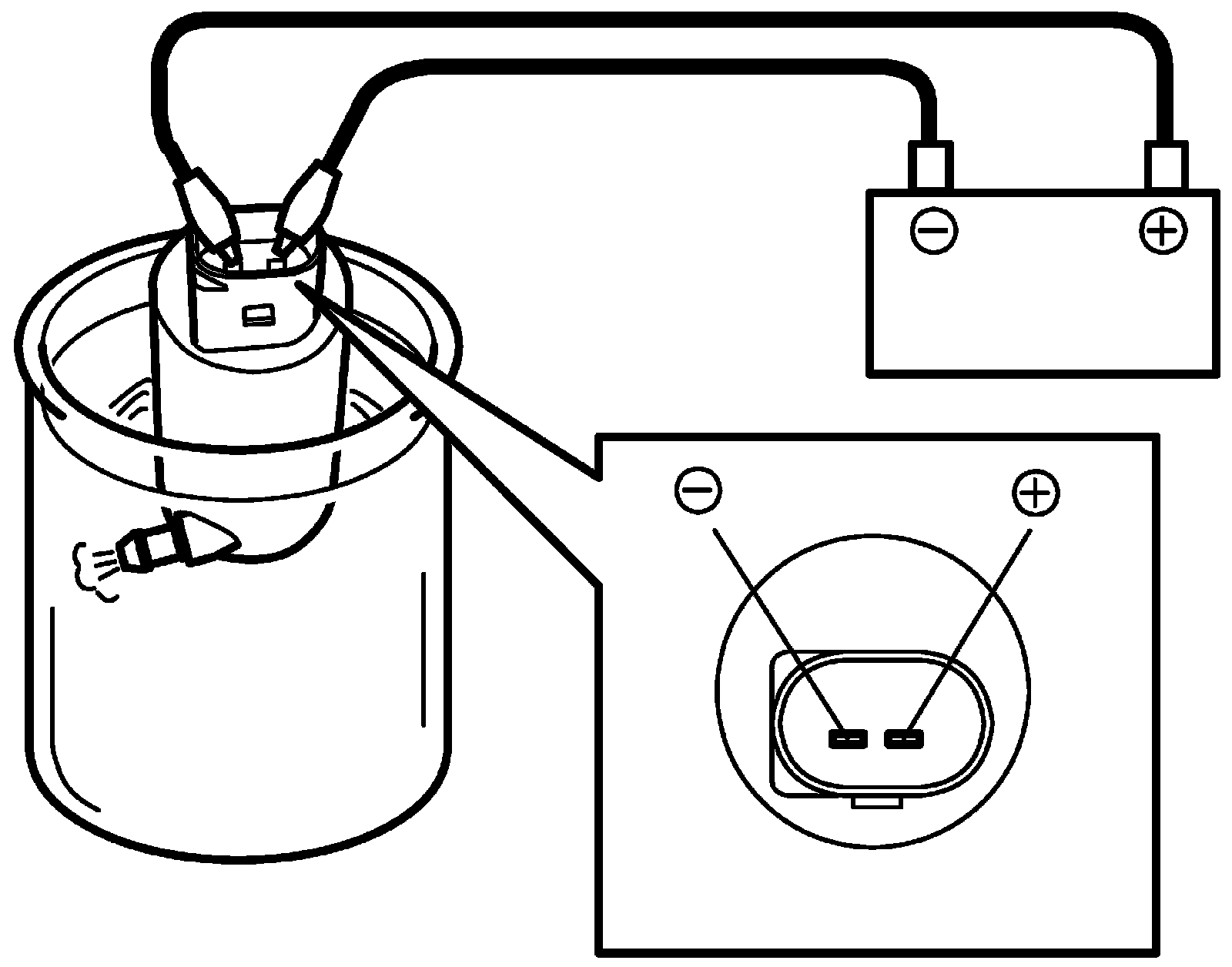

Connect battery positive (+) and negative (-) terminals to pump (+) and (-) terminals respectively.
2.
Check windshield and rear washer pumps for operation.
If pump does not operate, replace washer pump.
