Actuator, Differential Lock

Rear Wheel Drive Module Clutch (MH6)

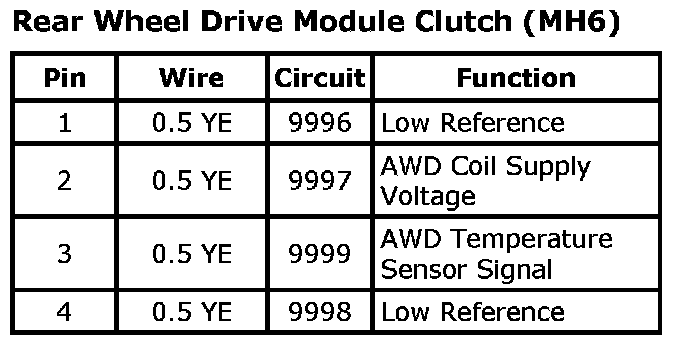

Rear Wheel Drive Module Clutch (MH6):






Connector Part Information
OEM:90980 10942
Service: -
Description: 4-Way F

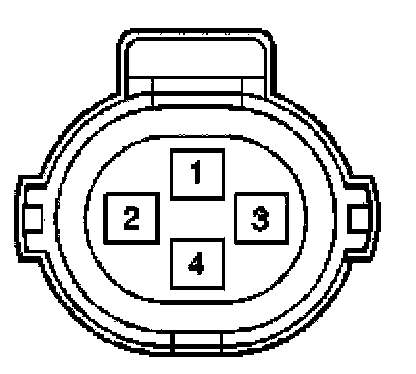

Rear Wheel Drive Module Clutch (MH6):
