Backup Lamp

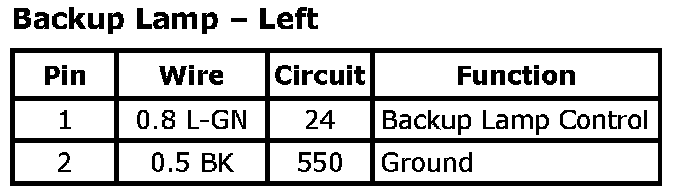

Backup Lamp - Left

Backup Lamp - Left:

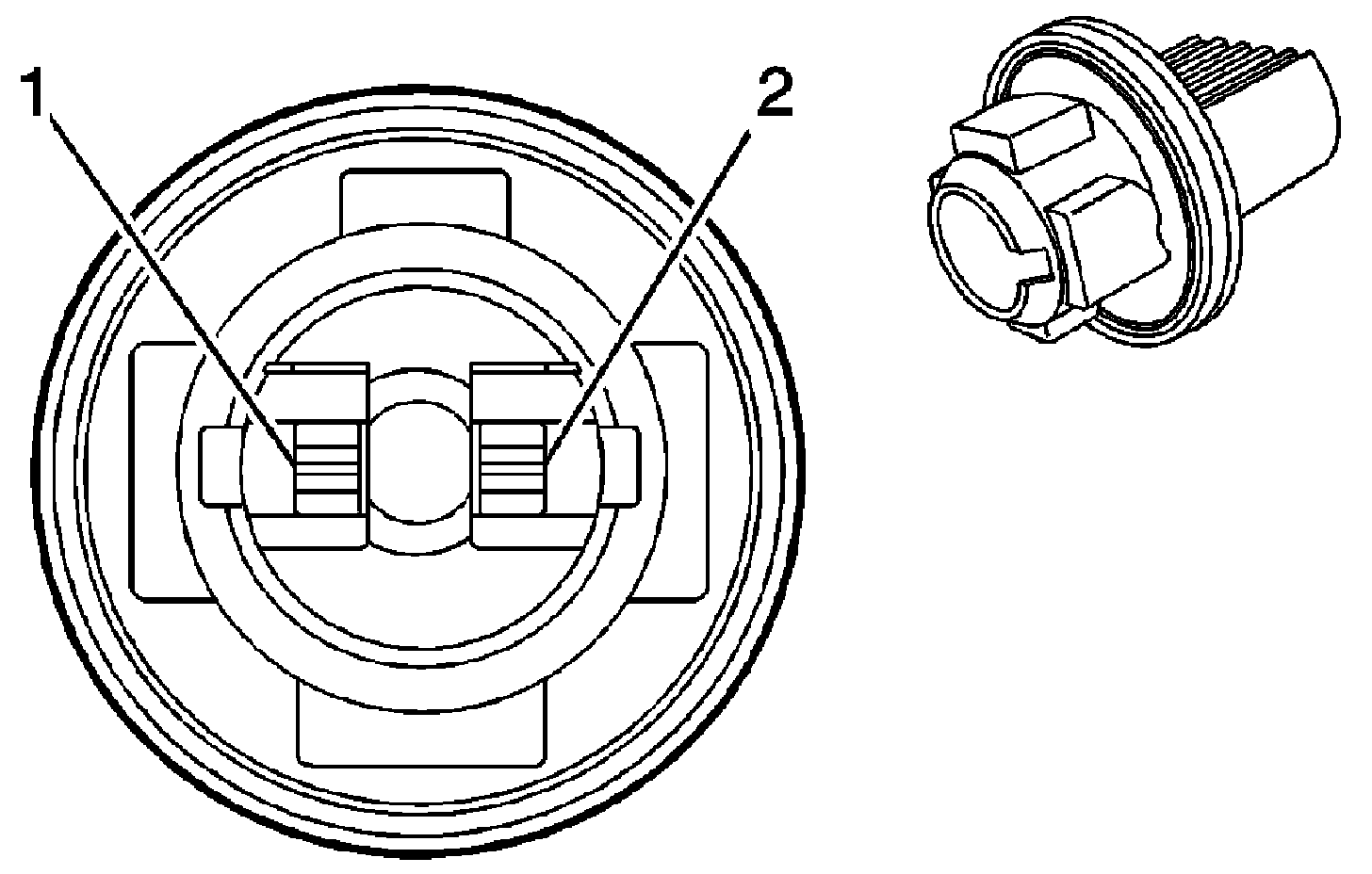

Connector Part Information
OEM: 10351681
Service: -
Description: 2-Way F Lamp Socket Sealed (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Backup Lamp - Left:

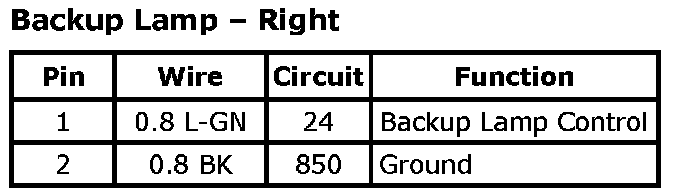

Backup Lamp - Right

Backup Lamp

Backup Lamp - Left:

Backup Lamp - Left:

Backup Lamp - Right:

Backup Lamp - Right:
