System Diagram

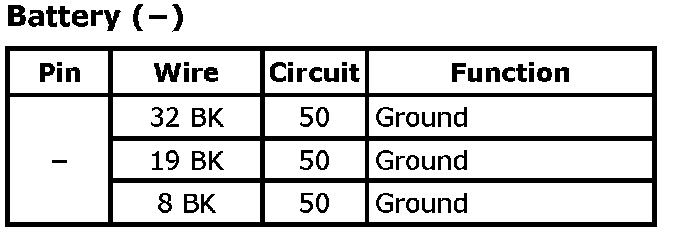

Battery (-)

Terminal Part Information
Terminal/Tray: 7106-2036
Core/Insulation Crimp: N/A
Description: Battery Terminal

Battery (-):

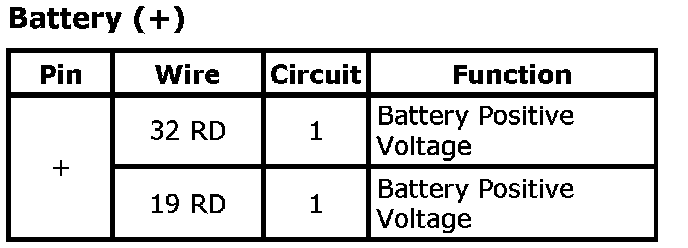

Battery (+)

Terminal Part Information
Terminal/Tray: 7106-2035
Core/Insulation Crimp: N/A
Description: Battery Terminal

Battery (+):
