Cargo Lamp

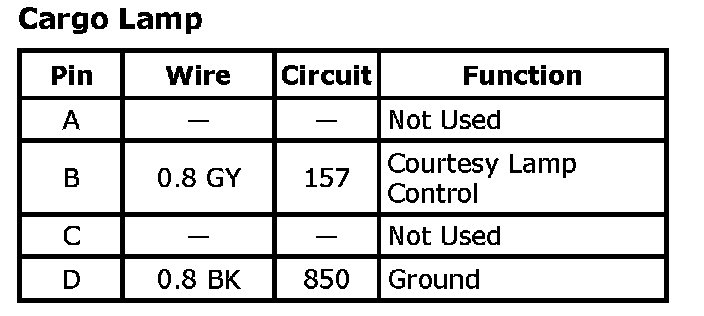

Cargo Lamp

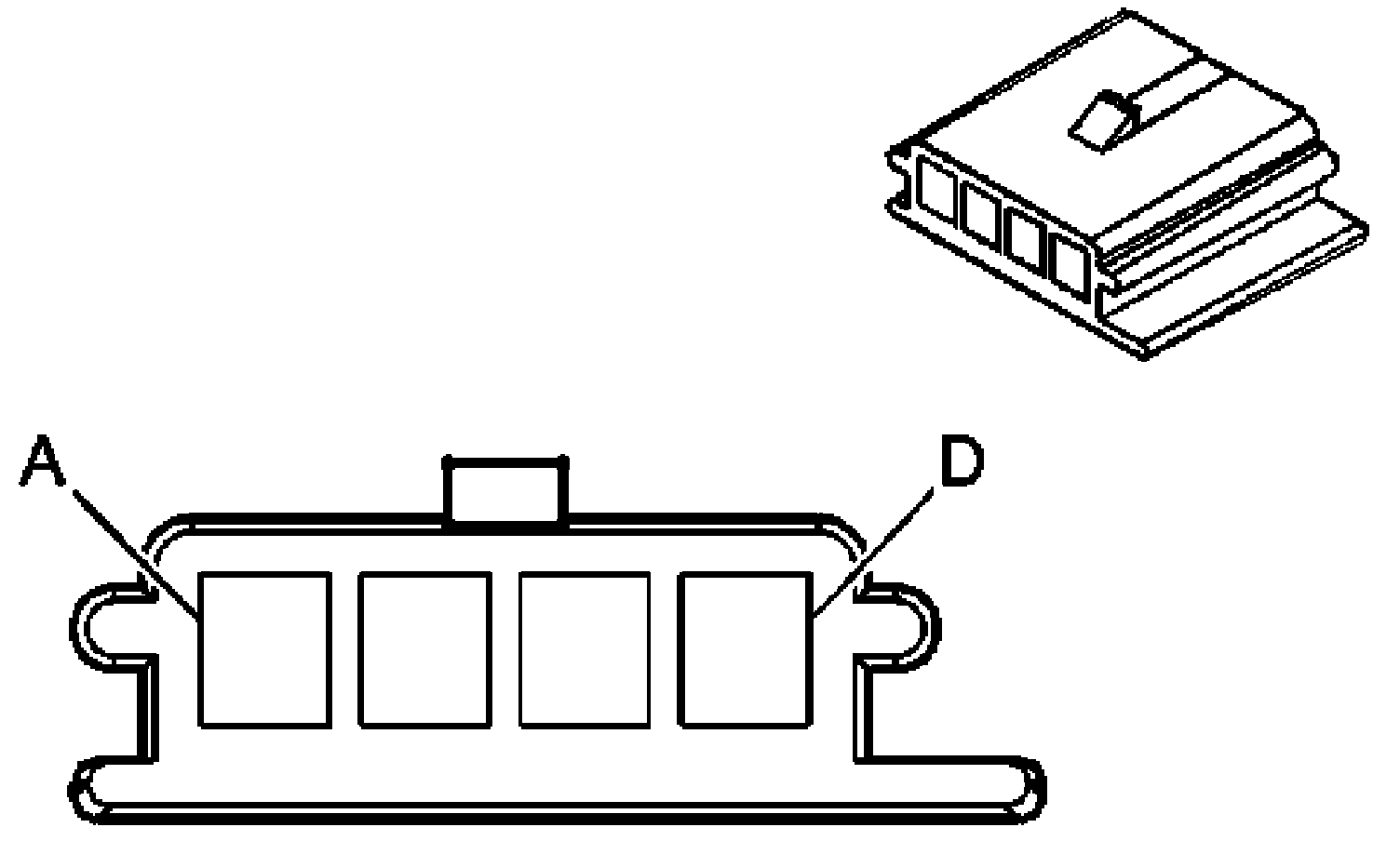

Cargo Lamp:

Connector Part Information
OEM: 12045813
Service: 12101889
Description: 4-Way F Metri-pack 150 Series (CM)

Cargo Lamp:
