Control Unit, Differential Lock

Rear Differential Clutch Control Module X1 (MH6)

Rear Differential Clutch Control Module X1 (MH6):

Connector Part Information
OEM: 89047383
Service: -
Description: 10-Way F 0.64 Sealed (BK)

Terminal Part Information
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616- 64B (L-BU)

Rear Differential Clutch Control Module X1 (MH6):

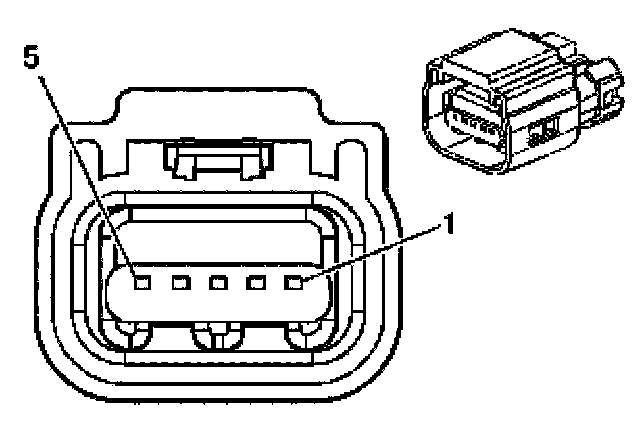

Rear Differential Clutch Control Module X2 (MH6)

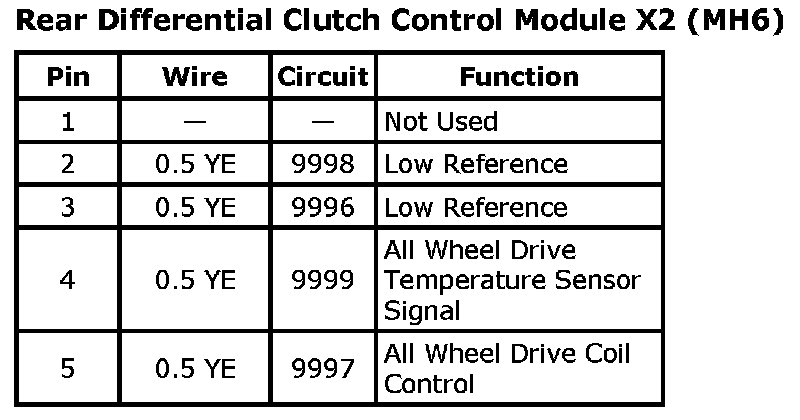

Rear Differential Clutch Control Module X2 (MH6):

Connector Part Information
OEM: 89047382
Service: -
Description: 5-Way F 0.64 (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
