Courtesy Lamp

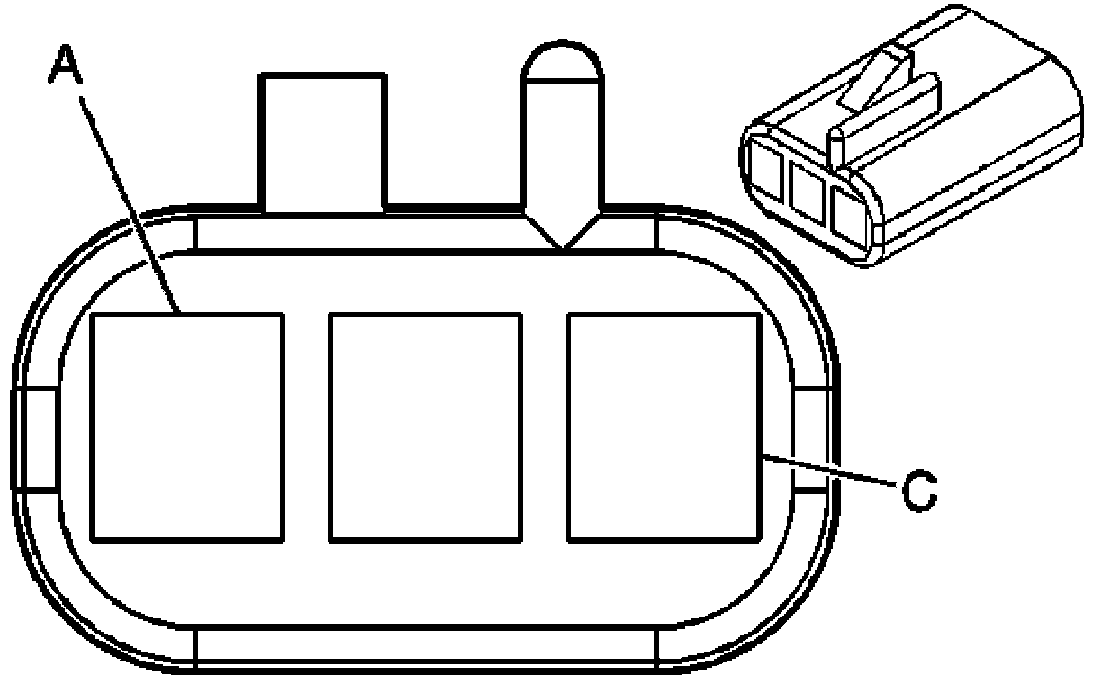

Courtesy/Map Lamp






Connector Part Information
OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-pack 150 Series (BK)

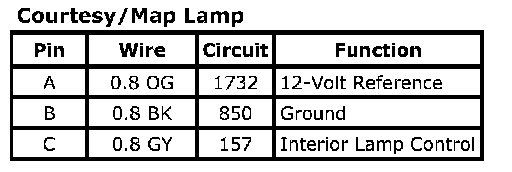

Courtesy/Map Lamp:
