Dome Lamp

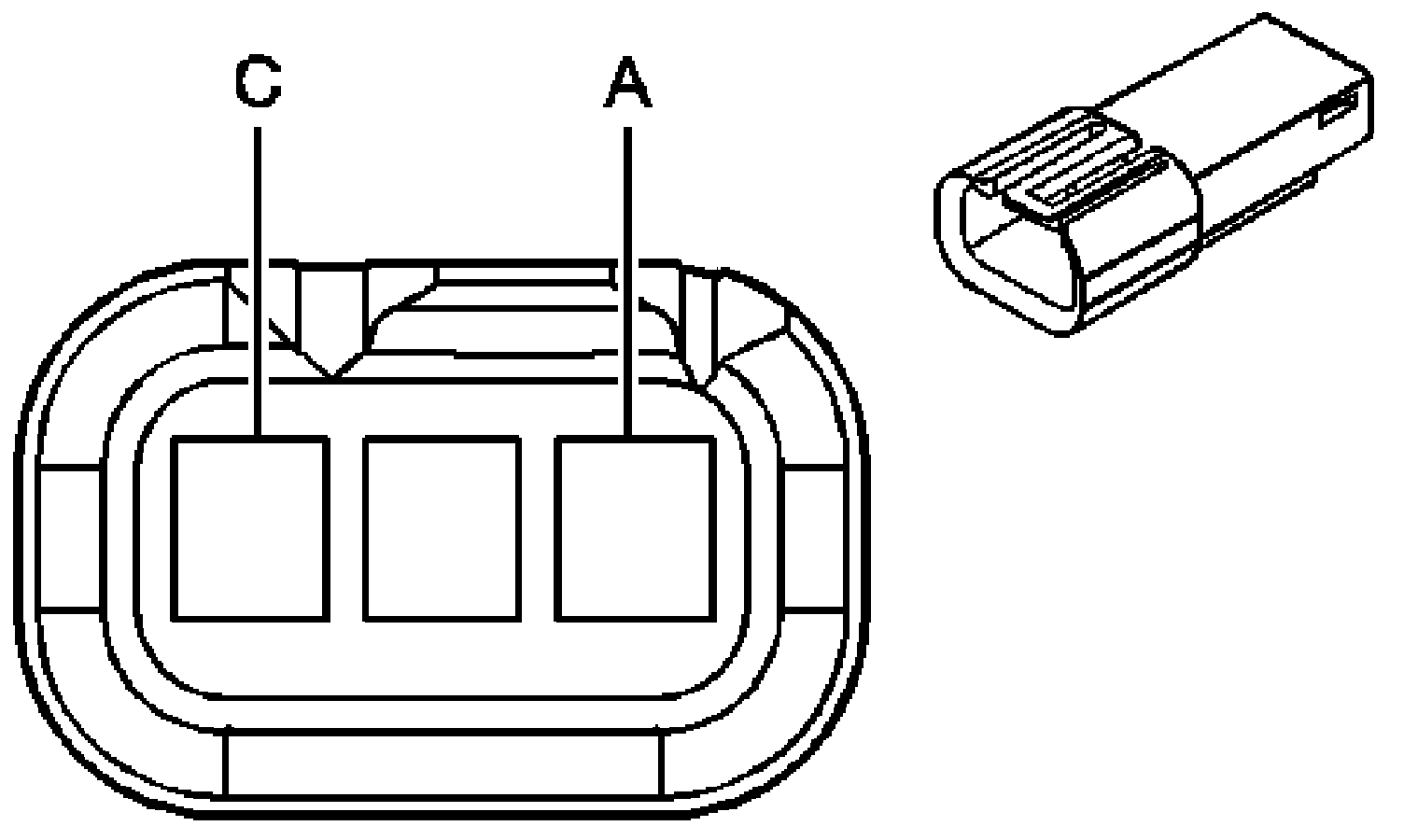

Dome Lamp (UUC)

Dome Lamp (UUC):

Connector Part Information
OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

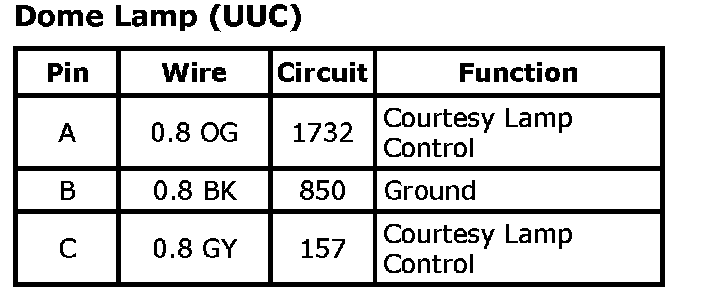

Dome Lamp (UUC):

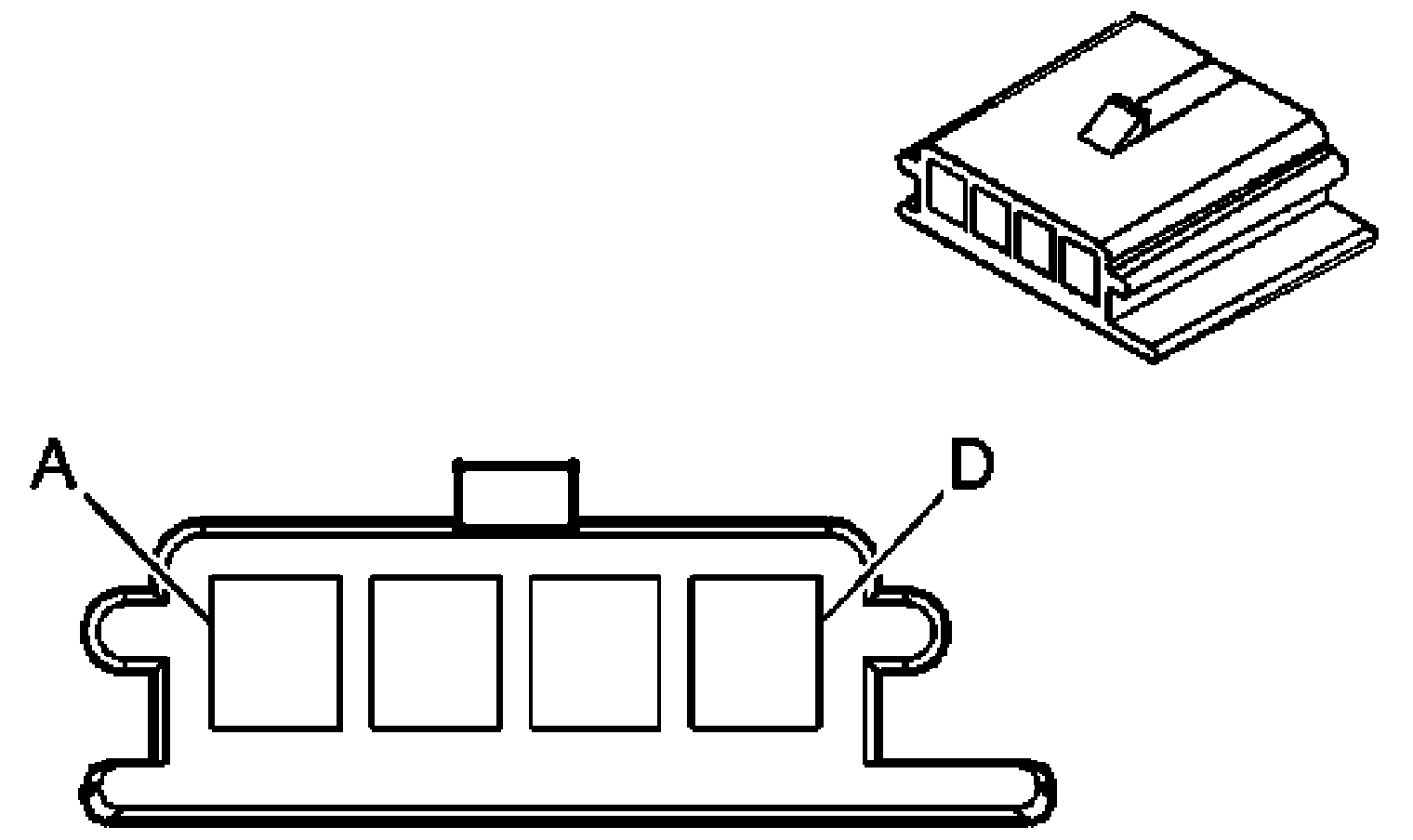

Dome Lamp (without UUC)

Dome Lamp (without UUC):

Connector Part Information
OEM: 12045813
Service: 12101889
Description: 4-Way F Metri-pack 150 Series (CM)

Dome Lamp (without UUC):

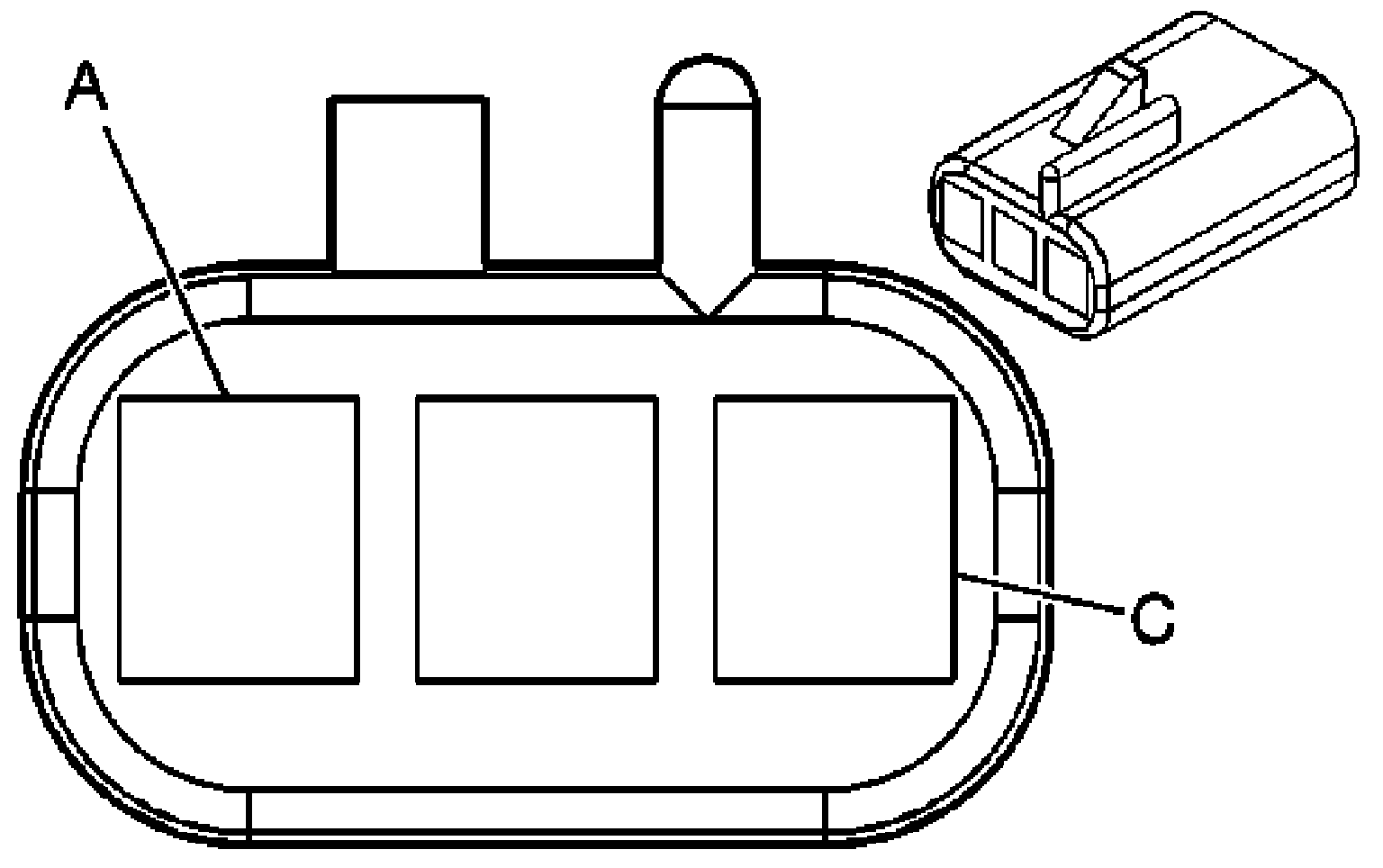

Dome Lamp Switch (UUC)

Dome Lamp Switch (UUC):

Connector Part Information
OEM: 12047782
Service: 12117371
Description: 3-Way M Metri-Pack 150 Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

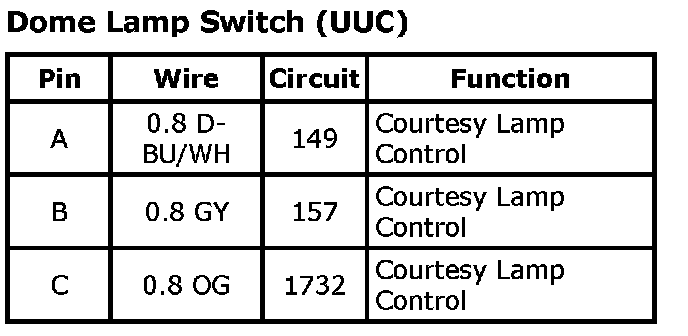

Dome Lamp Switch (UUC):
