System Diagram

Fog Lamp - Left Front (T96)

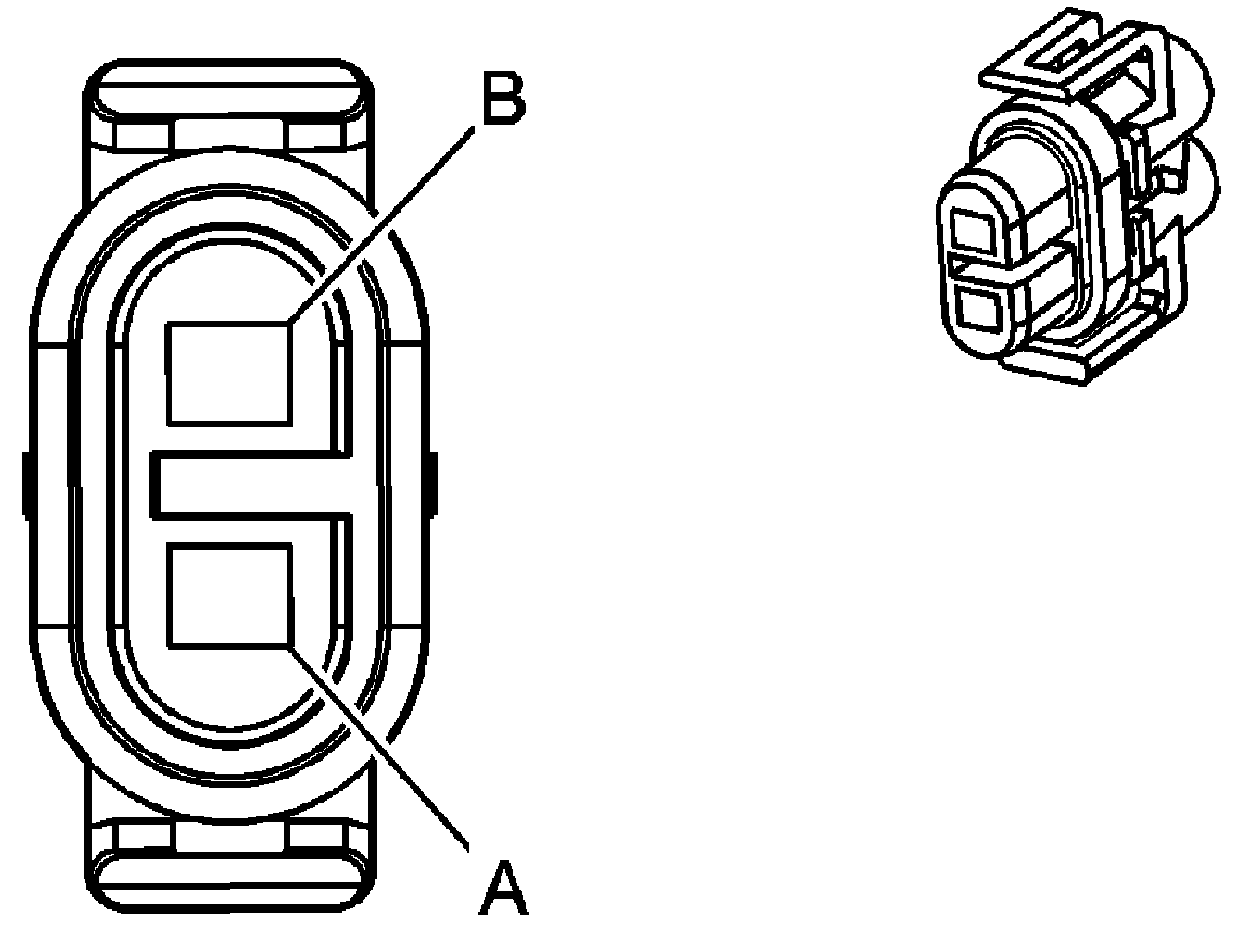

Fog Lamp - Left Front (T96):

Connector Part Information
OEM: 12124819
Service: 12085498
Description: 2-Way F Metri-Pack 280 Series (BK)

Terminal Part Information
Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Fog Lamp - Left Front (T96):

Fog Lamp - Right Front (T96)

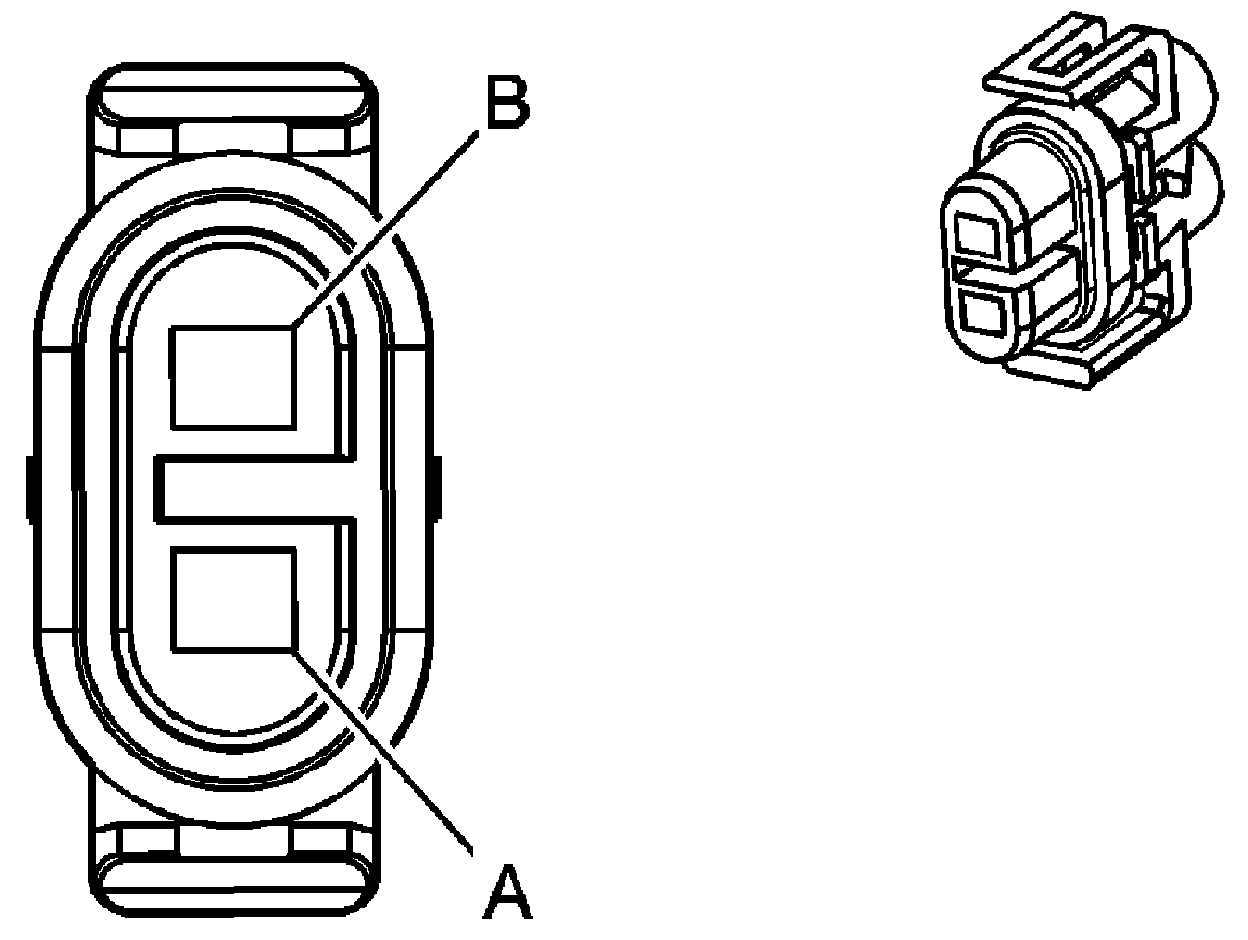

Fog Lamp - Right Front (T96):

Connector Part Information
OEM: 12124819
Service: 12085498
Description: 2-Way F Metri-Pack 280 Series (BK)

Terminal Part Information
Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Fog Lamp - Right Front (T96):
