System Diagram

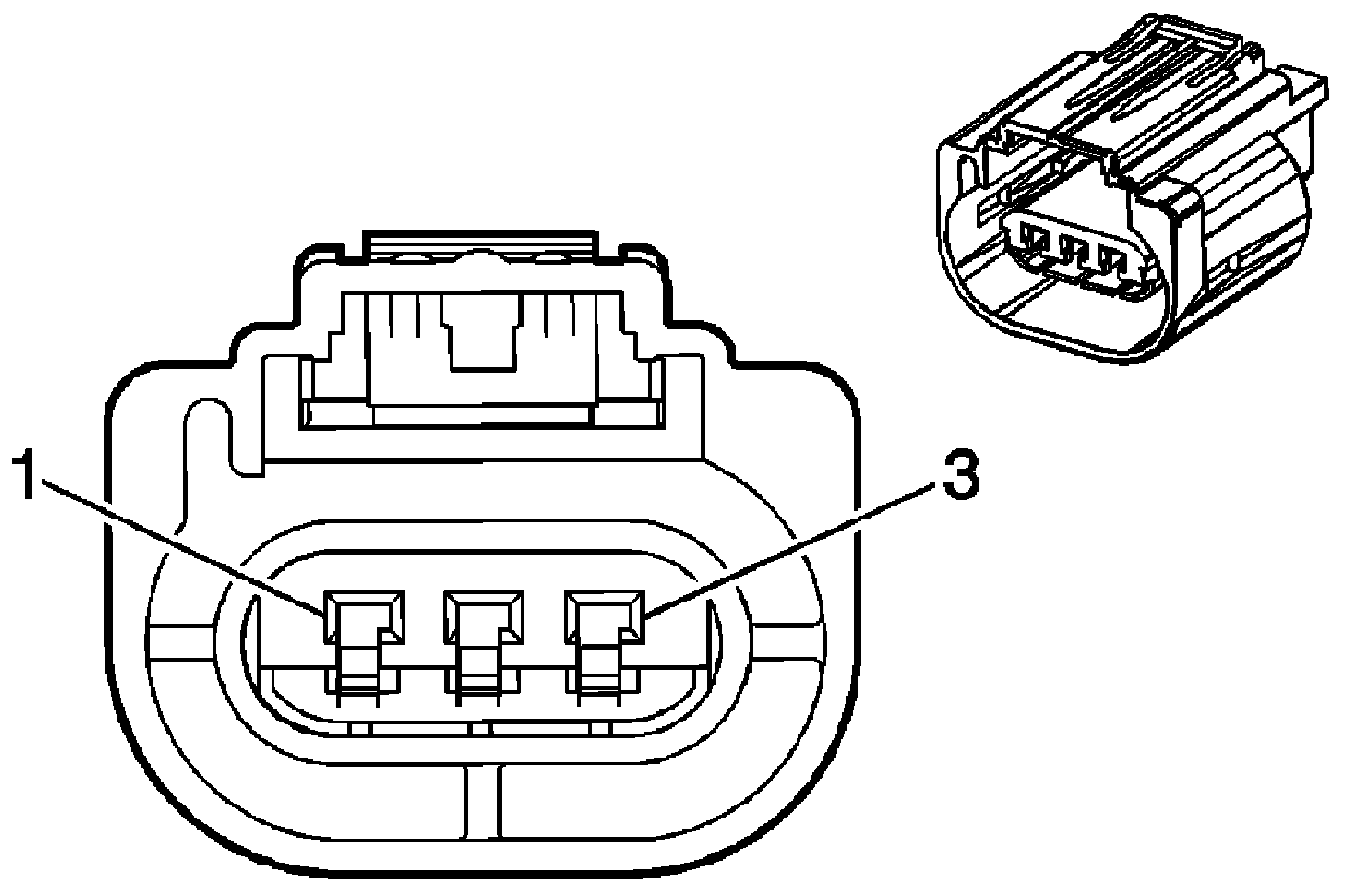

Headlamp - LeftHeadlamp - Left:
Connector Part Information
OEM: 15203303
Service: -
Description: 3-Way F Sealed (GN)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

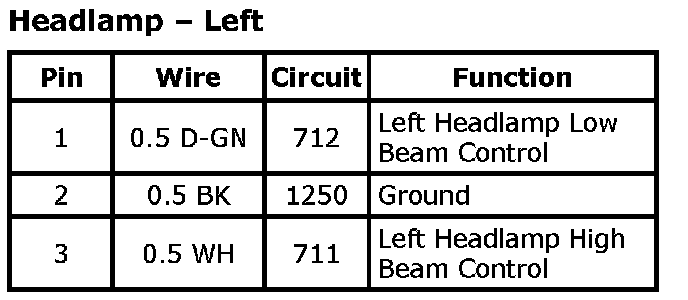

Headlamp - Left:
Headlamp - Right

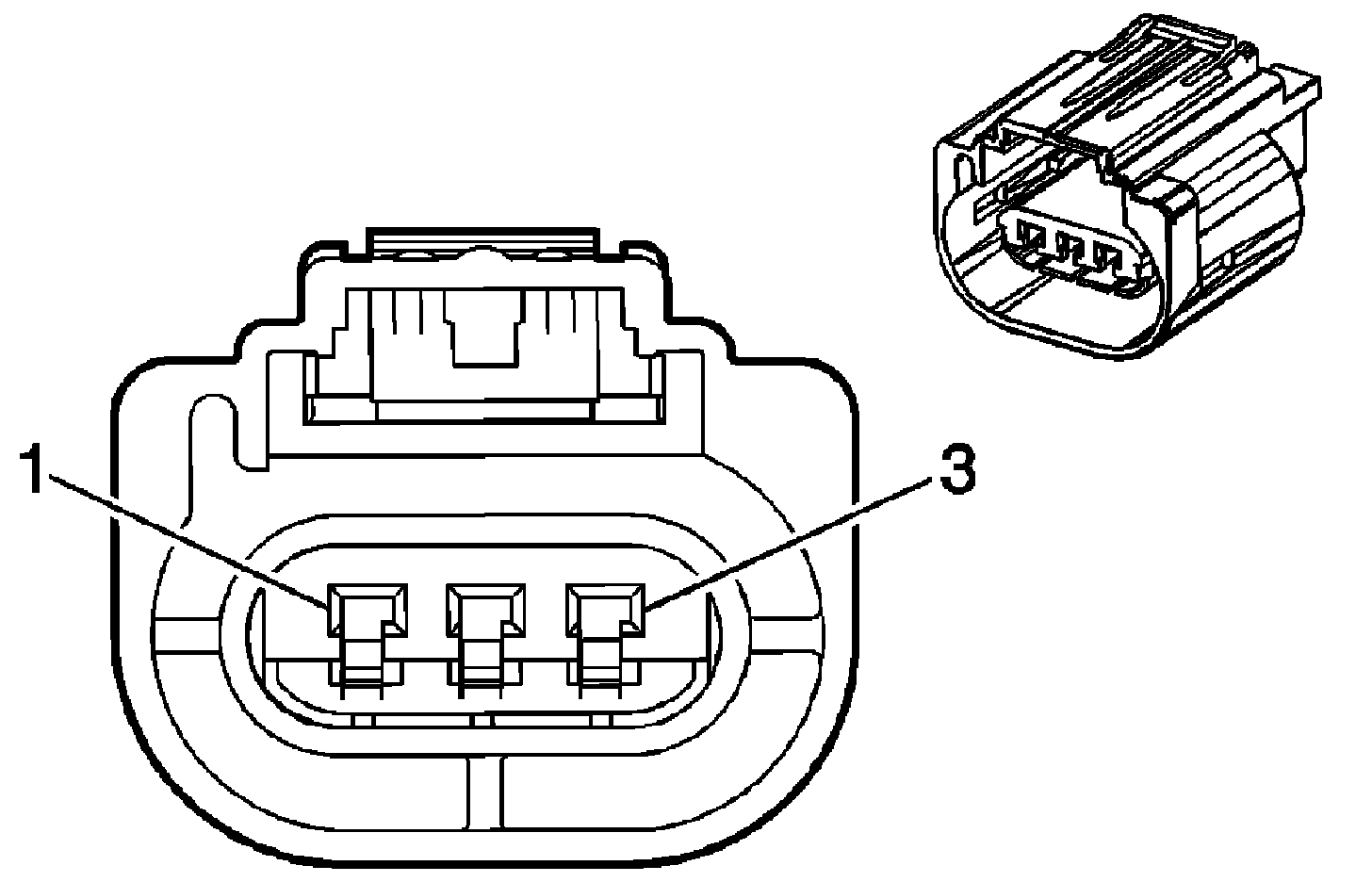

Headlamp - Right:
Connector Part Information
OEM: 15203303
Service: -
Description: 3-Way F Sealed (GN)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

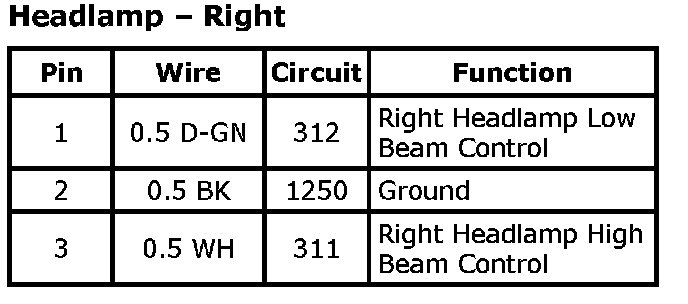

Headlamp - Right:
