Heated Glass Element

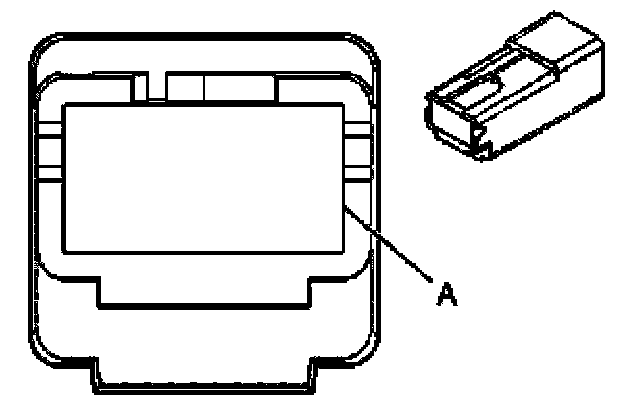

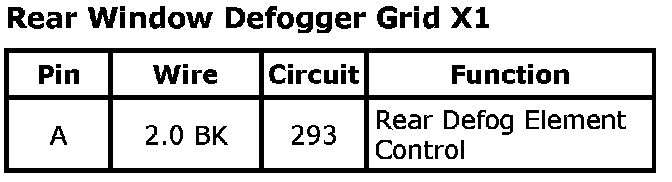

Rear Window Defogger Grid X1

Rear Window Defogger Grid X1:

Connector Part Information
OEM: 7123-5014-30
Service: 88988465
Description: 1-Way F (BK)

Terminal Part Information
Terminal/Tray: 7116-2951-02/27
Core/Insulation Crimp: C/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Rear Window Defogger Grid X1:

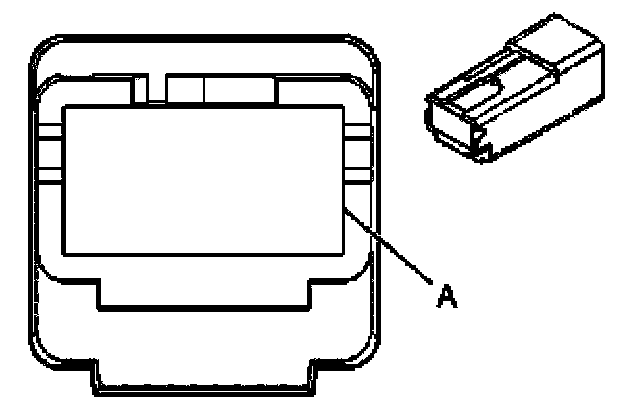

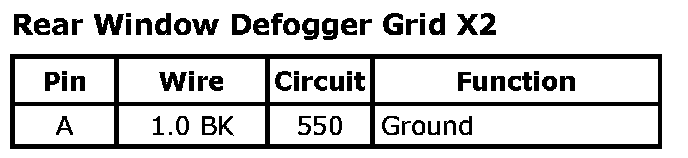

Rear Window Defogger Grid X2

Rear Window Defogger Grid X2:

Connector Part Information
OEM: 7123-5014-30
Service: 88988465
Description: 1-Way F (BK)

Terminal Part Information
Terminal/Tray: 7116-2951-02/27
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Rear Window Defogger Grid X2:
