HVAC Control Module X1

HVAC Control Module X1

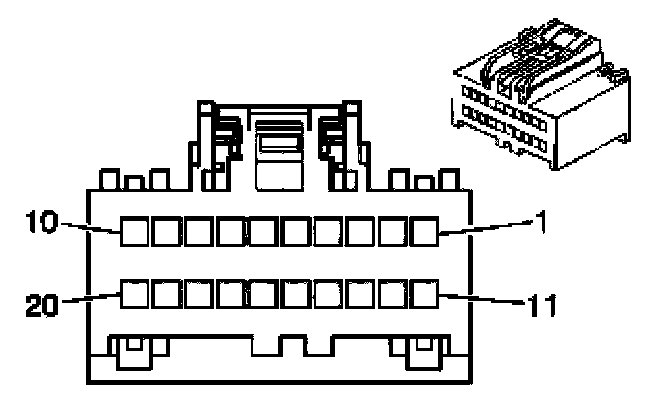

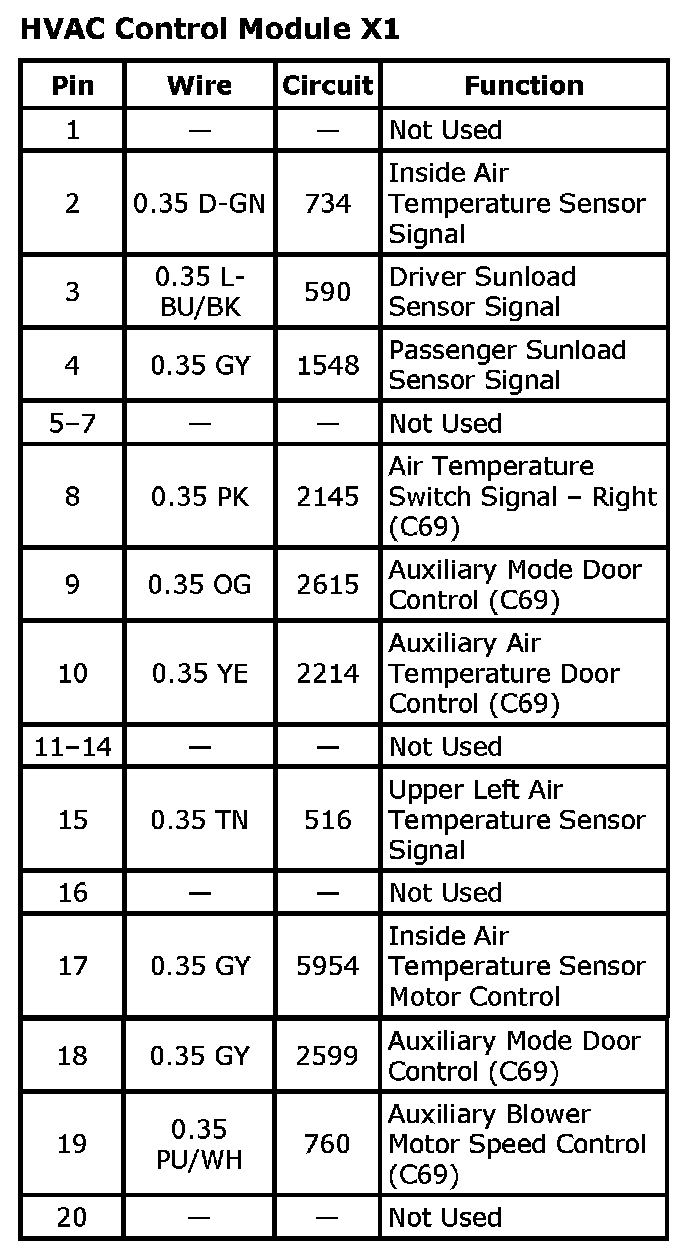

HVAC Control Module X1:

Connector Part Information
OEM: 15126709
Service: -
Description: 20-Way F Receptacle 0.64 Unsealed (BN)

Terminal Part Information
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616- 64B (L-BU)
