Power Door Lock Switch

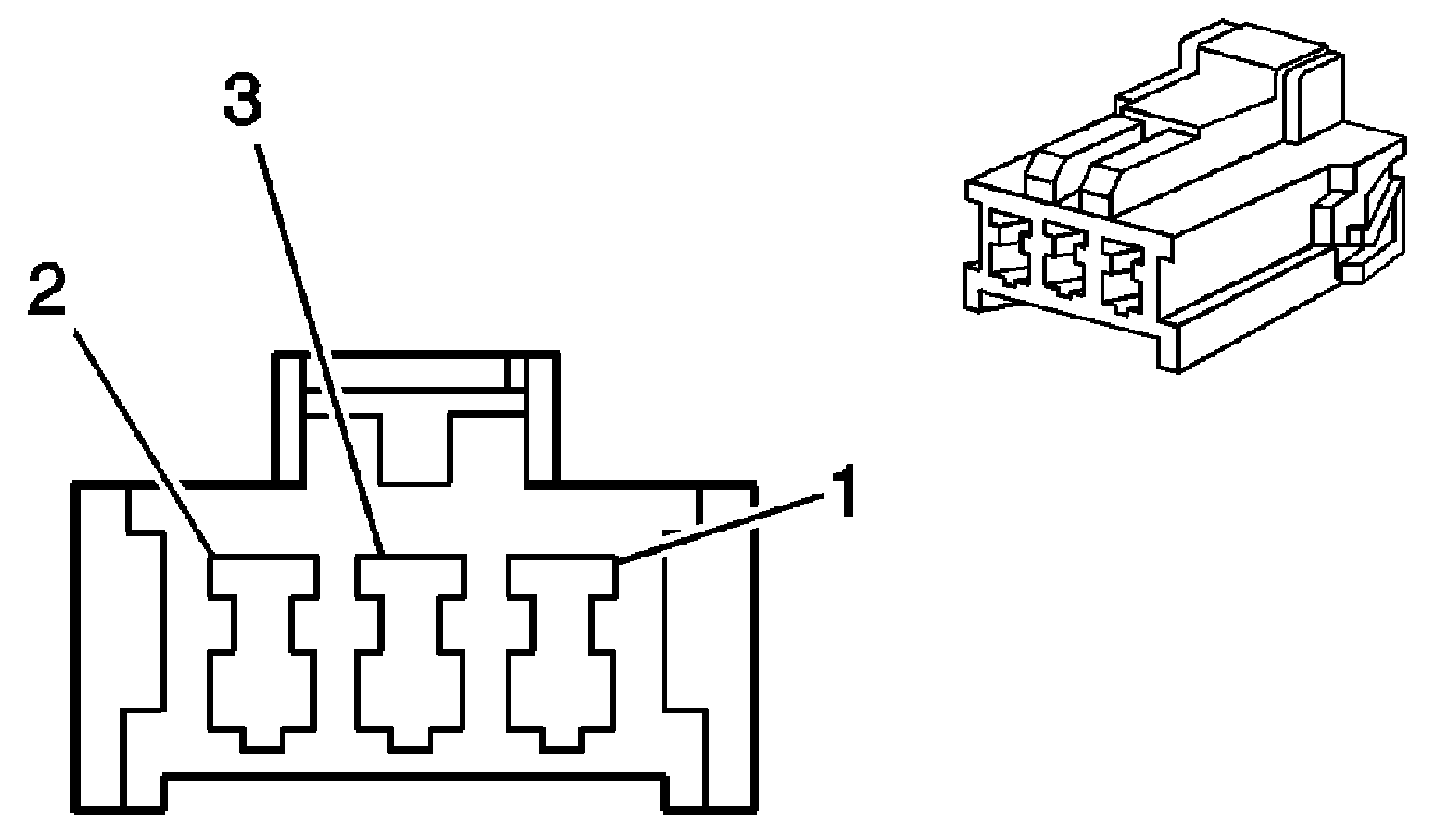

Door Lock Switch - DriverDoor Lock Switch - Driver:
Connector Part Information
OEM: 6098-0241
Service: -
Description: 3-Way F HD 090 Series (L-GY)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
Door Lock Switch - Driver:

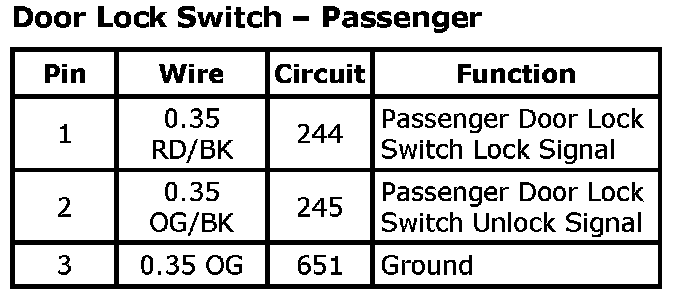

Door Lock Switch - Passenger
Door Lock Switch - Passenger:
Connector Part Information
OEM: 6098-0241
Service: -
Description: 3-Way F HD 090 Series (L-GY)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
Door Lock Switch - Passenger:
