Steering Mounted Controls Transmitter

Steering Wheel Control Switch - Left (K34)

Steering Wheel Control Switch - Left (K34):






Connector Part Information
OEM: 30700-1100
Service: -
Description: 10-Way F HDAC64 DR Series (GY)

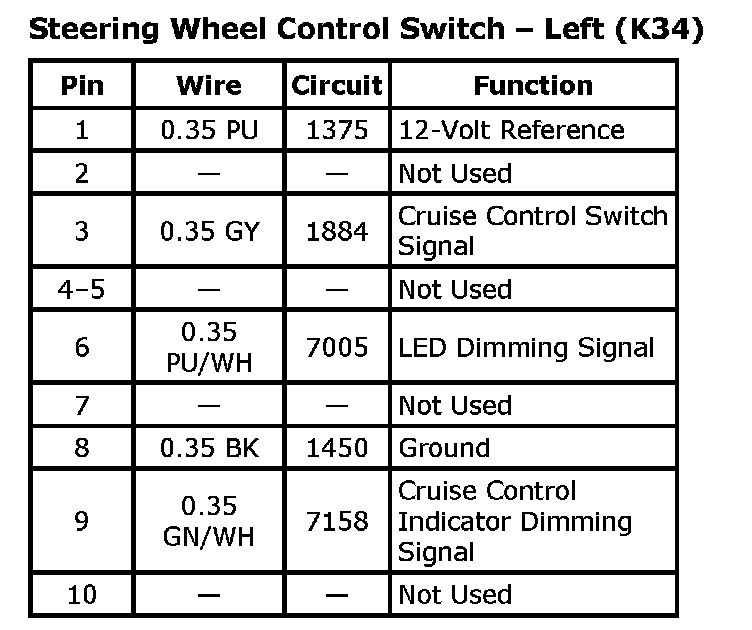

Steering Wheel Control Switch - Left (K34):






Steering Wheel Control Switch - Right (UK3)

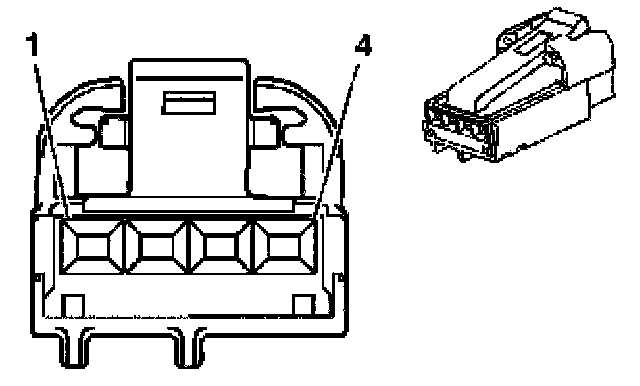

Steering Wheel Control Switch - Right (UK3):






Connector Part Information
OEM: 31068-1010
Service: -
Description: 4-Way F HDAC64 SR Housing (BK)

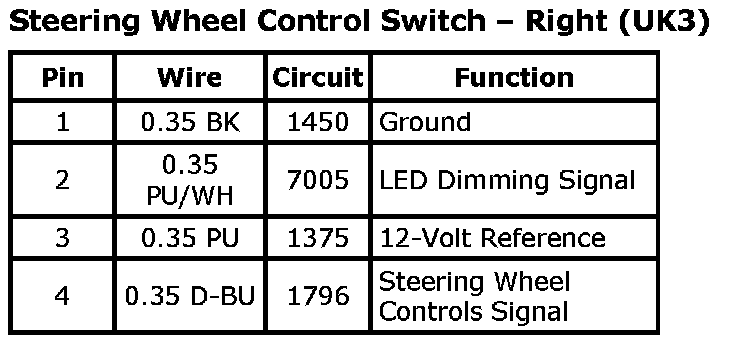

Steering Wheel Control Switch - Right (UK3):
