Home
>>
Suzuki
>>
2009
>>
XL-7 4WD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

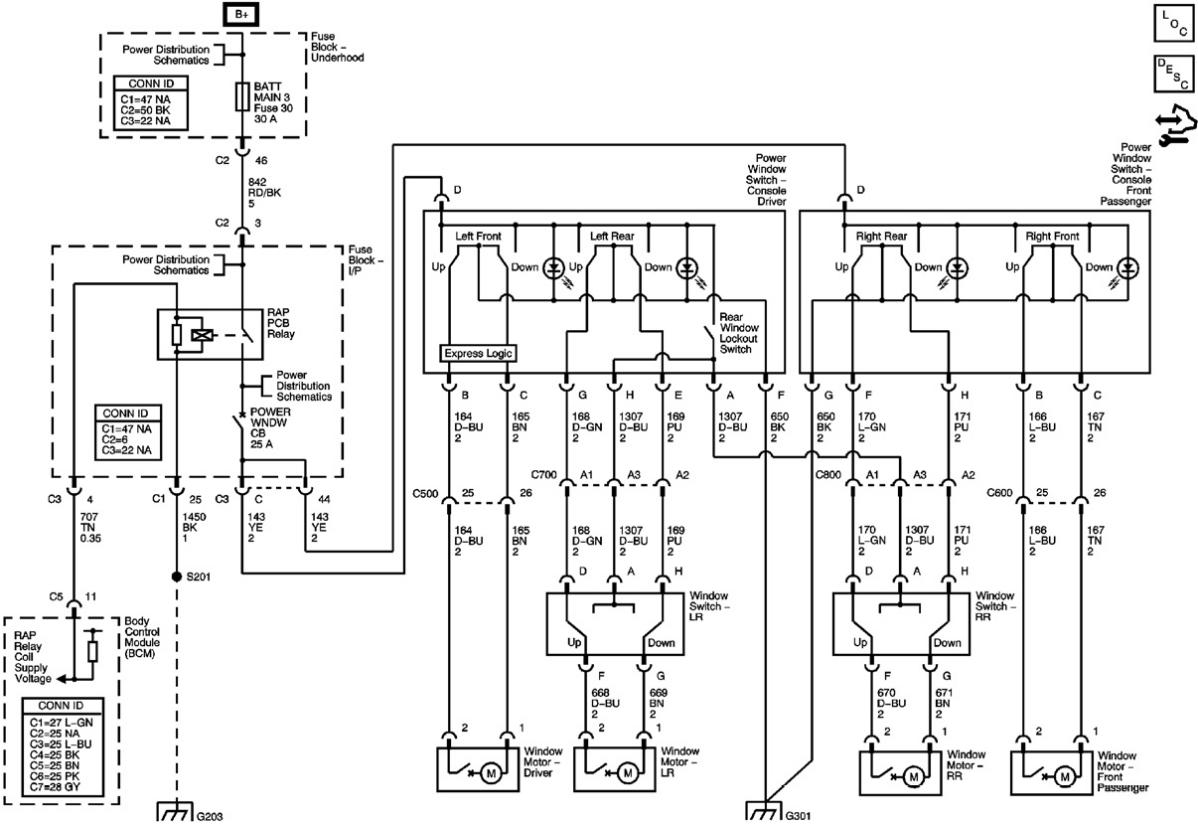

Moveable Window Schematics:
