HVAC Control Module X4

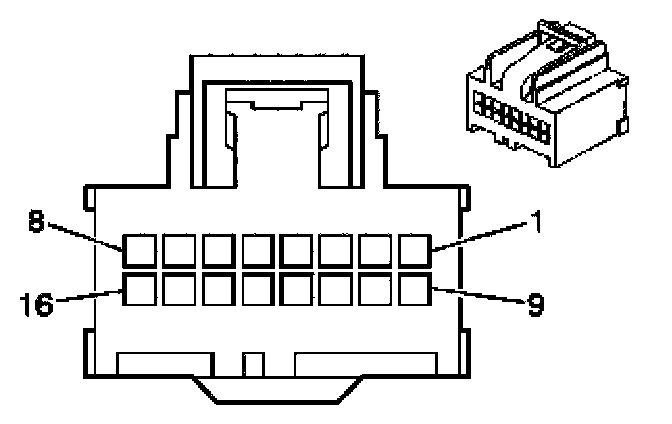

HVAC Control Module X4 (C69)

HVAC Control Module X4 (C69):

Connector Part Information
OEM: 7283-9079-60
Service: -
Description: 16-Way F 064 Series Unsealed (GN)

Terminal Part Information
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616- 64B (L-BU)
