Auxiliary Heater and Air Conditioning Control Replacement

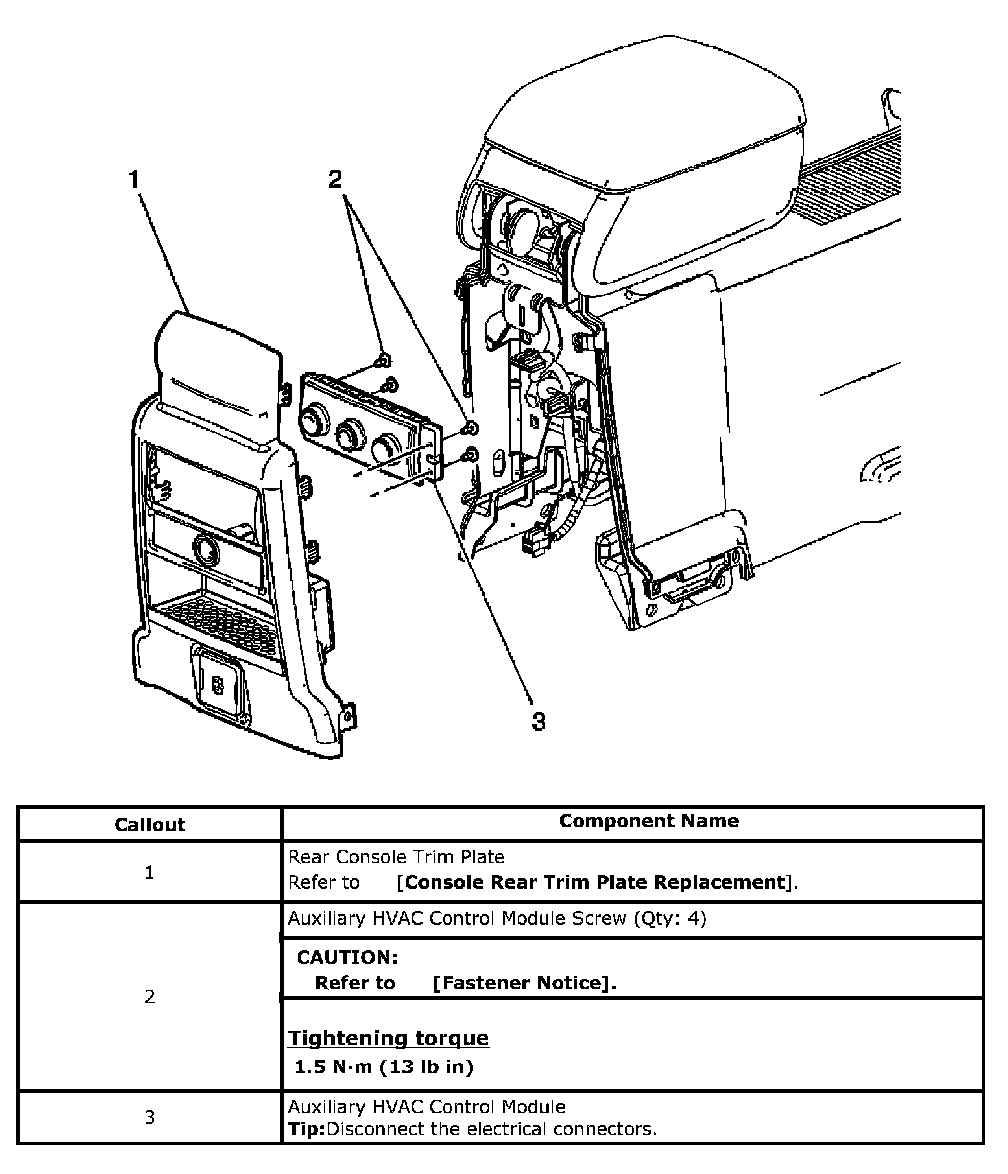

Auxiliary Heater and Air Conditioning Control Replacement:
