Service Port HVAC: Service and Repair
Air Conditioning Refrigerant Service Valve Core ReplacementSpecial Tool
J 39400-A Halogen Leak Detector
J 46246 Valve Core Removal Tool
Removal Procedure
1. Recover the refrigerant. Refer to [Refrigerant Recovery and Recharging]. Refrigerant Recovery and Recharging

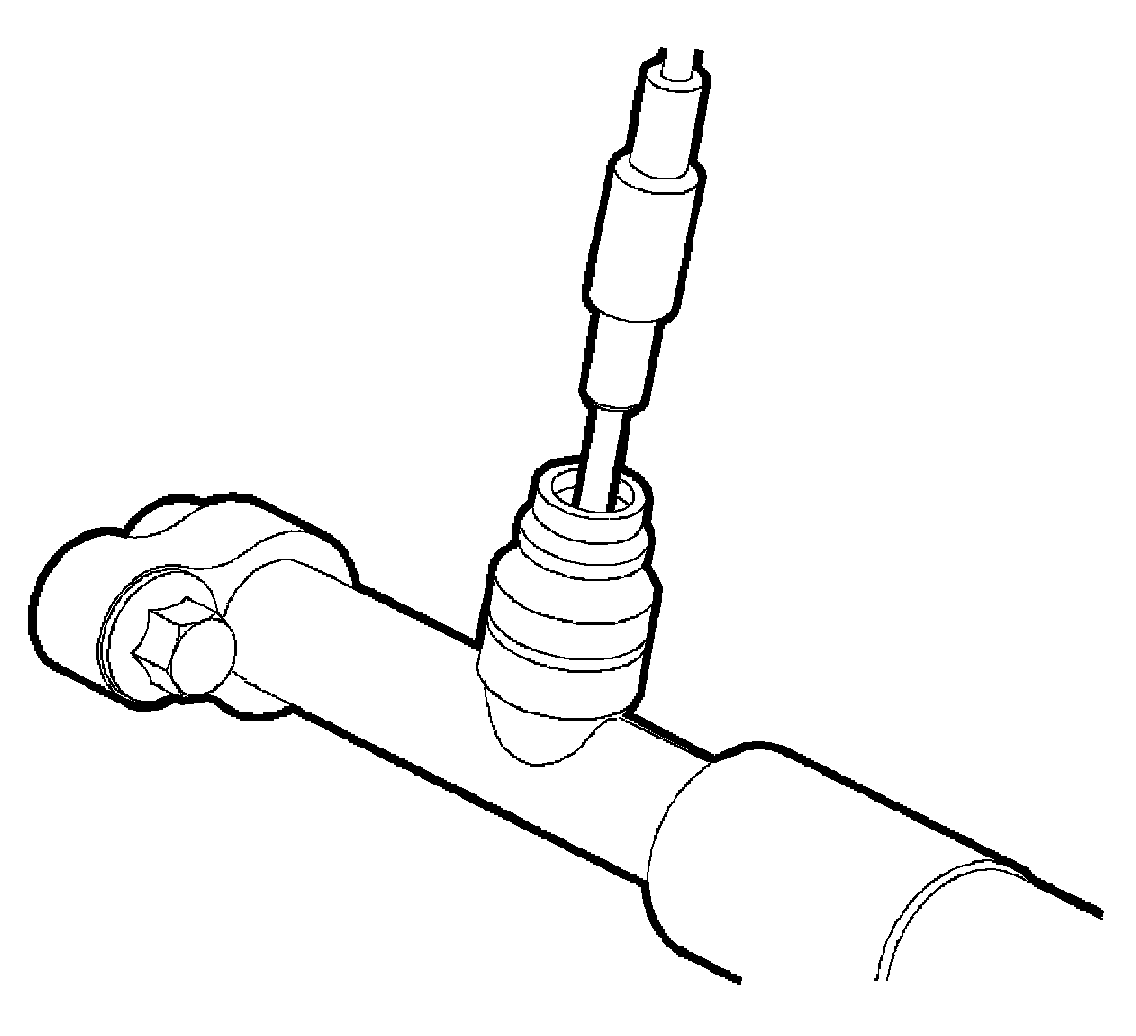

2. Use J 46246 or equivalent to remove the valve core.
Installation Procedure
1. Use J 46246 or equivalent to install and tighten the valve core.
2. Evacuate and charge the A/C system. Refer to [Refrigerant Recovery and Recharging]. Refrigerant Recovery and Recharging
NOTE: To prevent loss of refrigerant charge, tighten the cap. Replace the cap if the seal is missing or damaged.
3. Test the affected A/C fittings for leaks using J 39400-A.
