XL-7 4WD V6-3.6L
>>
Repair and Diagnosis
>>
Locations
>>
Instrument Panel Views
Instrument Panel Views

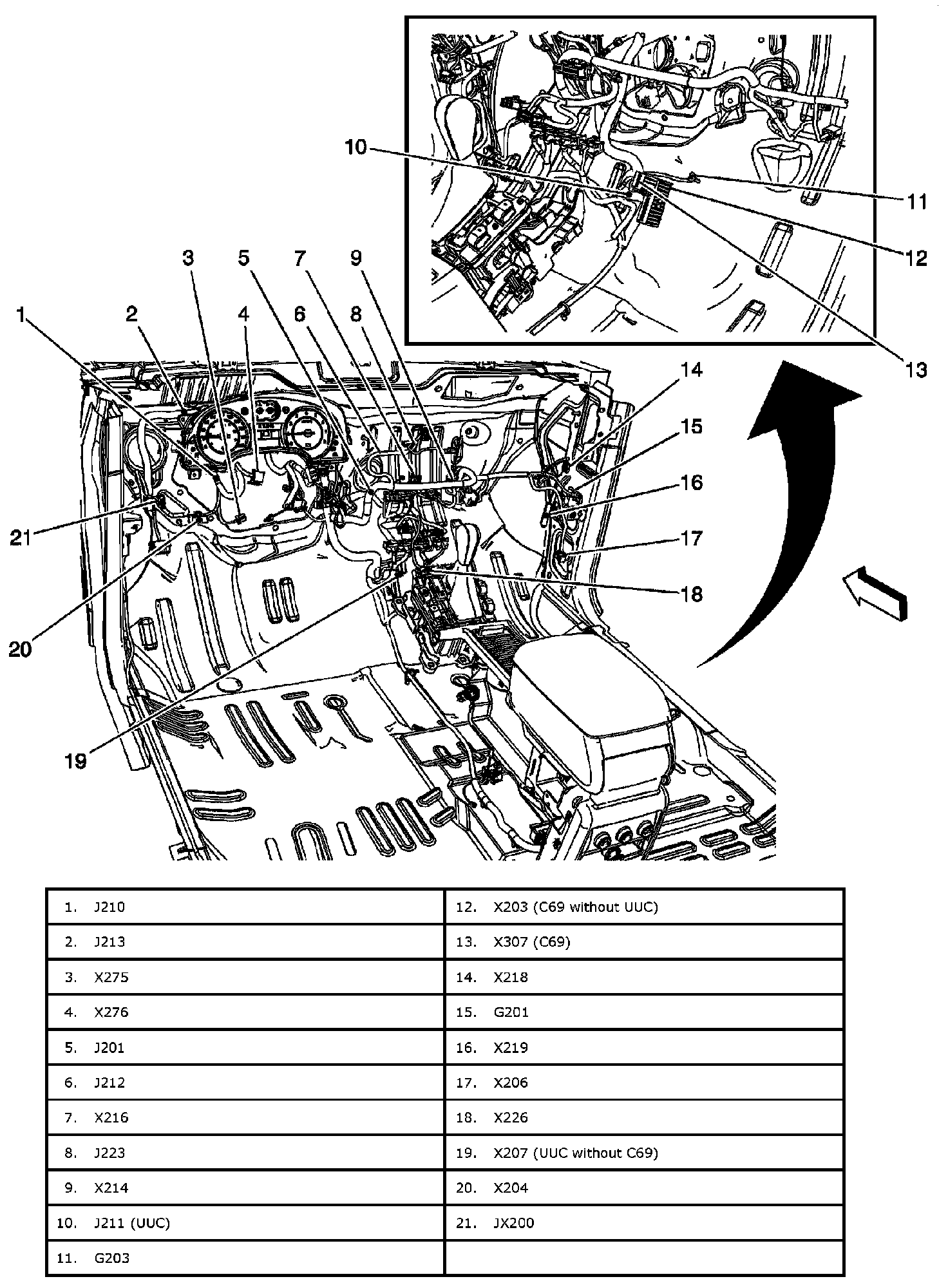

Instrument Panel Harness:
