Power Moding Schematics

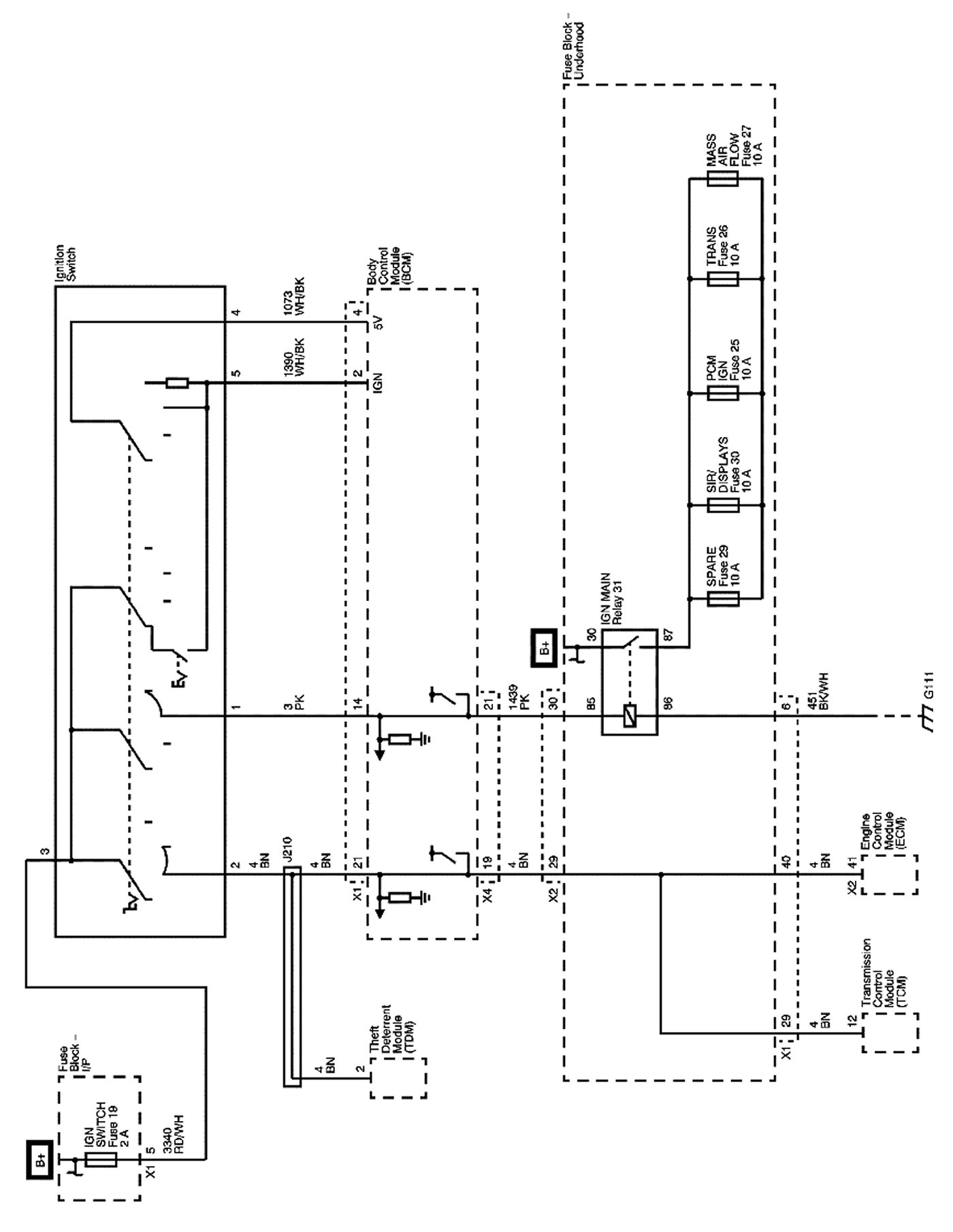

Power Moding SchematicsIgnition Switch and IGN MAIN Relay

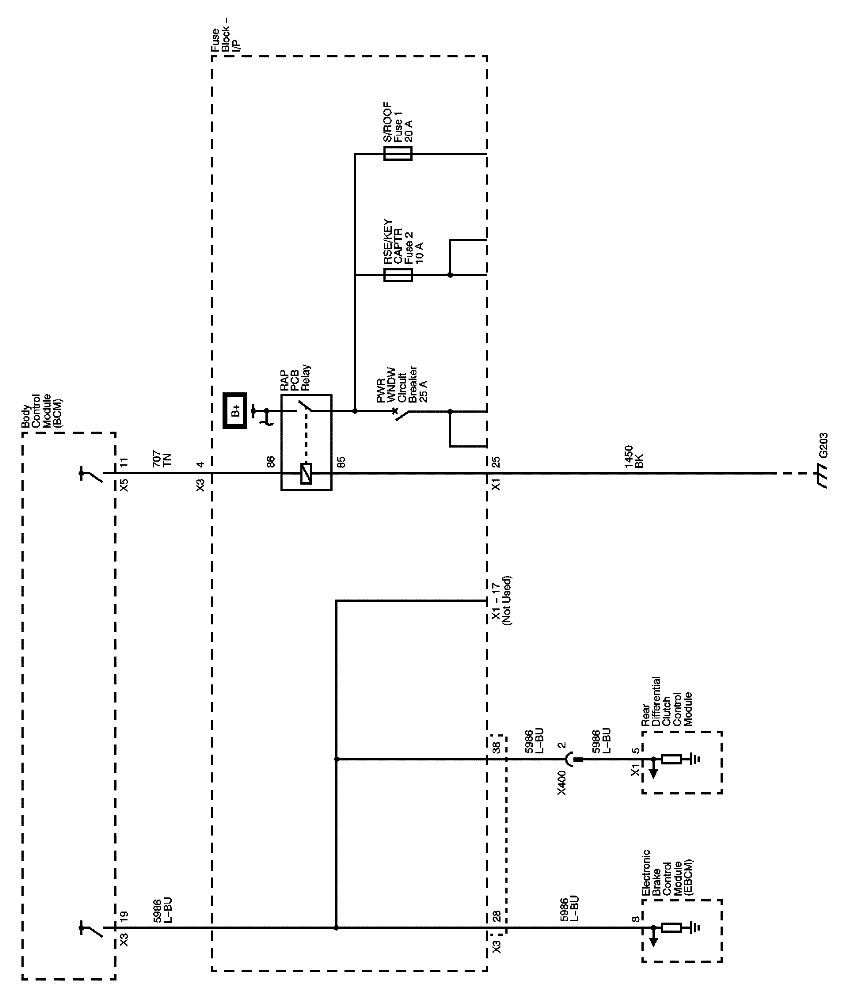

Retained Accessory Power Relay and Serial Data Communication Enable
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
