Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2009
>>
XL-7 4WD V6-3.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Relay
>>
Locations
Power Distribution Relay: Locations

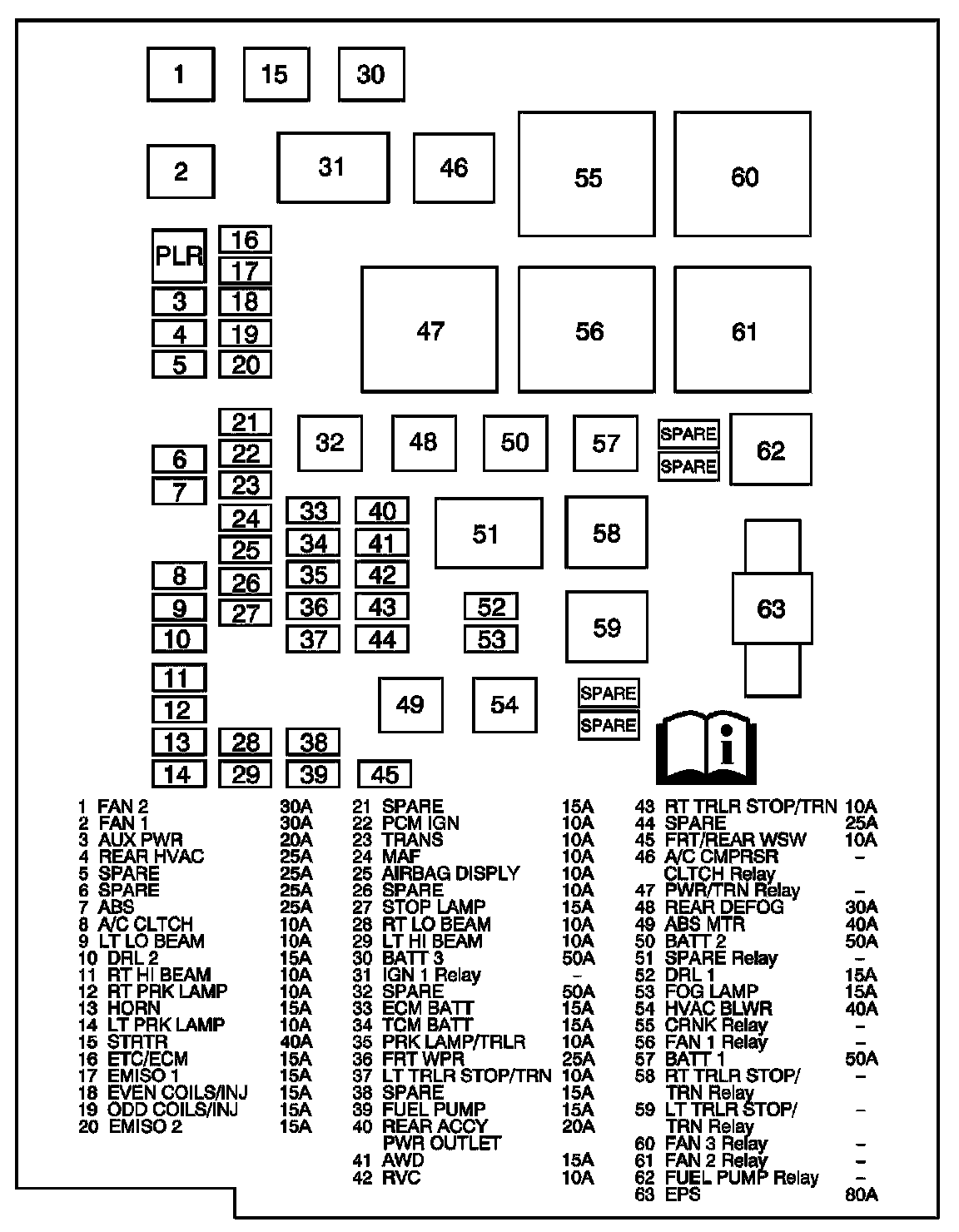

Fuse Block - Underhood Label
Fuse Block - Underhood Label:
