Sunroof / Moonroof Module: Diagrams

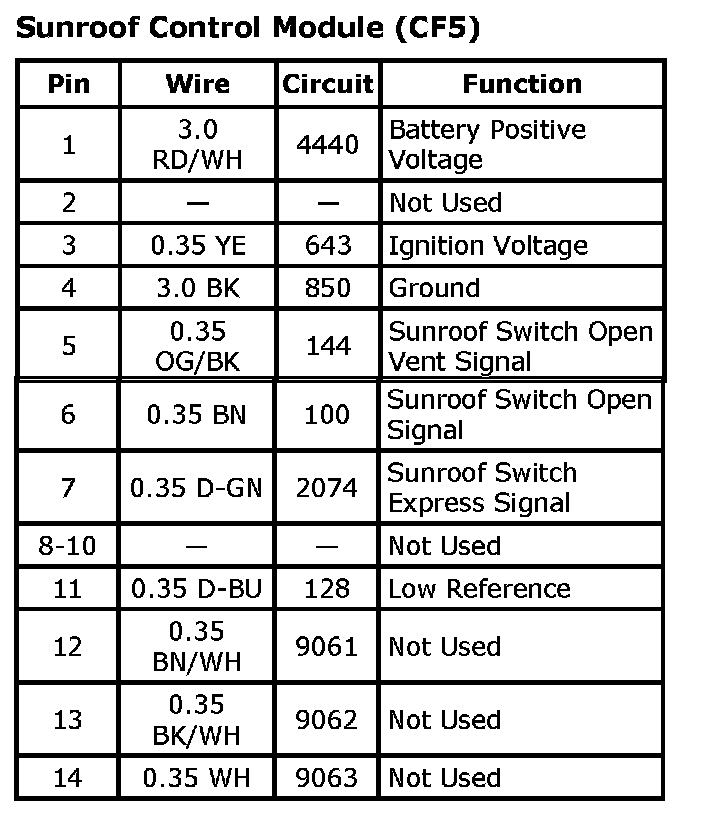

Sunroof Control Module (CF5)

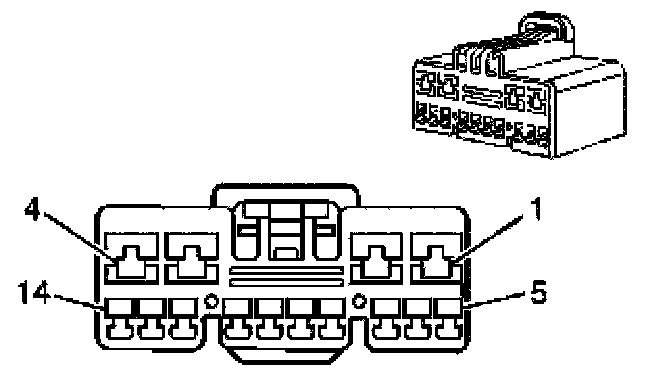

Sunroof Control Module (CF5):

Connector Part Information
OEM: 7283-8398-40
Service: -
Description: 14-Way F 64 2.8 YESC Series (L-GY)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
