Home >> Suzuki >> 2009 >> XL-7 4WD V6-3.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Torques and Sequences

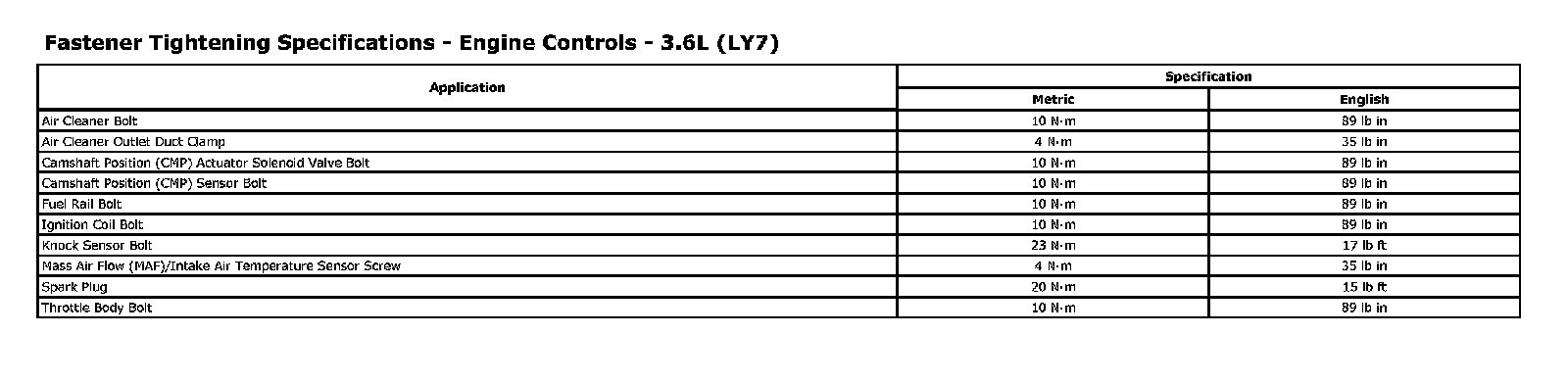

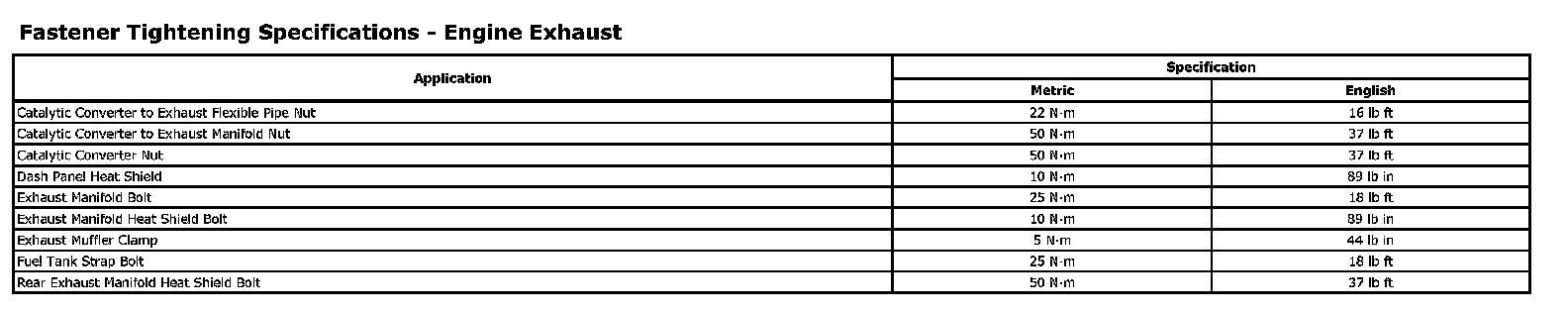

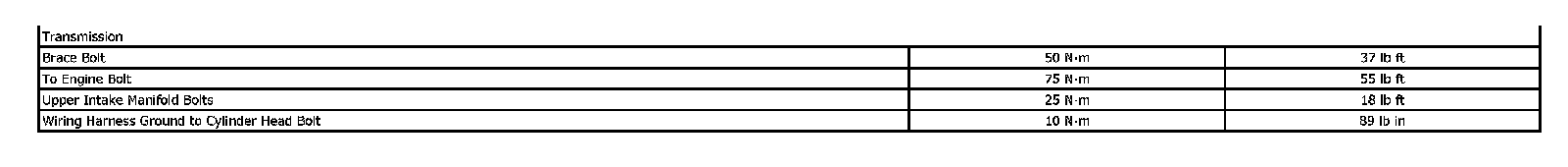

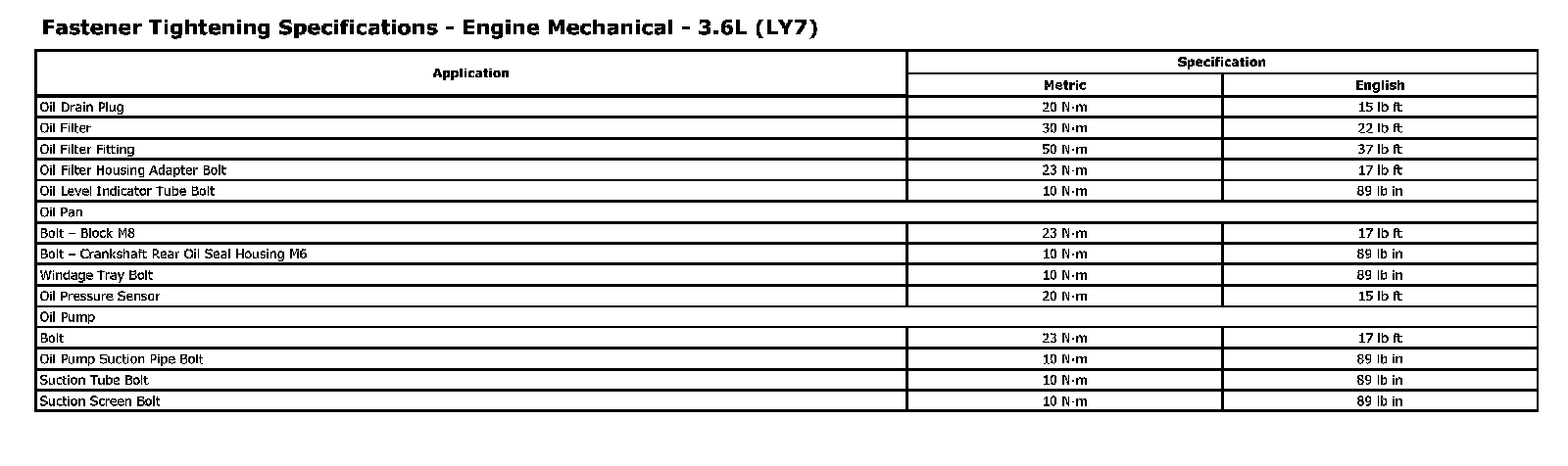

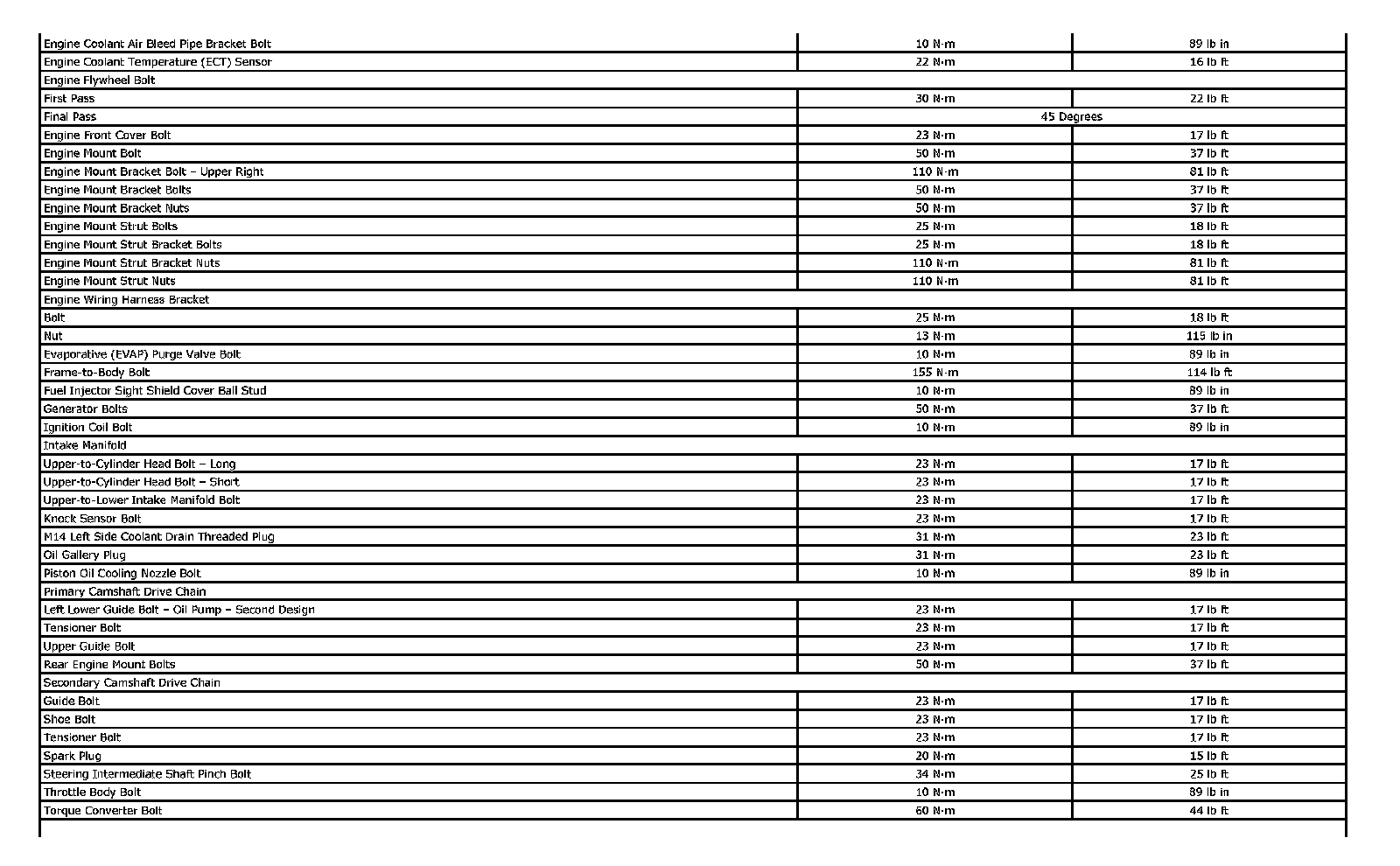

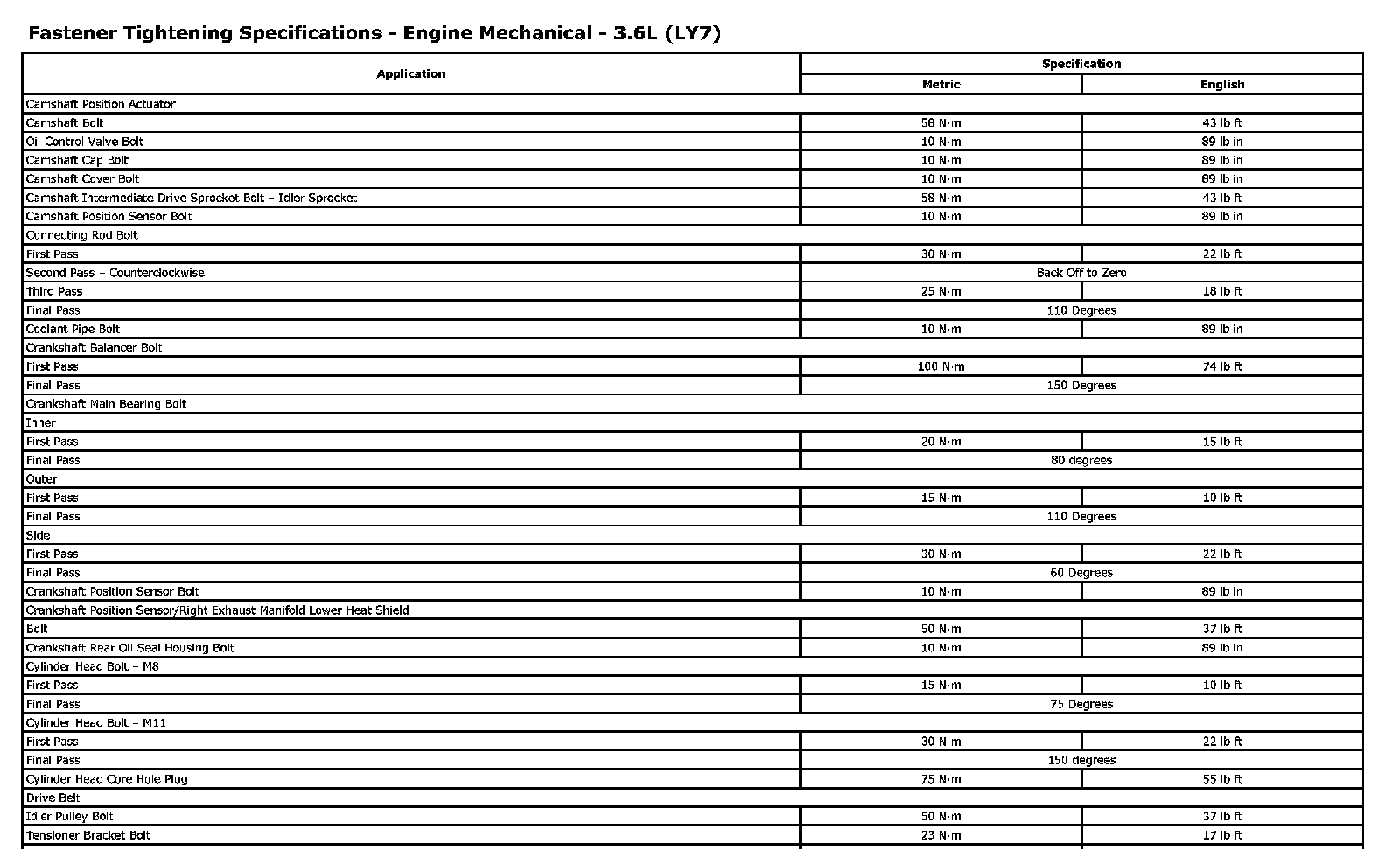

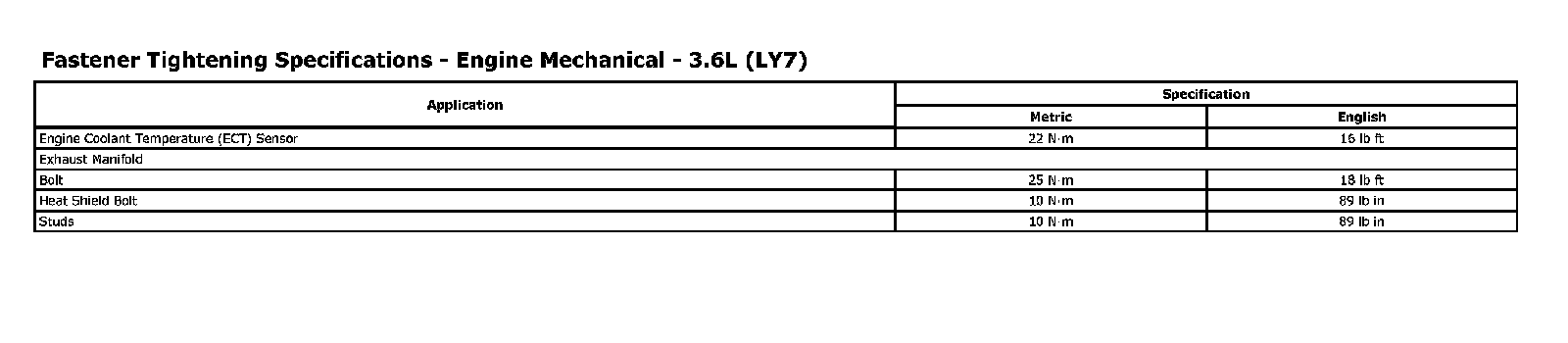

Fastener Tightening Torques and Sequences
