Body Repair Description
Body Repair DescriptionNOTE:
- Body repair work consists of "diagnosis, removal, installation and replacement" of body parts and "rust-proofing" etc.
- Use SUZUKI genuine service parts and materials and follow repair instructions in this manual to ensure repair quality. Body repair work should be performed by qualified technicians.
- This manual dose not describe most of panel repair works as cutting, drilling and welding and frame corrections. Refer the SUZUKI body repair training DVD of part number 99563-02060-01E for such technics.
- Be noted that most of important information are inserted as symbols into every illustration. The following description of symbol definitions is essential for the body repair procedures.
- Most of repair procedures are described on the left side of the vehicle. Most part of the vehicle are almost symmetrical in the welding spots. A separate repair procedures for the right side is shown only if the construction or welding spots are significantly different.
- Refer to the following for plastic parts and sealer application area.
- Plastic Part Specifications
- Sealant Application Areas

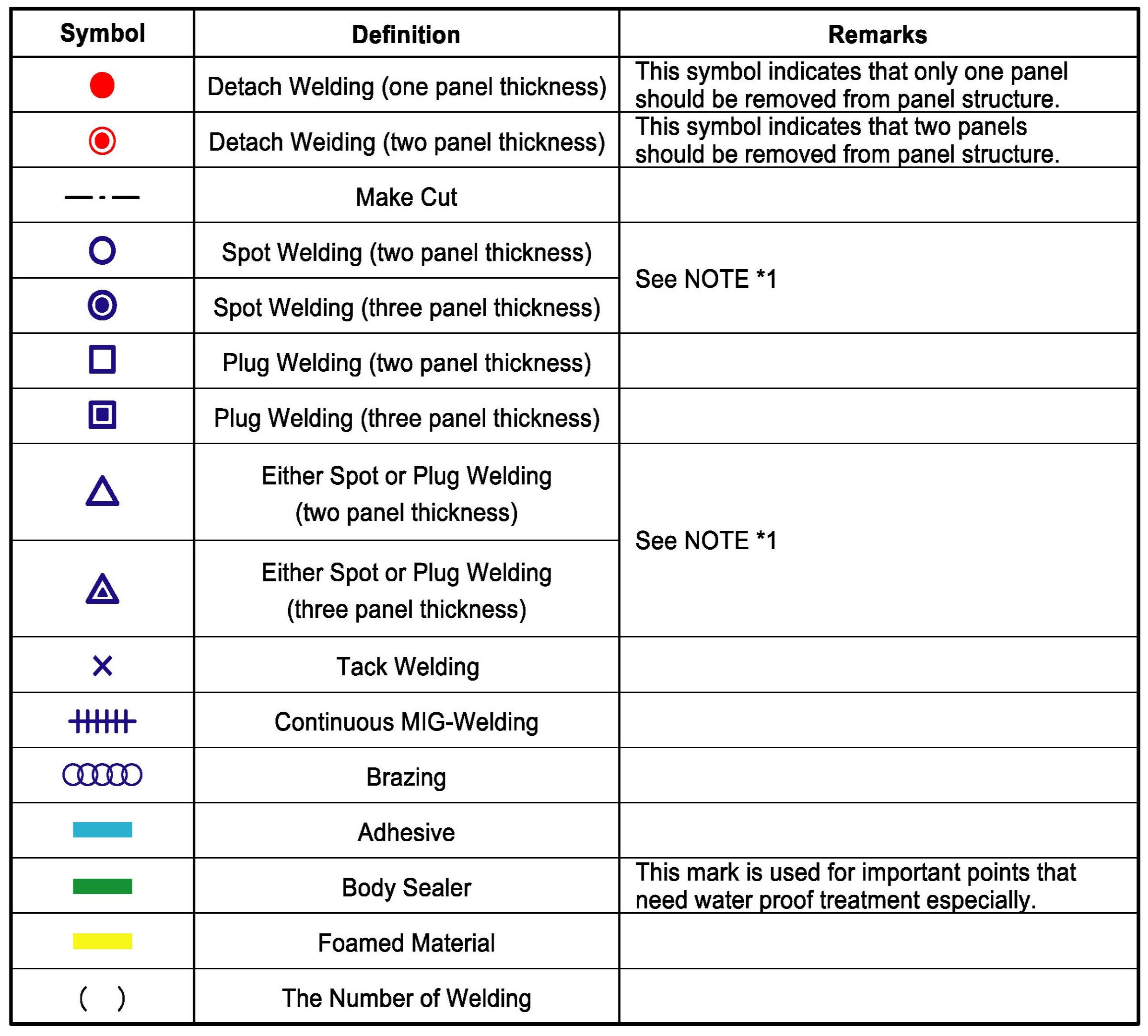

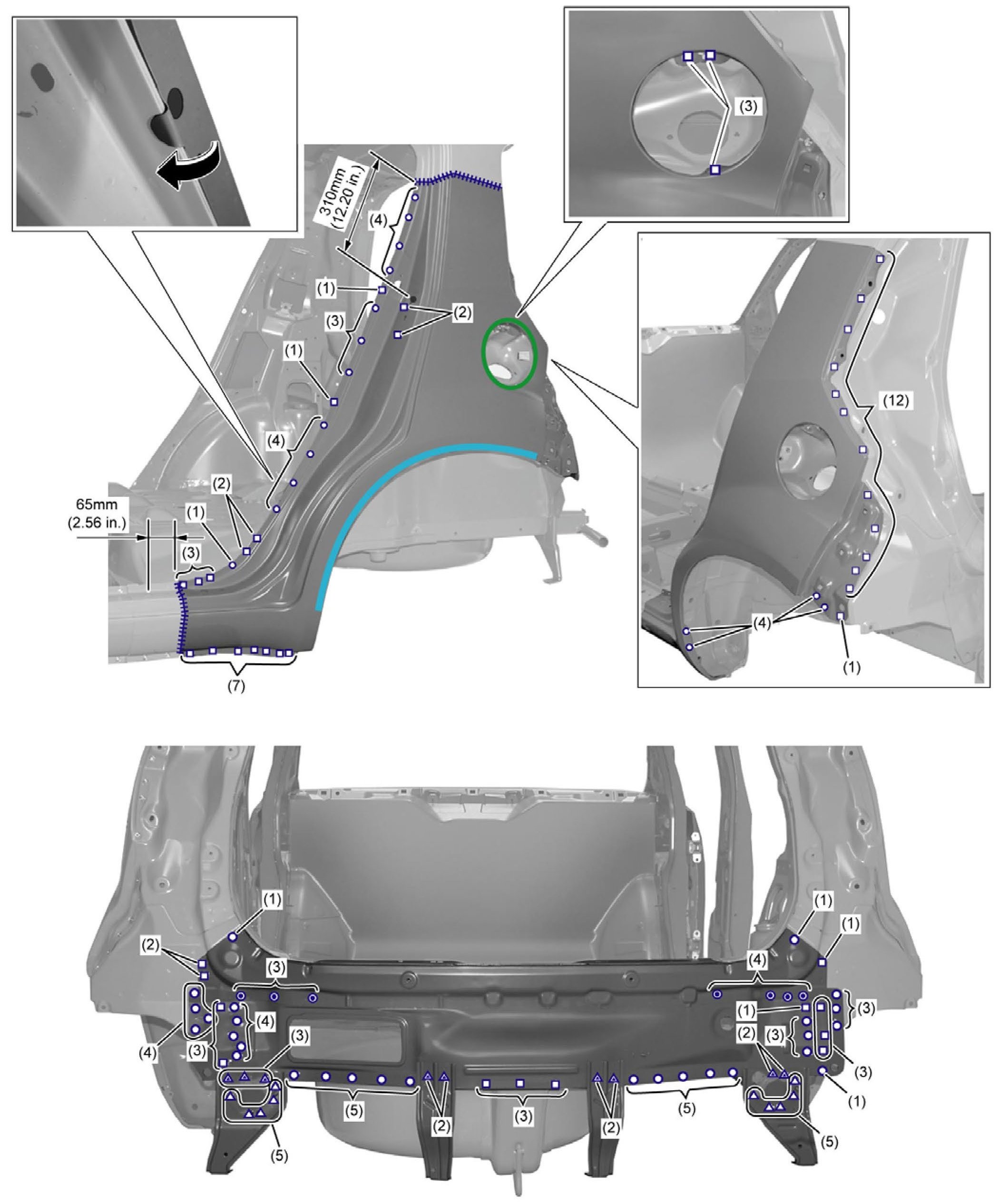

Symbols
NOTE: *1: Use a spot weld machine compatible with panel thickness and steel panel type of welding spot to conduct spot weld.
