Antilock Brakes / Traction Control Systems: Service and Repair

ESP(R) OFF Switch Removal and Installation

Removal
1) Remove instrument panel switch bezel.
2) Disconnect ESP(R) OFF and parking sensor OFF switch connector.

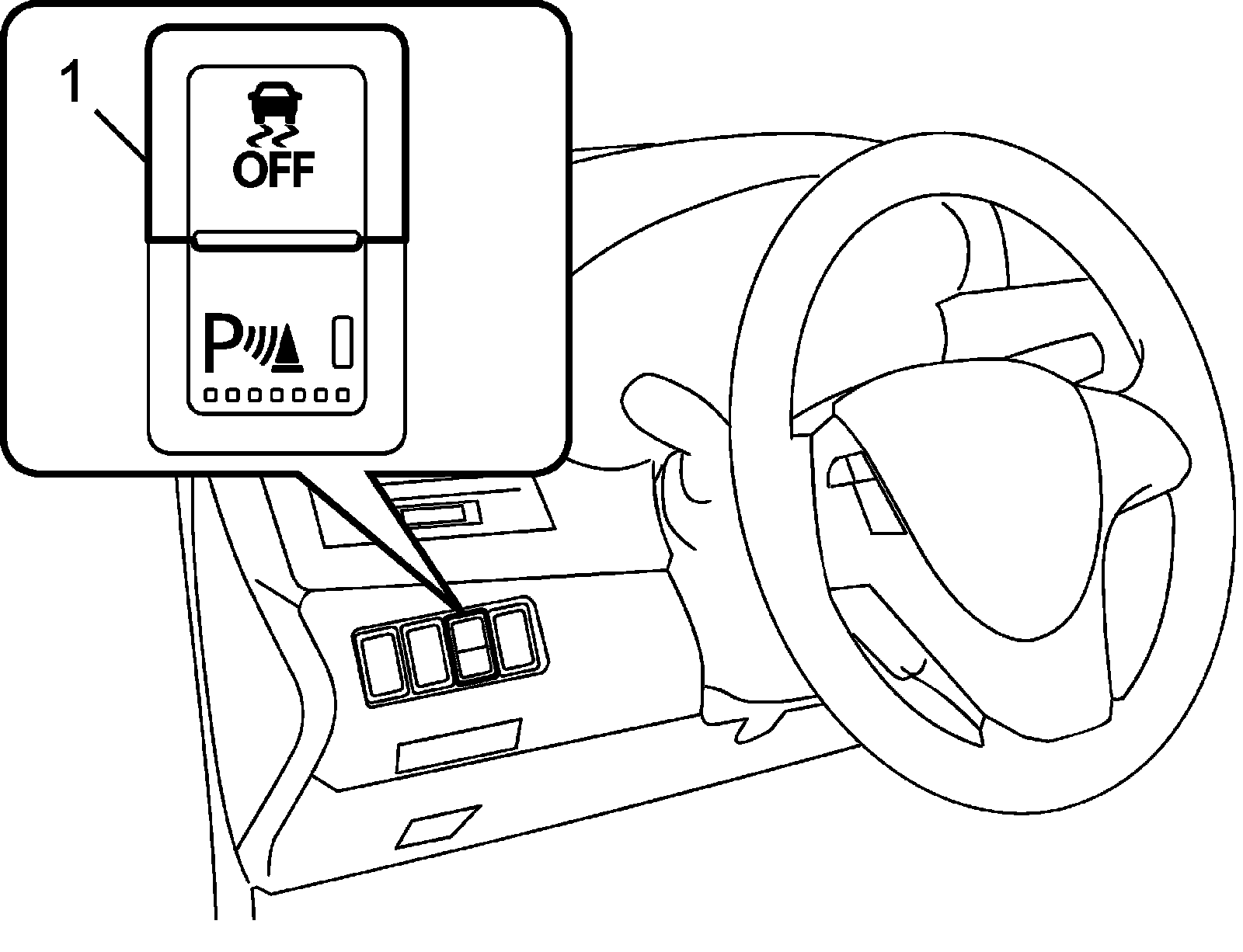

3) Remove ESP(R) OFF and parking sensor OFF switch (1) from instrument panel switch bezel.





Installation
Reference: ESP(R) OFF Switch Inspection
Reverse removal procedure.
