Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C Connectors
C Connectors
C Connector

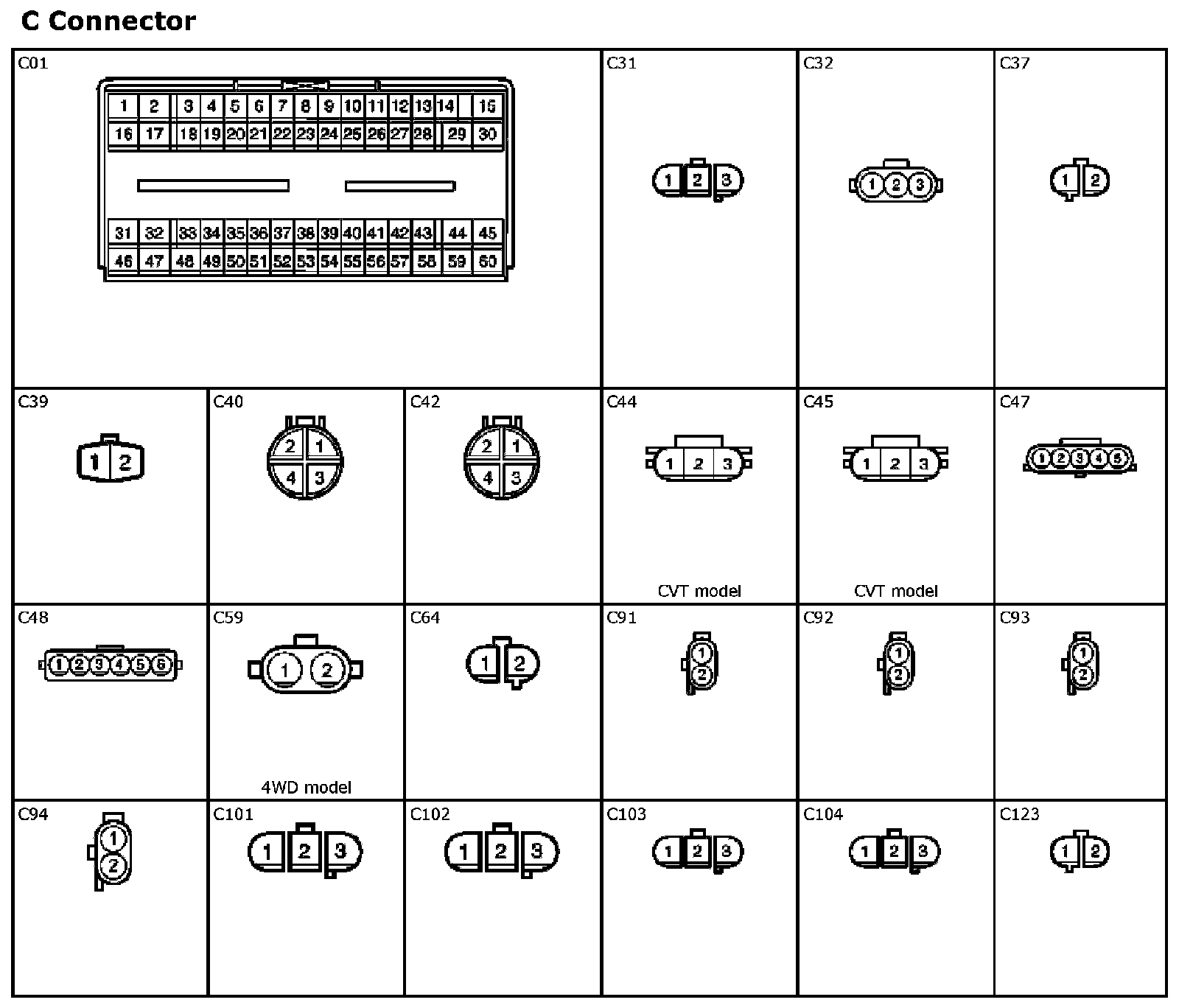

C01 - C123:

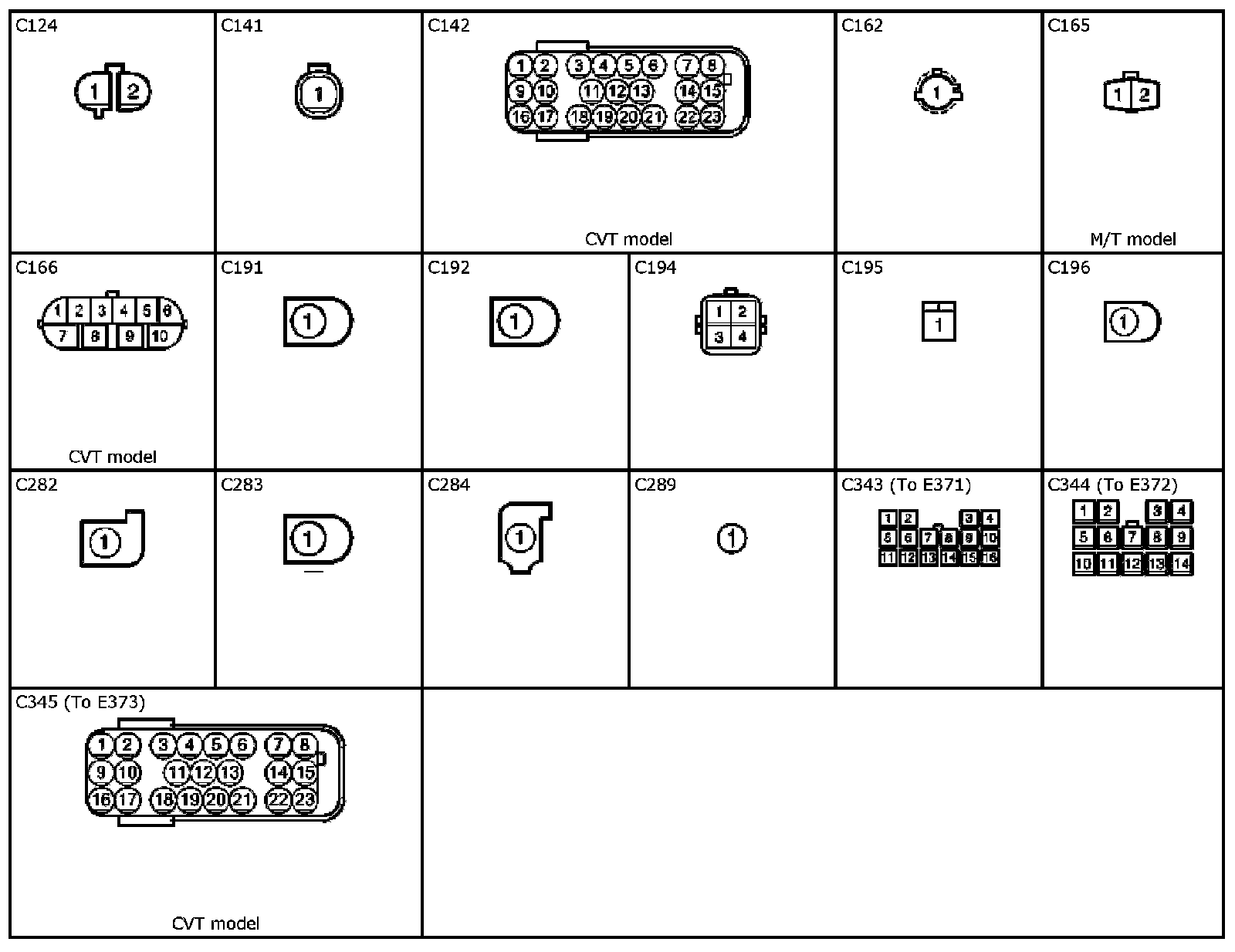

C124 - C345:
