Home
>>
Suzuki
>>
2010
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Q Connectors
Q Connectors

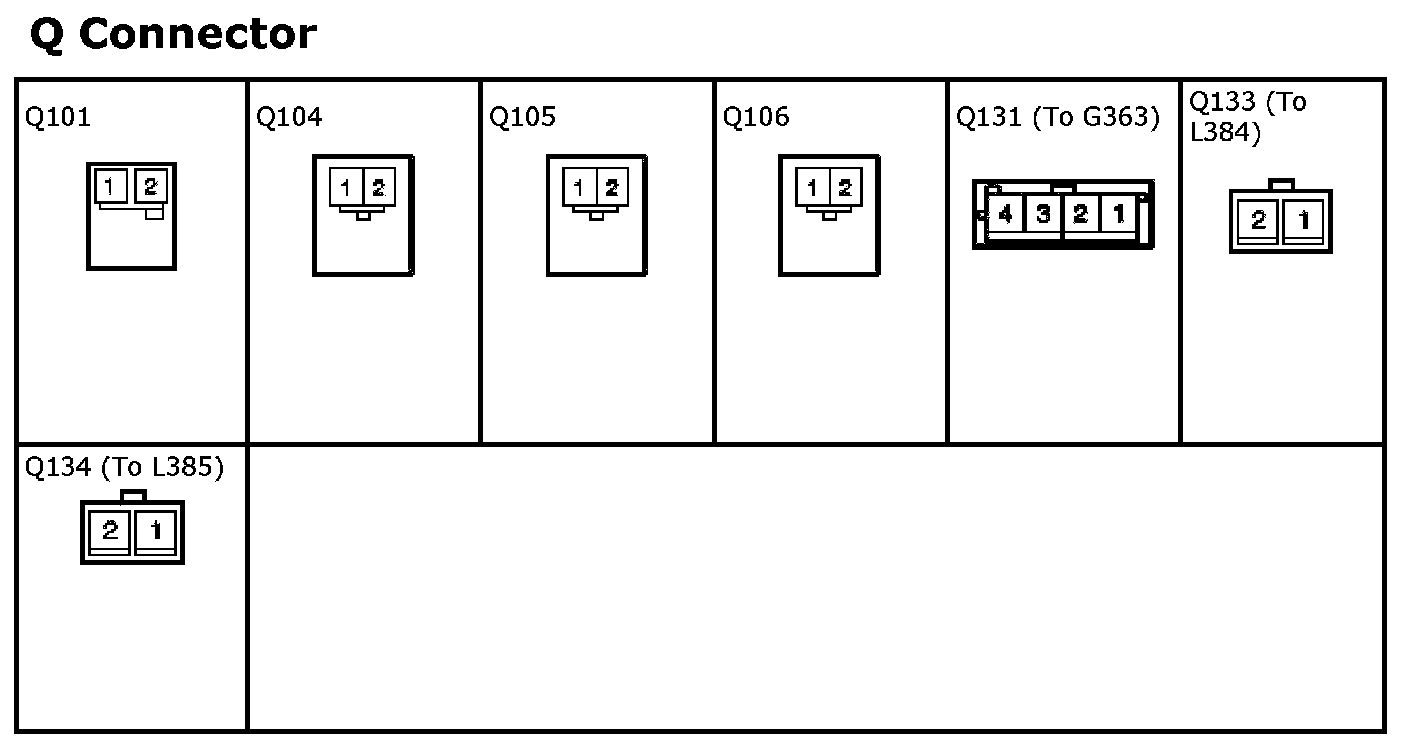

Q Connector
Q101 - Q134:
