Ignition System Wiring Circuit Diagram
Ignition System
Wiring Circuit Diagram

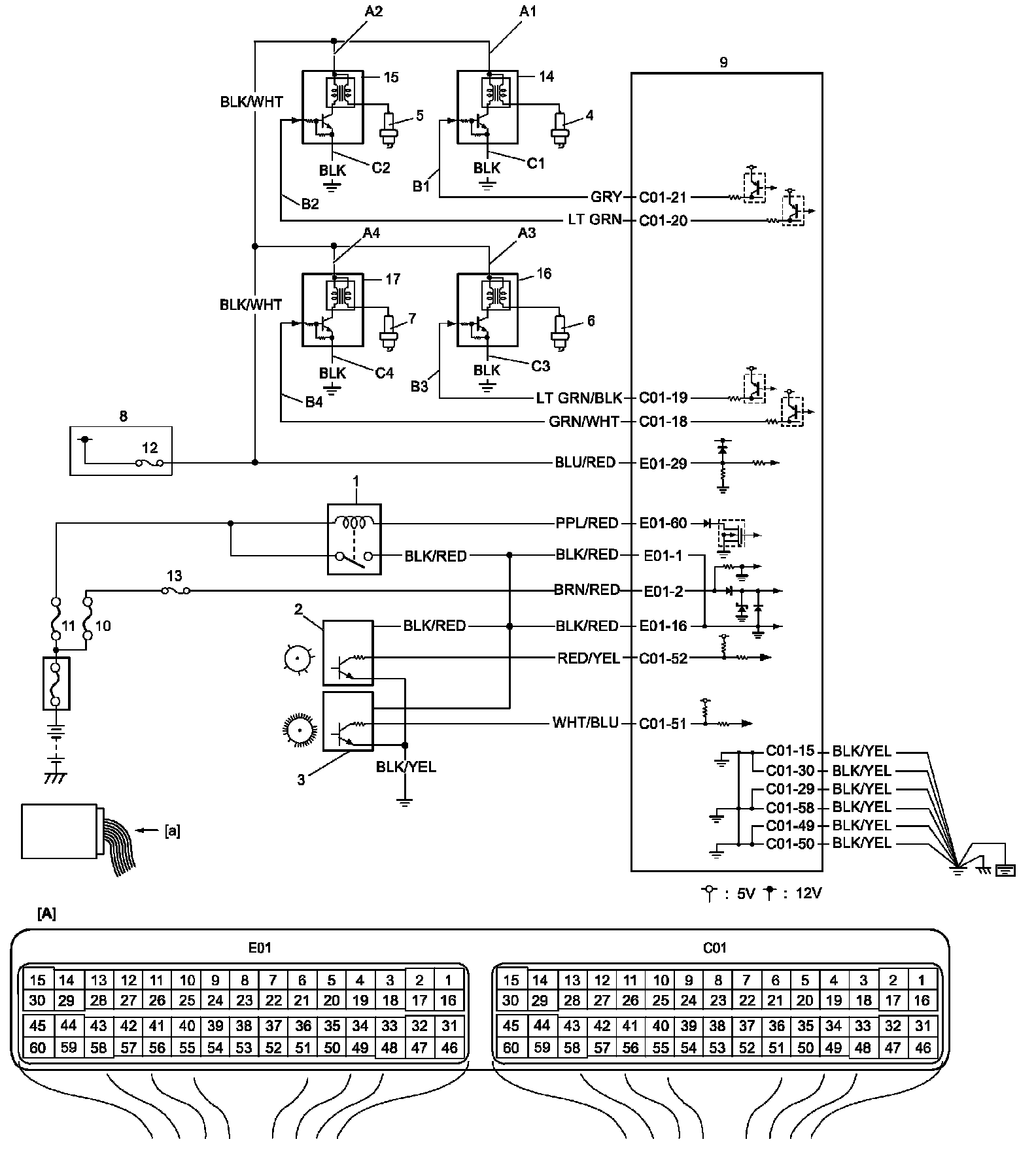

Ignition System Wiring Circuit Diagram (Part 1):
Ignition System Wiring Circuit Diagram (Part 2):
