Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Around Transmission
Around Transmission
Around Transmission

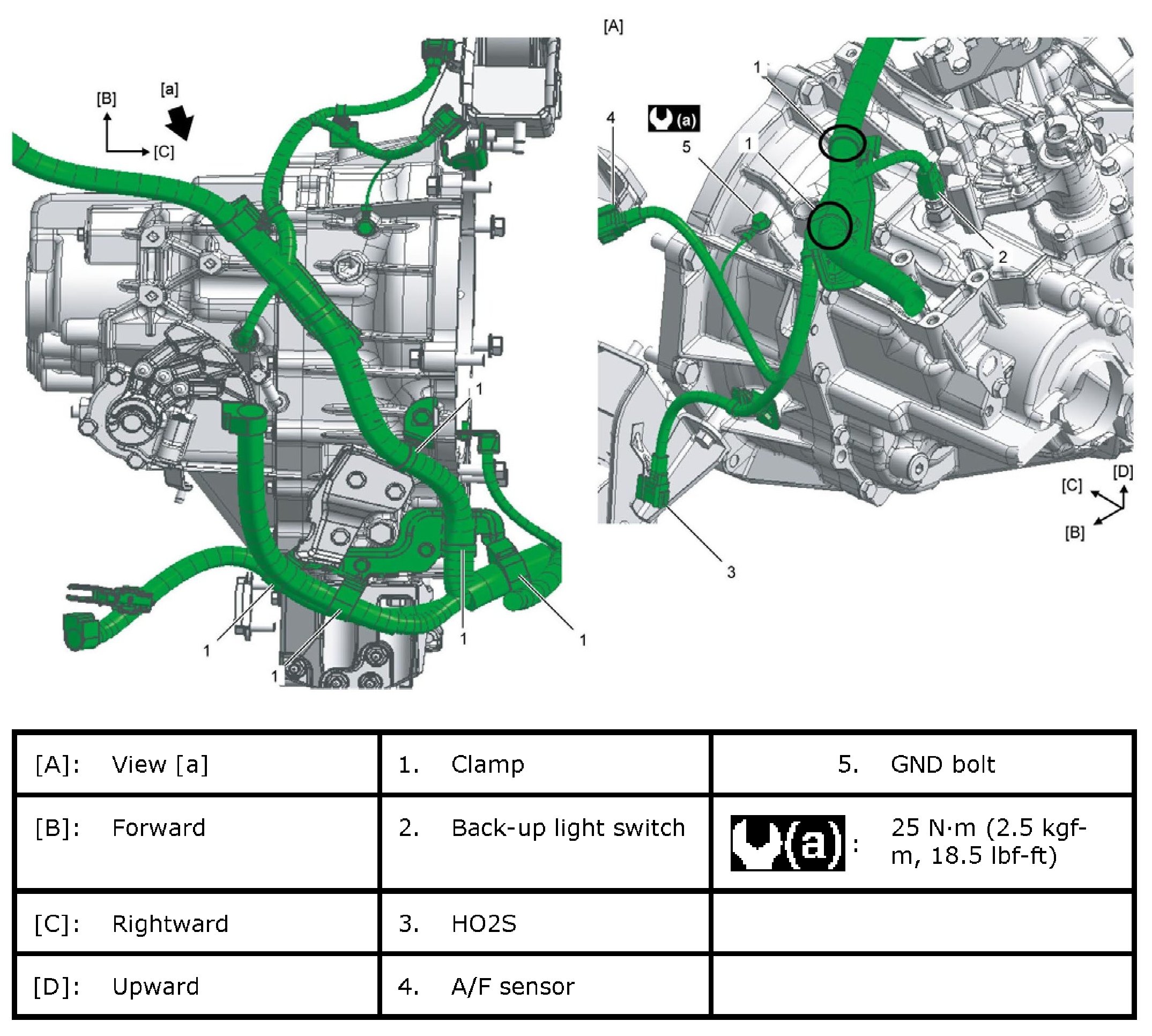

M/T Model
Around Transmission - M/T Model:

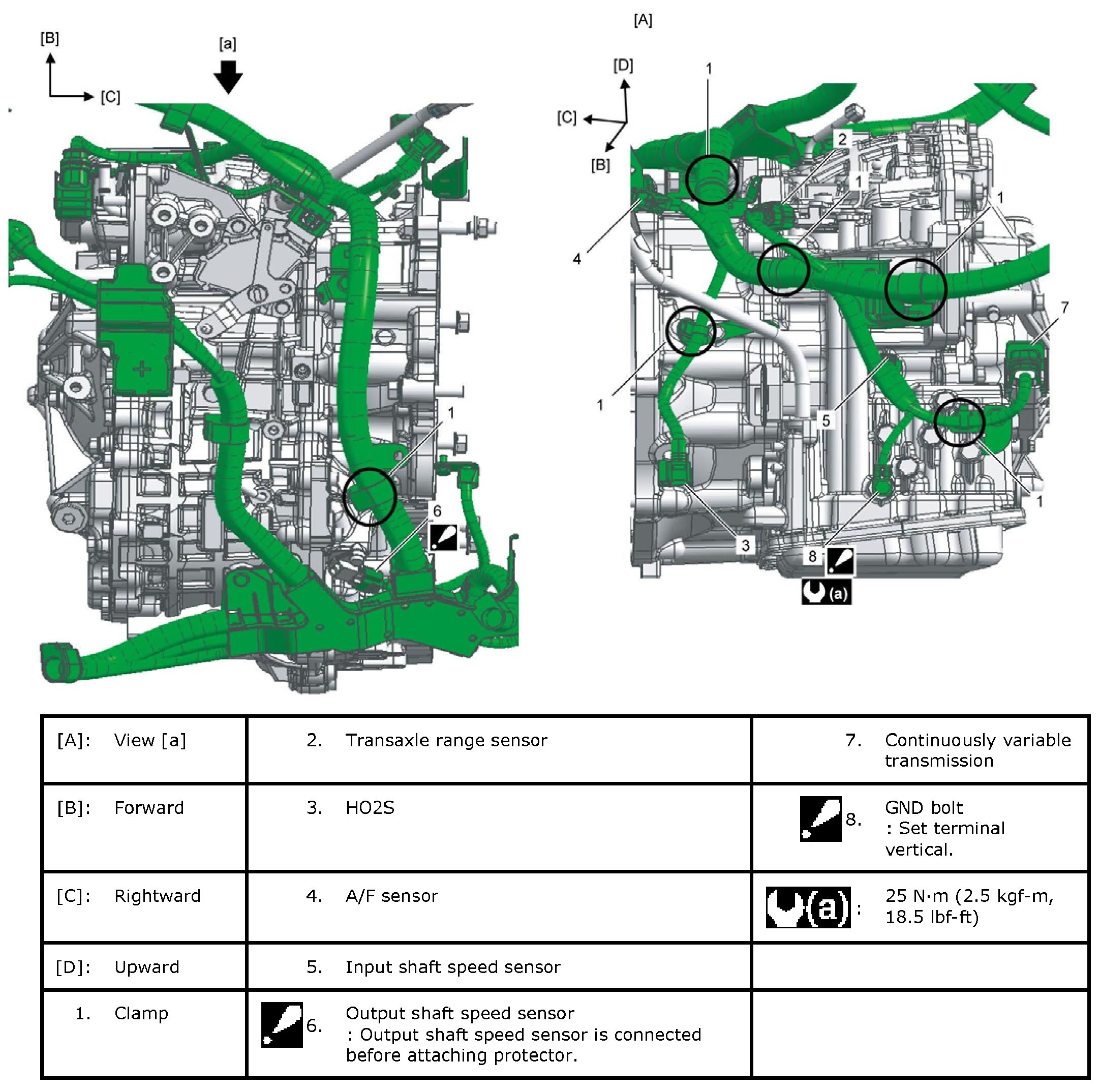

CVT Model
Around Transmission - CVT Model:
