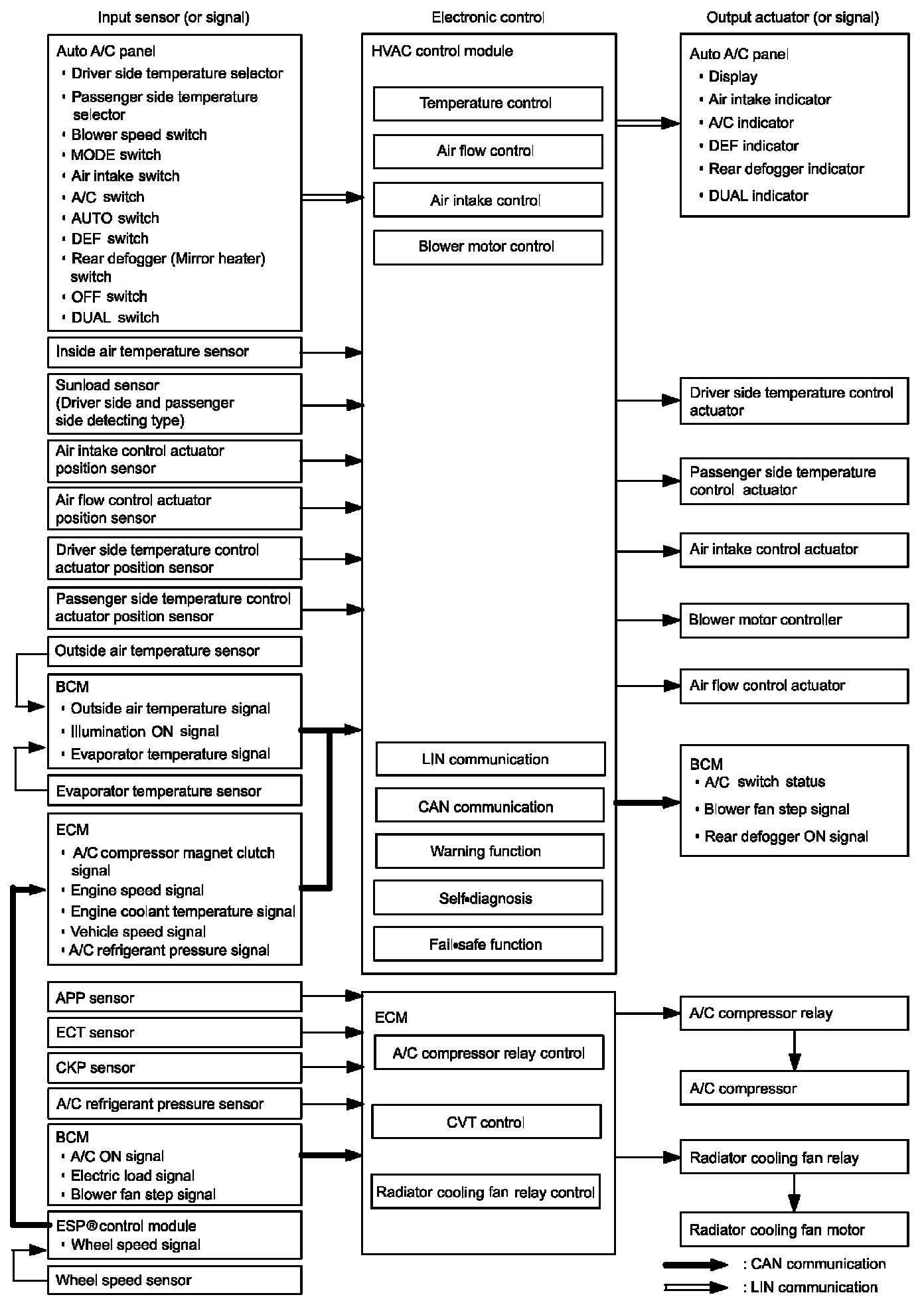

HVAC Electronic Control Input / Output Block Diagram
HVAC Electronic Control Input / Output Block Diagram
HVAC Electronic Control Input / Output Block Diagram
