Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2010
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Around Fuel Tank
Around Fuel Tank
Around Fuel Tank
4WD Model

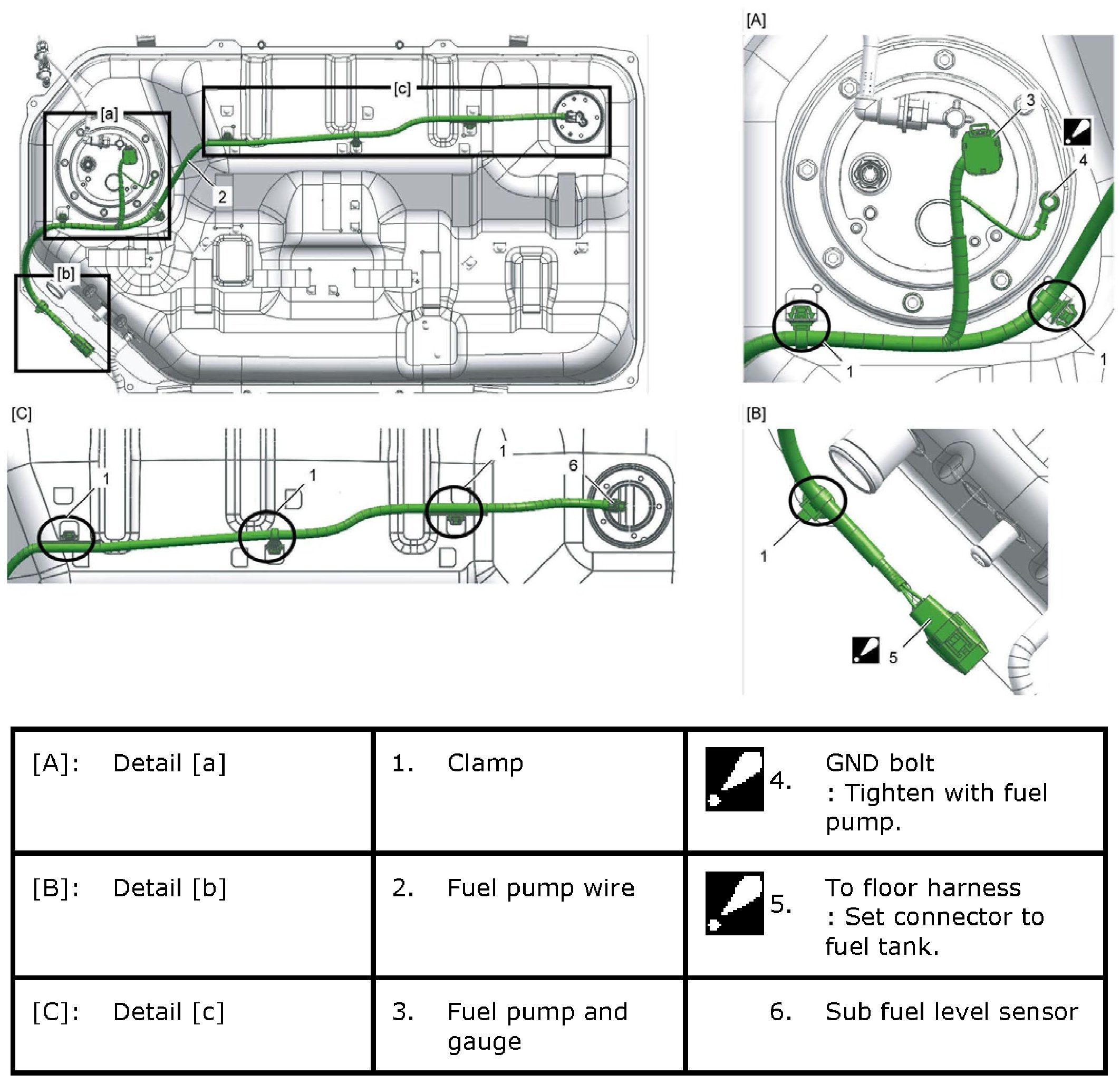

Around Fuel Tank - 4WD Model:
