Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Impact Sensor
>>
Locations
Impact Sensor: Locations

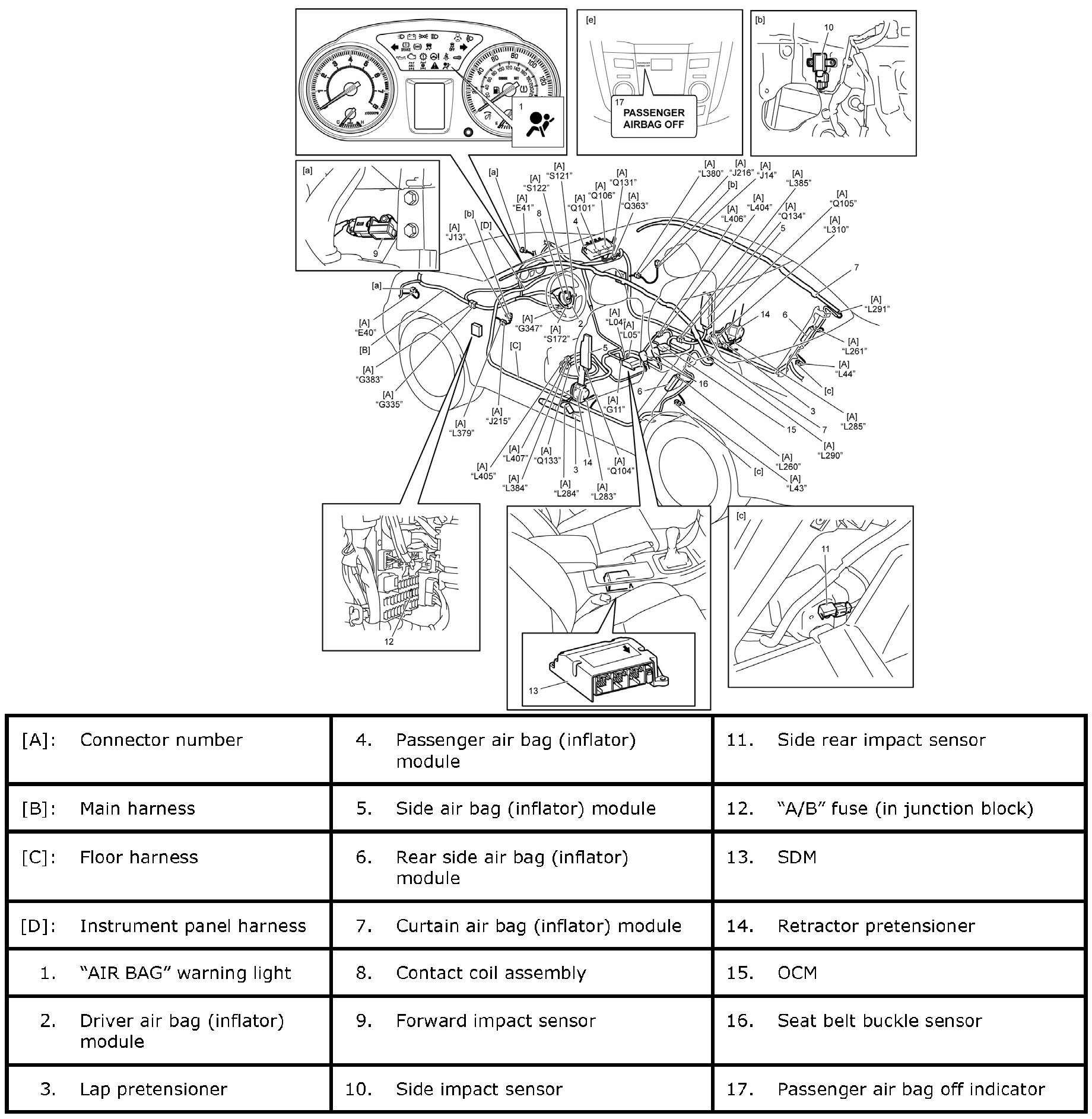

Air Bag System Component, Wiring And Connector Location
