Brake Interlock System Construction
Brake Interlock System ConstructionShift Lock Solenoid Control
This system consists of shift lock solenoid control system and interlock control system.
The shift lock solenoid control system is so designed that the select lever can not be shifted from "P" range position unless engine switch is pressed to change the ignition mode to "ON" or "ACC" and the brake pedal is depressed.
And interlock control system is so designed that select lever cannot be shifted from "P" range position unless engine switch is pressed to change the ignition mode to "ON" or "ACC".
Shift Lock Solenoid Manual Release

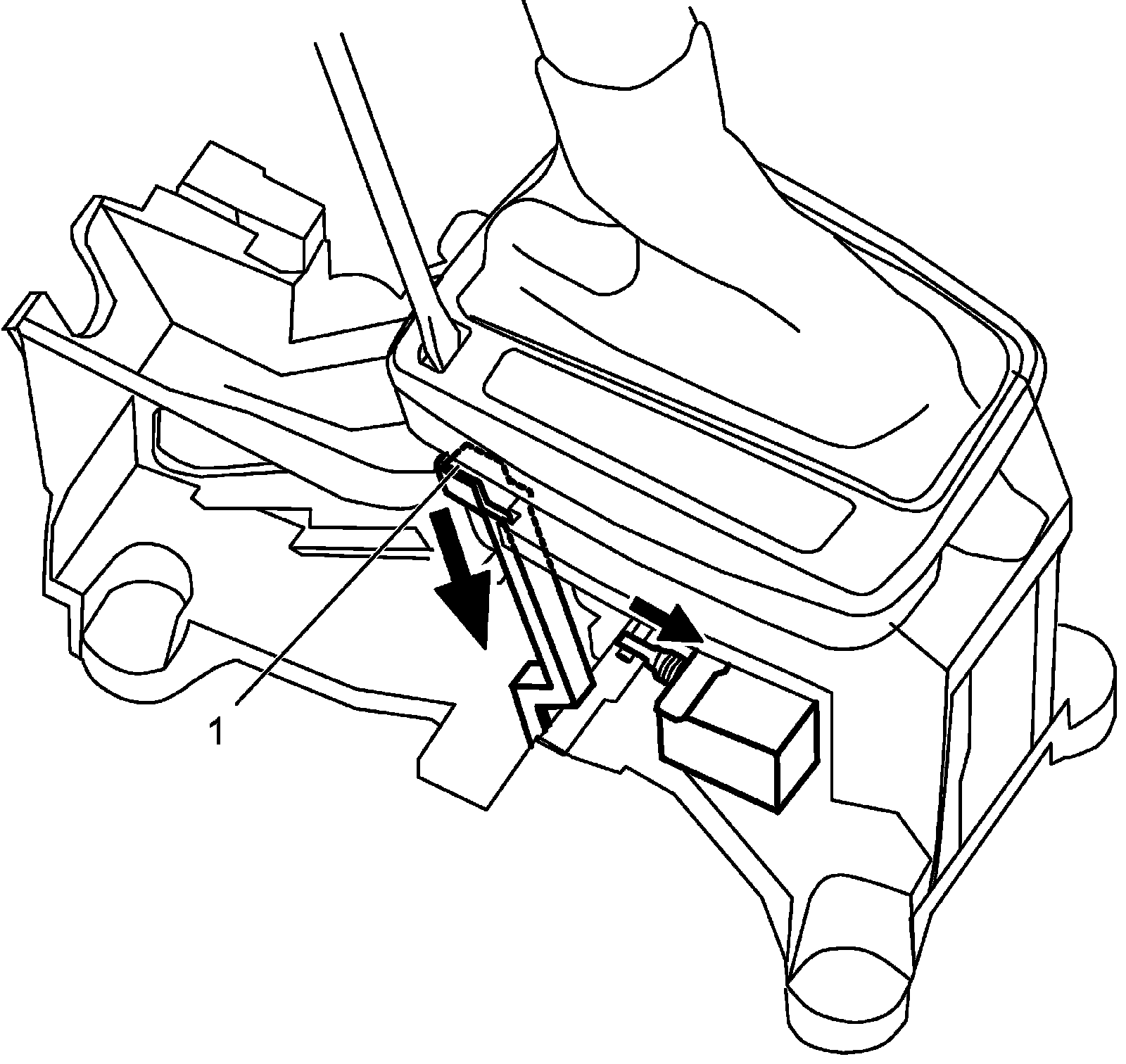

Remove plug cap of select lever and push down shift lock solenoid release plate (1) inside of plug hole with a flat-end screwdriver or the like. Then, select lever can be moved from "P" range position to another range even without depressing the brake pedal. (To shift select lever from "P" range to any other position, push engine switch to change the ignition mode to "ON" or "ACC".)
