Locations
>>
Harness Locations
>>
Around Fuel Tank
Around Fuel Tank
Around Fuel Tank
2WD Model

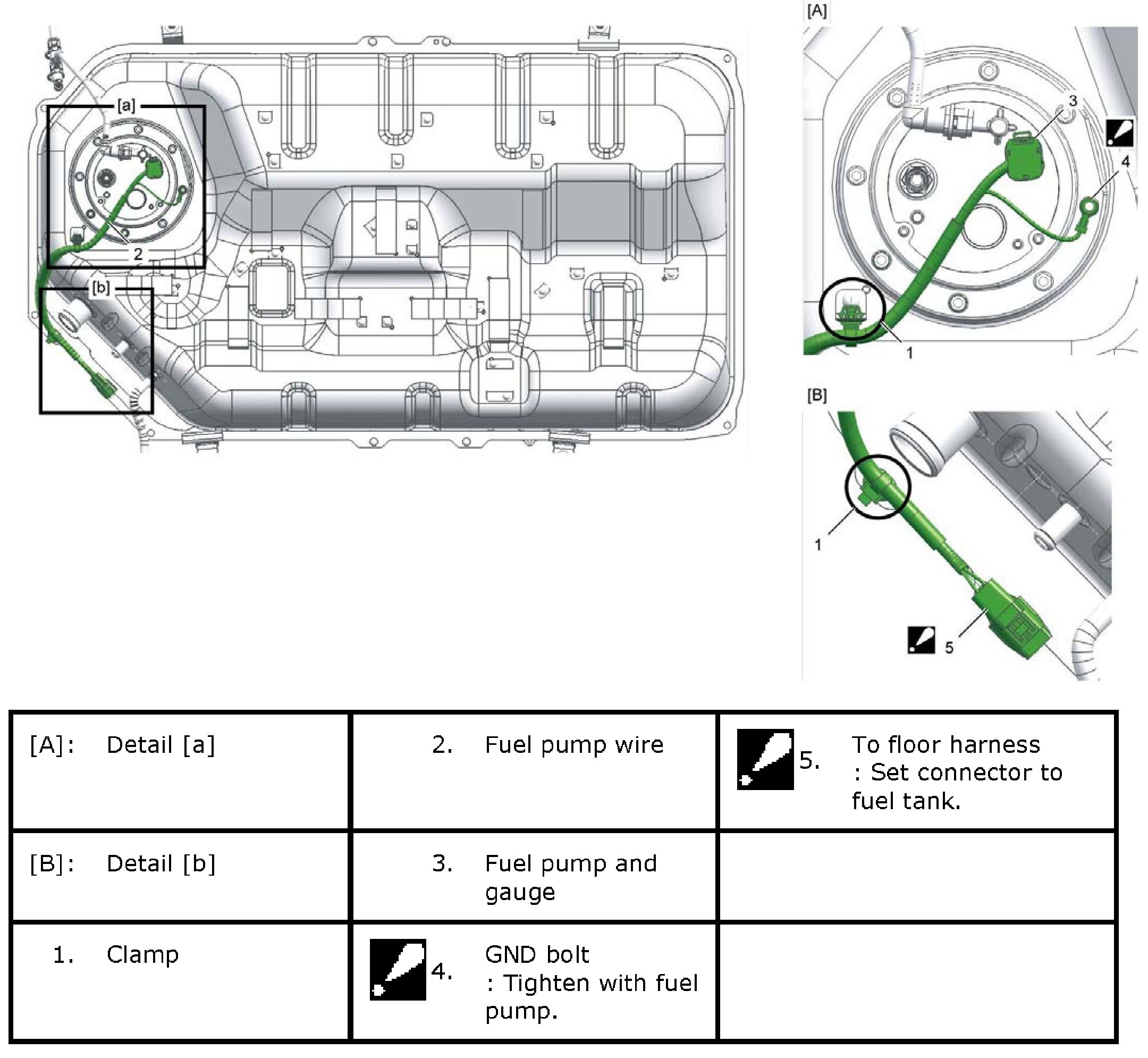

Around Fuel Tank - 2WD Model:
