Antilock Brakes / Traction Control Systems: Service and Repair

ESP(R) OFF Switch Removal and Installation

Removal
1) Disconnect negative (-) cable at battery.
2) Remove rear console box.
3) Disconnect ESP(R) OFF switch coupler.

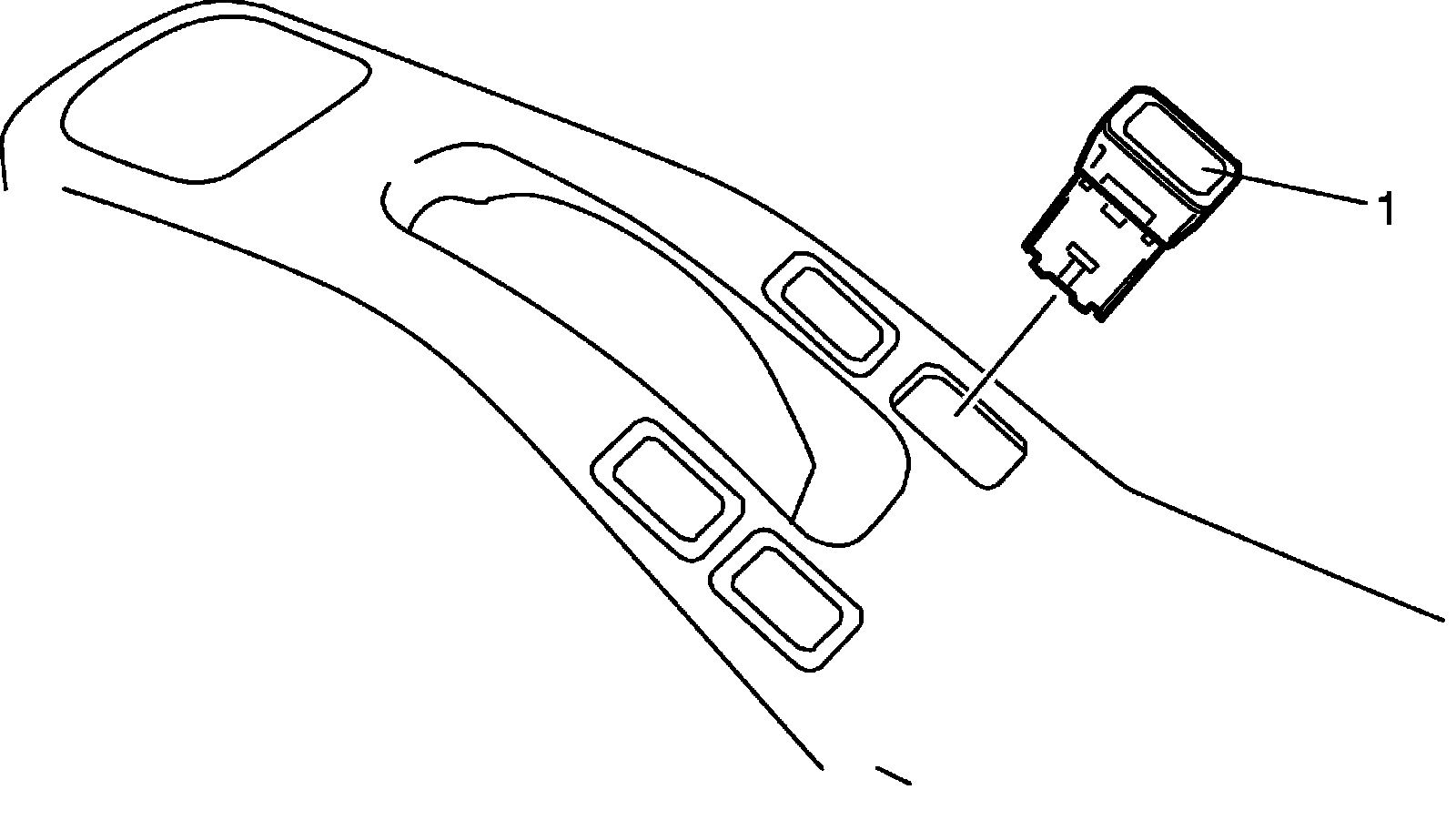

4) Remove ESP(R) OFF switch (1) from rear console box.





Installation
Reference: ESP(R) OFF Switch Inspection
Reverse removal procedure.
