Condenser Fan: Service and Repair

Condenser Cooling Fan Removal and Installation

CAUTION: Be careful not to damage fins of radiator. If radiator fin is bent, straighten it by using flat head screwdriver or pair of pliers.

Removal

1. Disconnect negative (-) cable at battery.
2. Disconnect condenser cooling fan motor coupler.

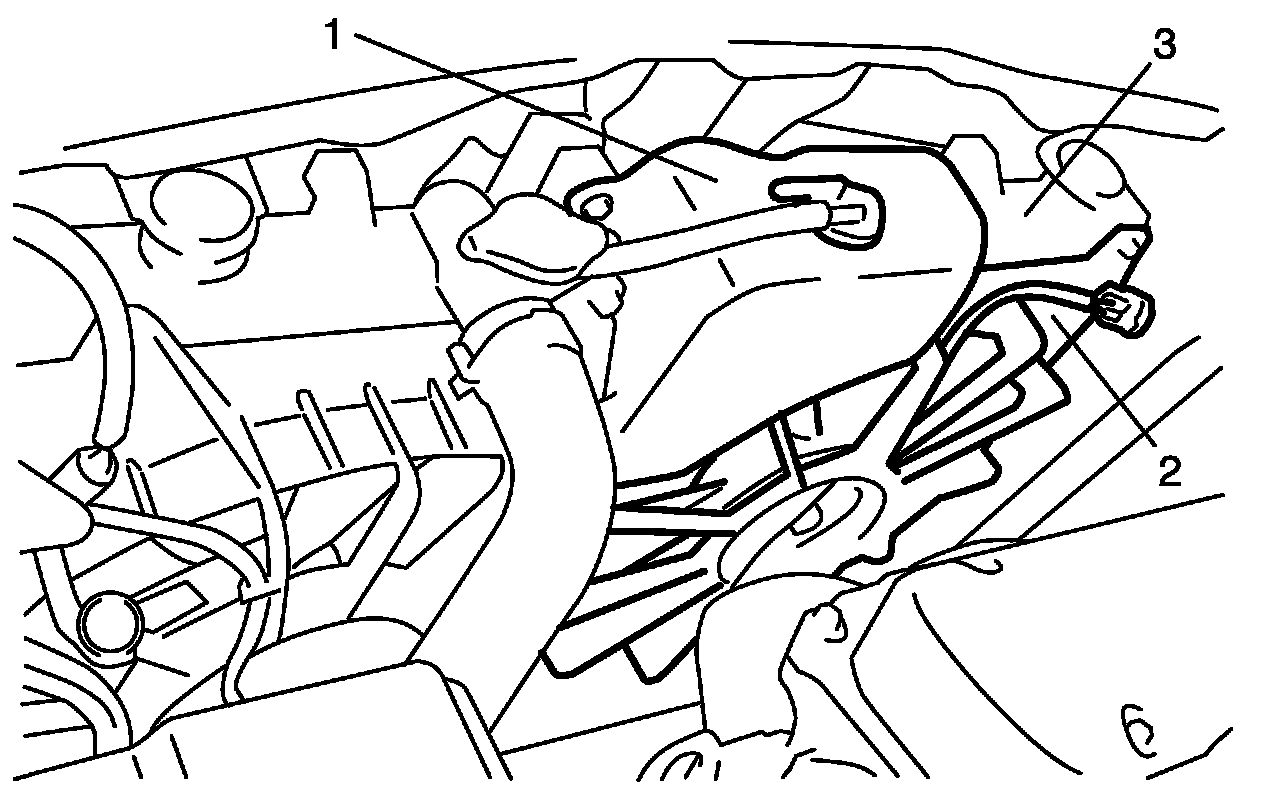

3. Remove reservoir (1) from radiator.
4. Remove condenser cooling fan (2) from radiator (3).







Installation

Reverse removal procedure to install condenser cooling fan.
