Receiver Dryer: Service and Repair
Desiccant Removal and InstallationRemoval

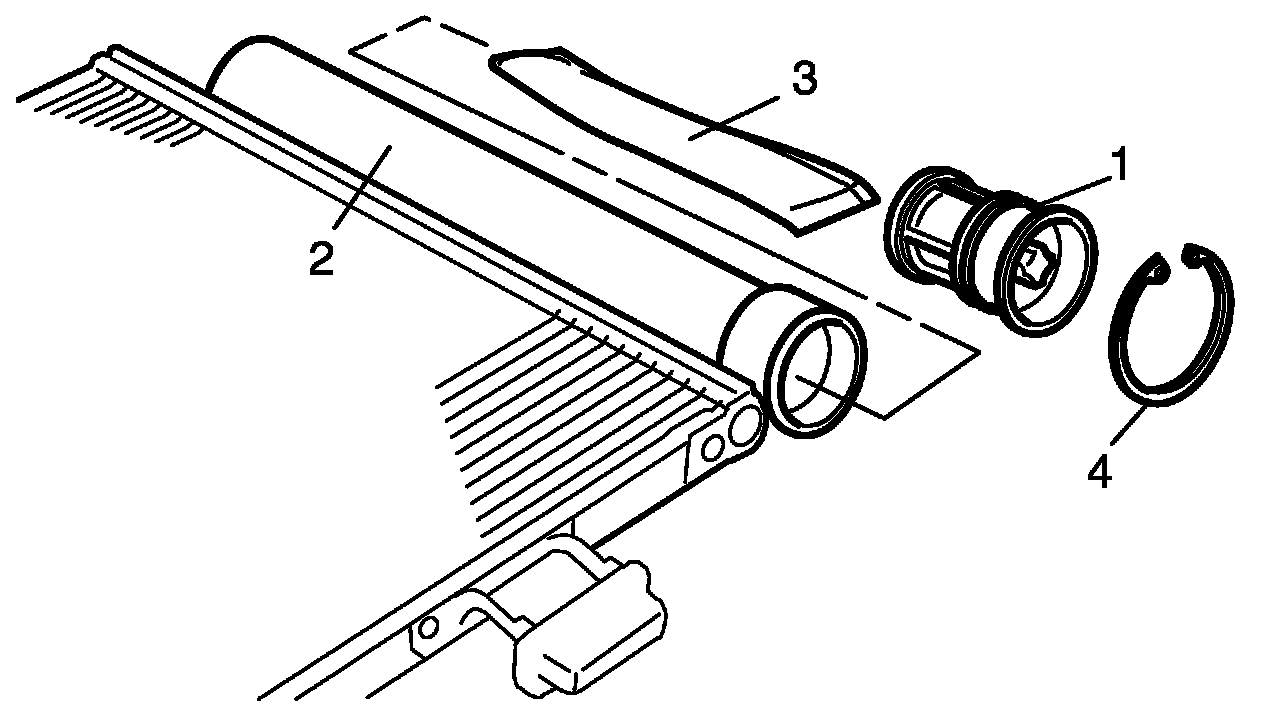

1. Remove condenser assembly referring to Condenser Assembly Removal and Installation:Manual A/C.
2. Remove circlip (4) using special tool.
Special Tool
: 09900-06107
3. Remove the cap (1) from the receiver / dryer tank (2).
4. Remove desiccant (3).
Installation

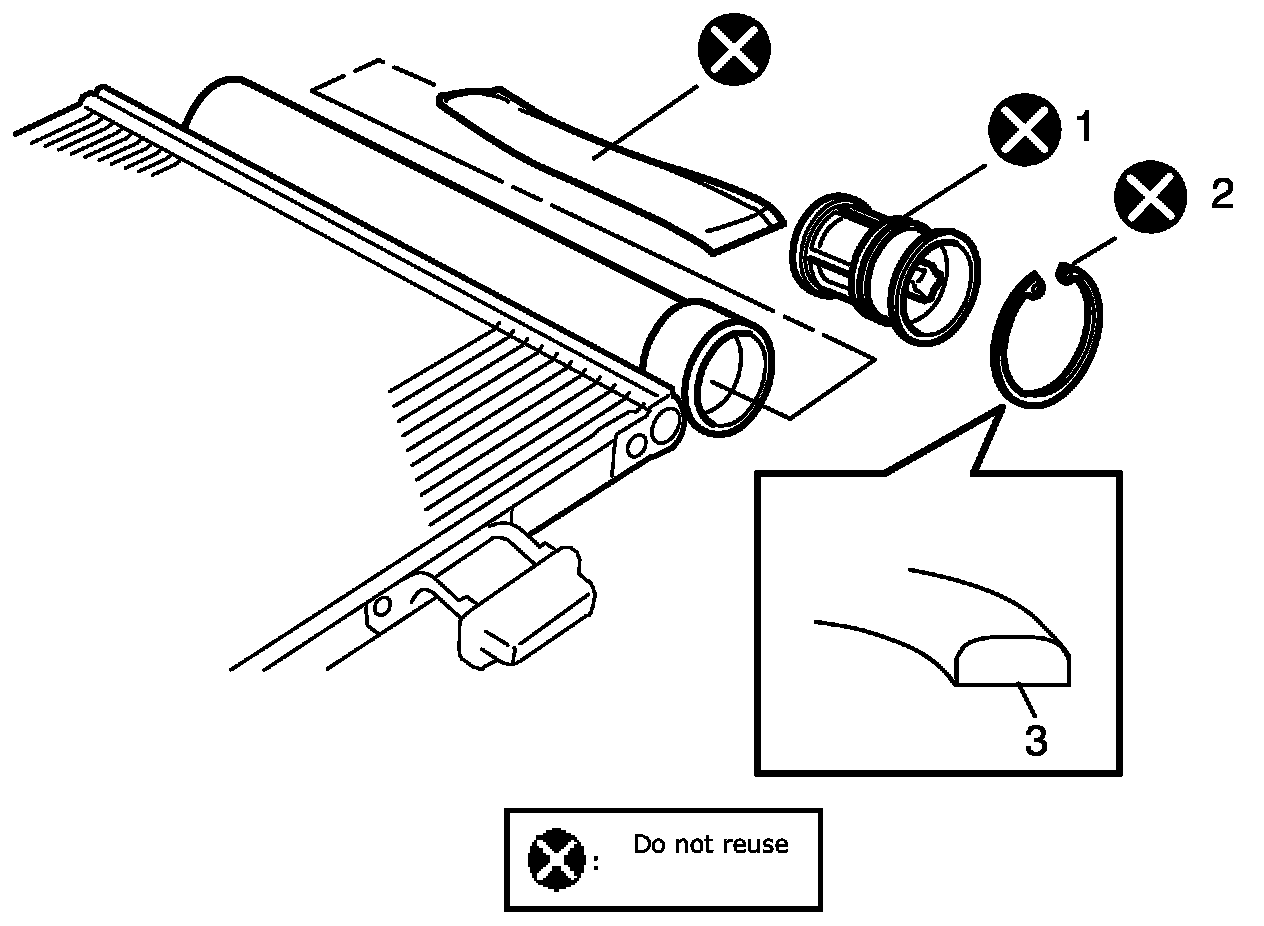

Reverse the removal procedure noting the following instructions.
- Replenish specified amount of compressor oil to compressor suction side referring to in Operation Procedure for Refrigerant Charge:Manual A/C.
- Do not remove desiccant from the plastic bag until just before inserting it into the receiver.
- Apply compressor oil to O-ring (1).
- Be sure to install circlip (2) with its flat face (3) directed to cap.
- Install condenser assembly referring to Condenser Assembly Removal and Installation:Manual A/C.
- Evacuate and charge the A/C system referring to "Evacuation" and "Charge" in Operation Procedure for Refrigerant Charge:Manual A/C.
