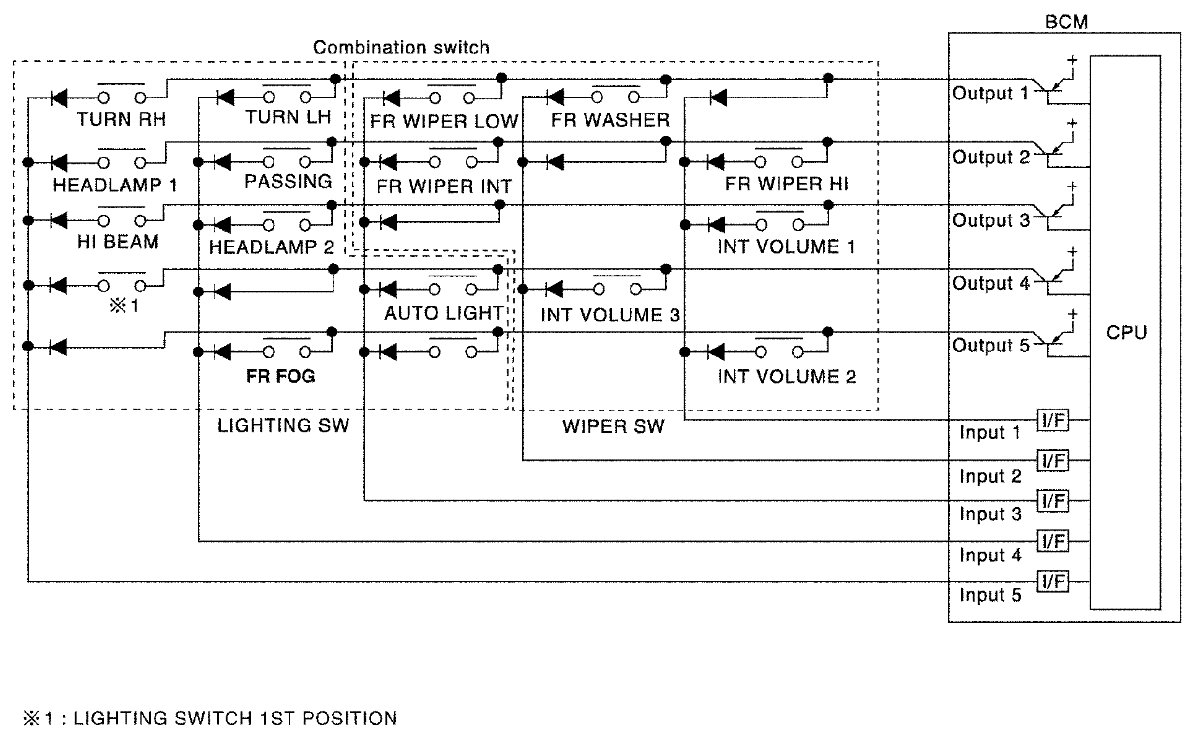

Combination Switch Reading System Diagram
Combination Switch Reading System Diagram
Combination Switch Reading System: System Diagram
