SDT Function (BCM - Door Lock)




SDT Function (BCM - DOOR LOCK)

DTC Check

Refer to [DTC Index: BCM] DTC Index BCM.

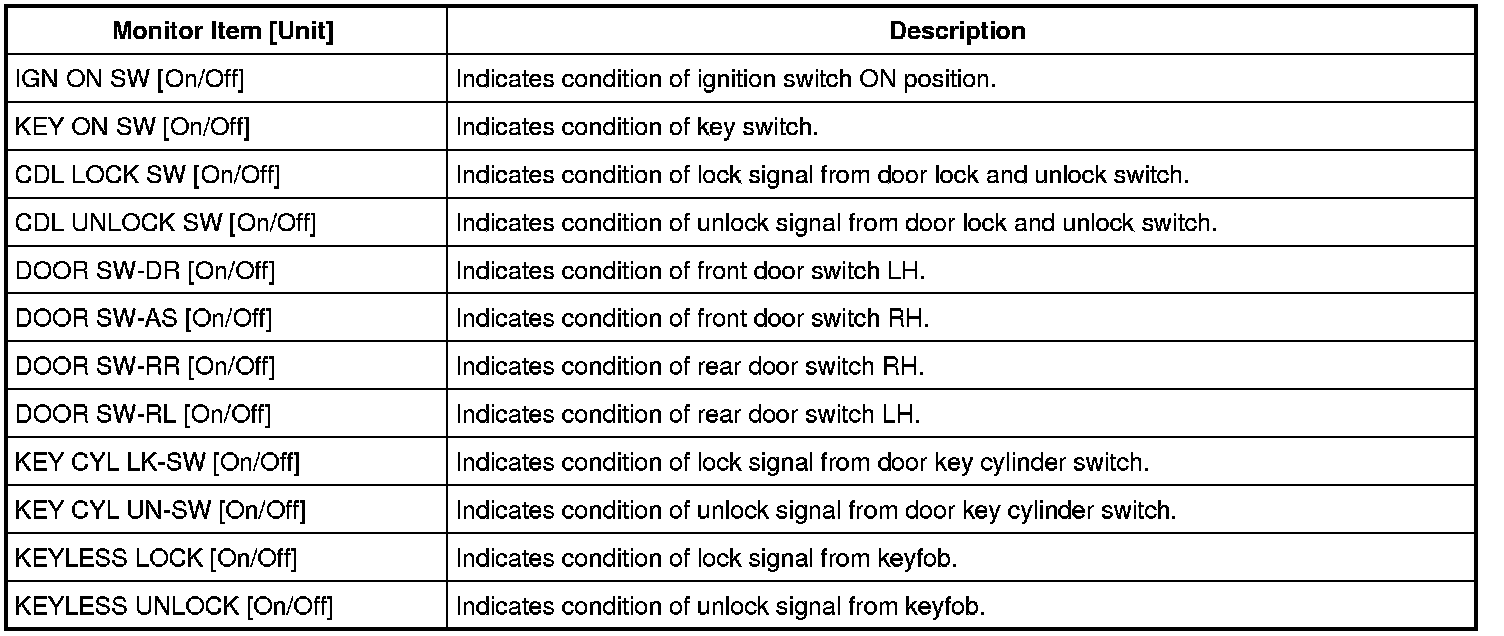

Data List






Active Test

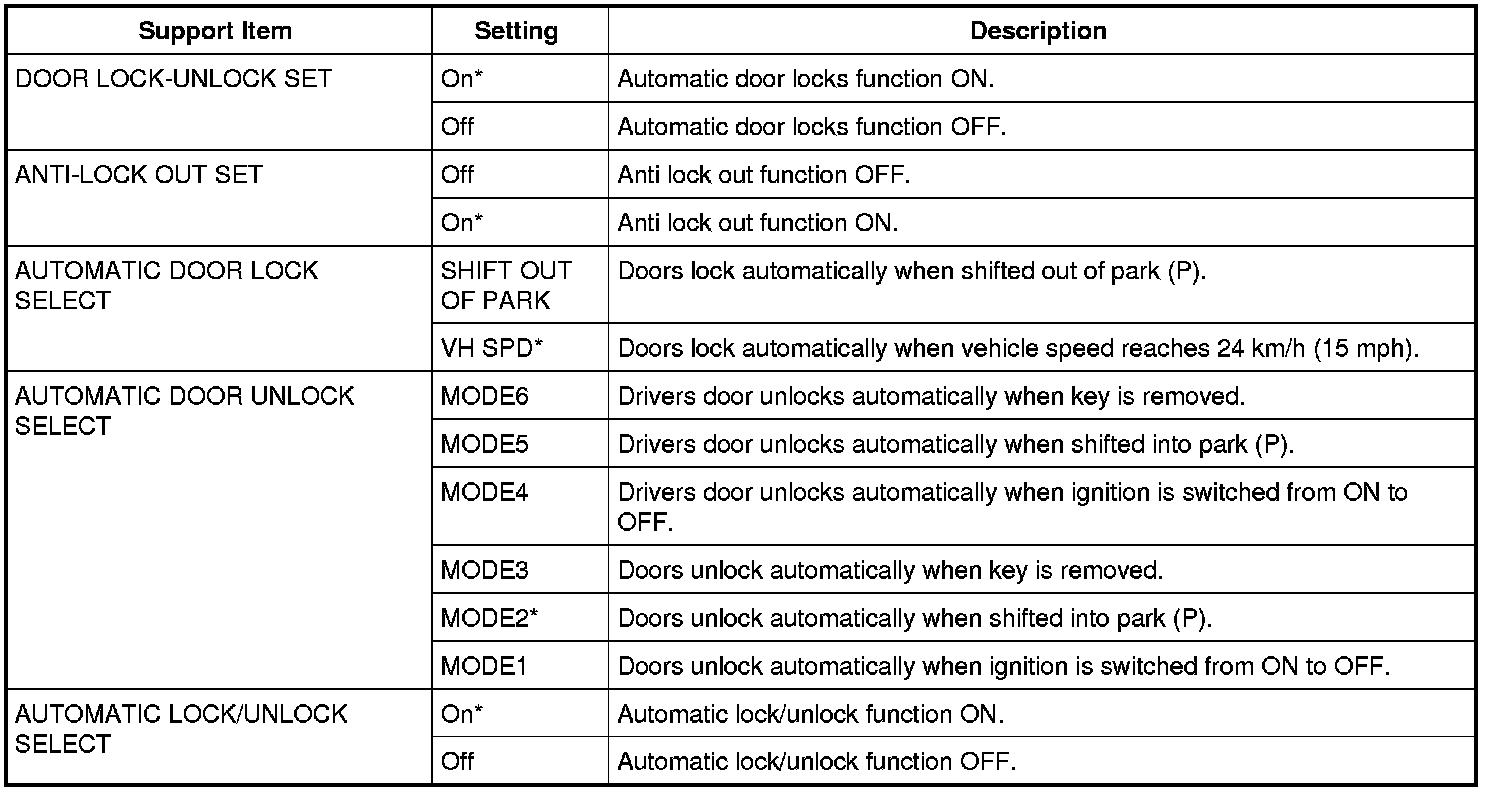

Utility





*: Initial setting
