Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2011
>>
Equator 4WD V6-4.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Housing Assembly HVAC
>>
Service and Repair
>>
Component
Component

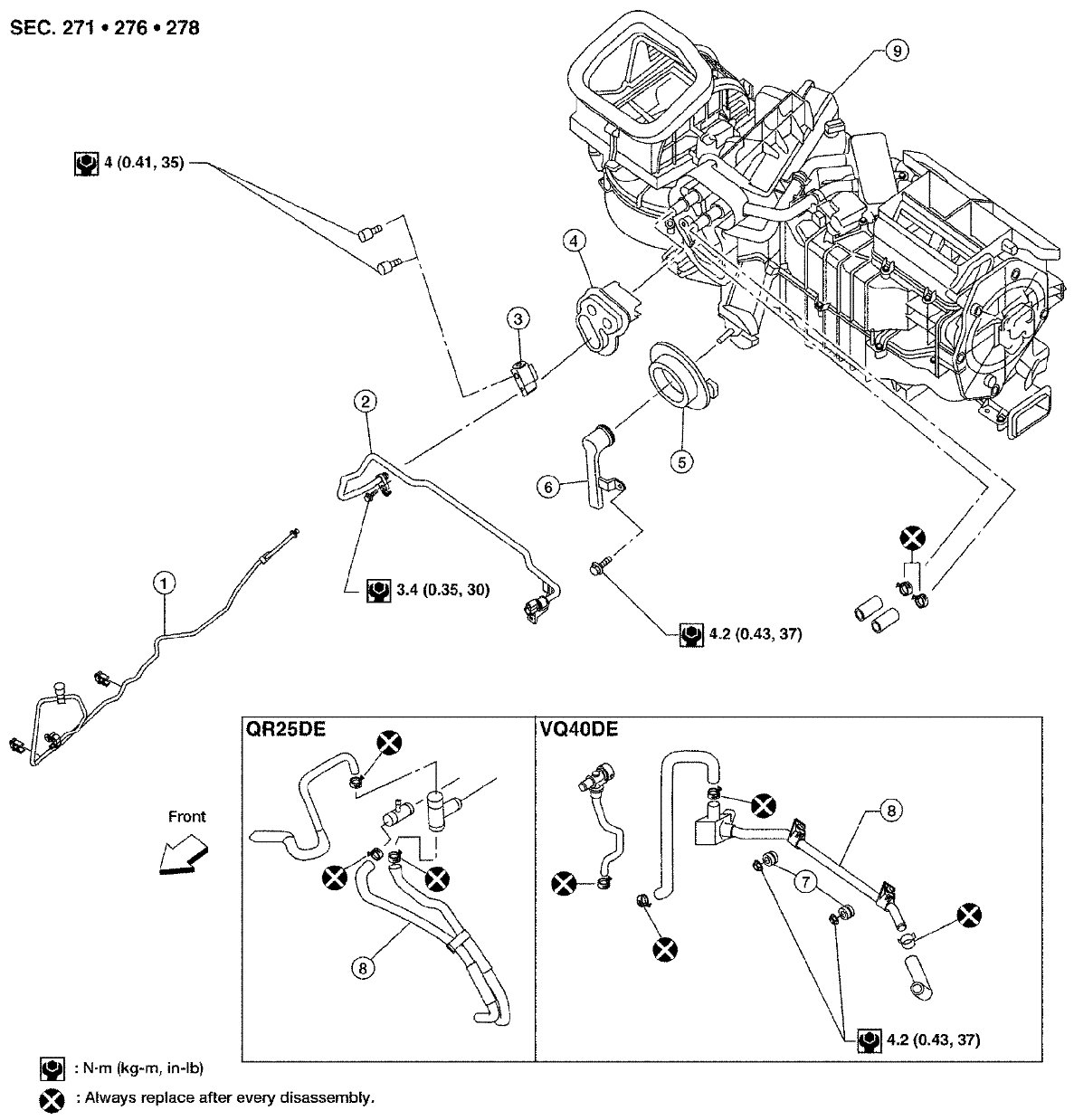

Heater & Cooling Unit Assembly: Component

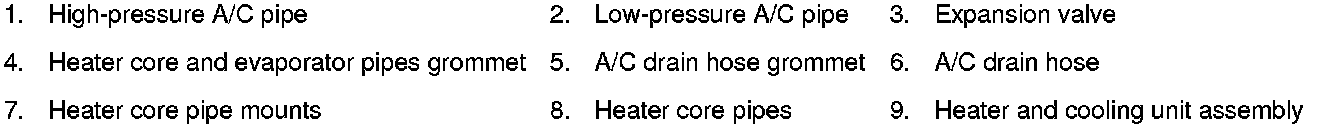

Heater and Cooling Unit Assembly
