Cylinder Head Assembly

Cylinder Head Torque & Sequence

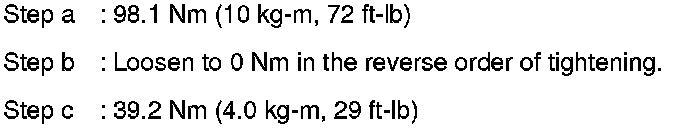

Tighten cylinder head bolts in numerical order as shown.










Measure the tightening angle using Tool.
















Re-usability

Cylinder Head Bolts Outer Diameter

- Cylinder head bolts are tightened by plastic zone tightening method. Whenever the size difference between (d1) and (d2) exceeds the limit, replace the bolt with a new one.











- If reduction of outer diameter appears in a position other than (d2), use it as (d2) point.

Surface Variation

Unit: mm (in)








Camshaft Bearing Cap Torque & Sequence

Tighten camshaft bracket bolts in the following steps, in numerical order as shown.











Intake Manifold Torque & Sequence

Specifications

Exhaust Manifold Torque & Sequence

Specifications

Camshaft Gear/Sprocket Torque

Specifications
