Steering Wheel and Column




Service Data and Specifications

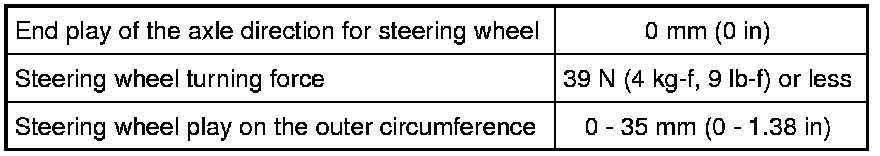

Steering Wheel






Steering Column

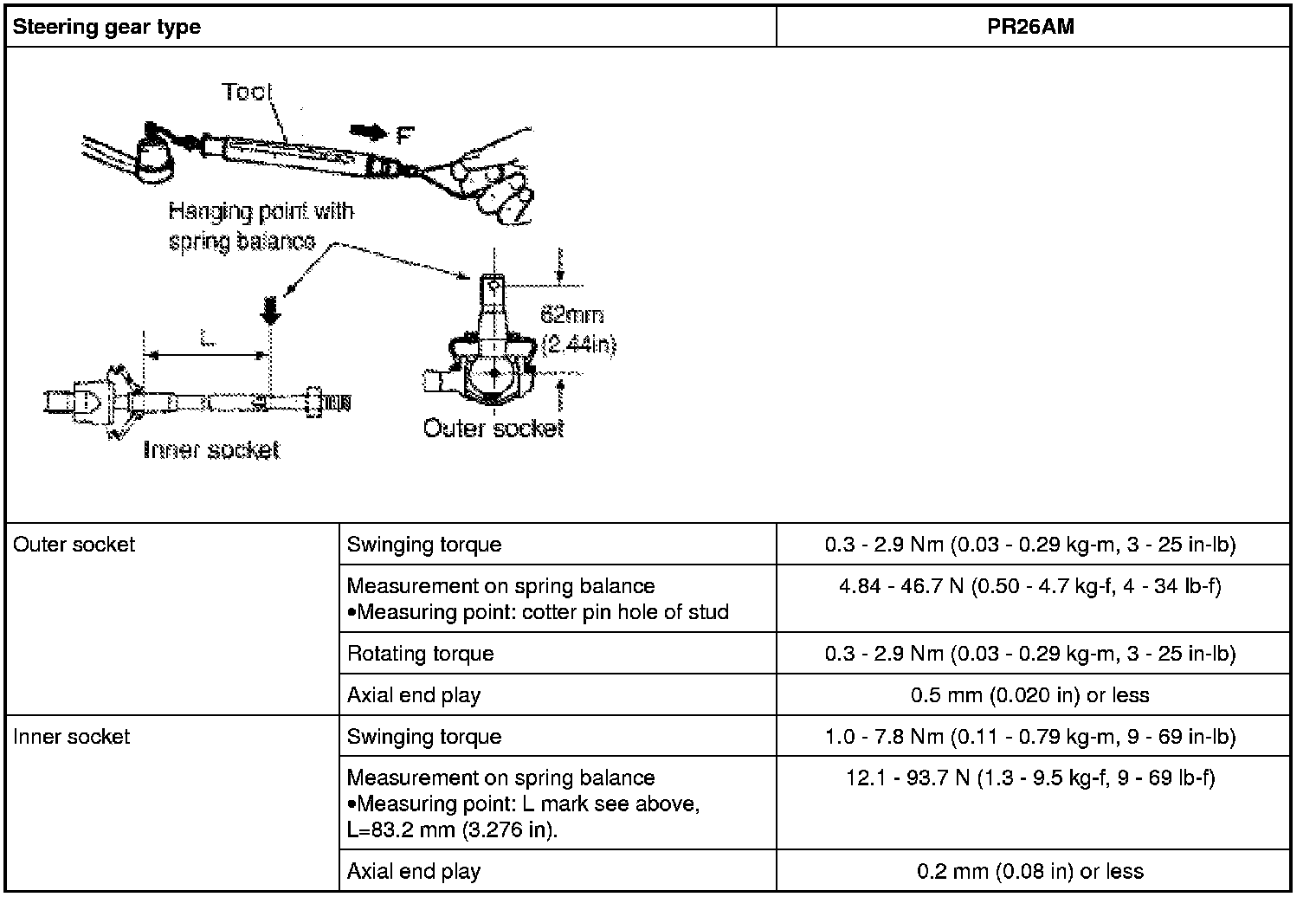

Steering Gear Outer and Inner Socket

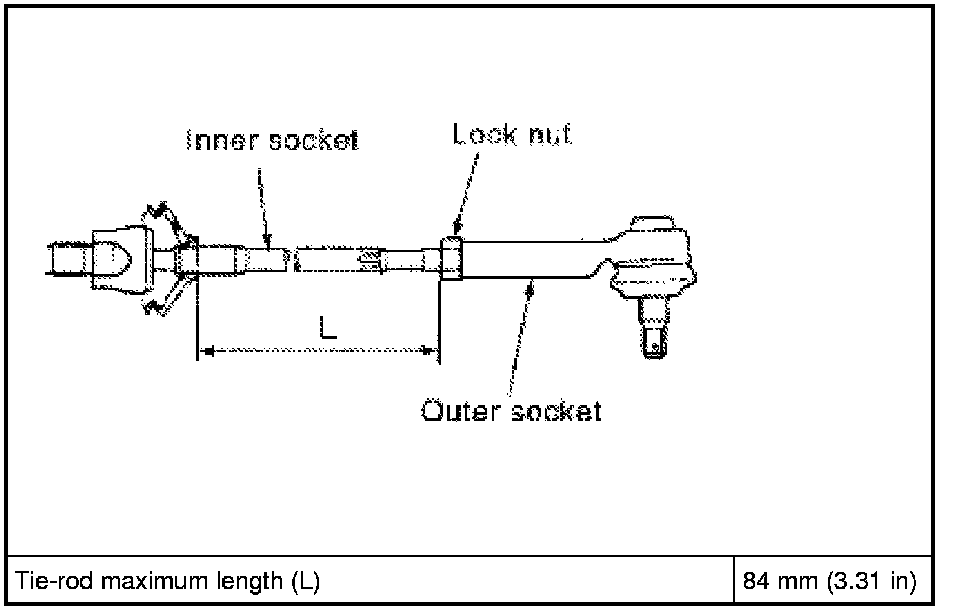

Tie-rod
