Charging System: Specifications

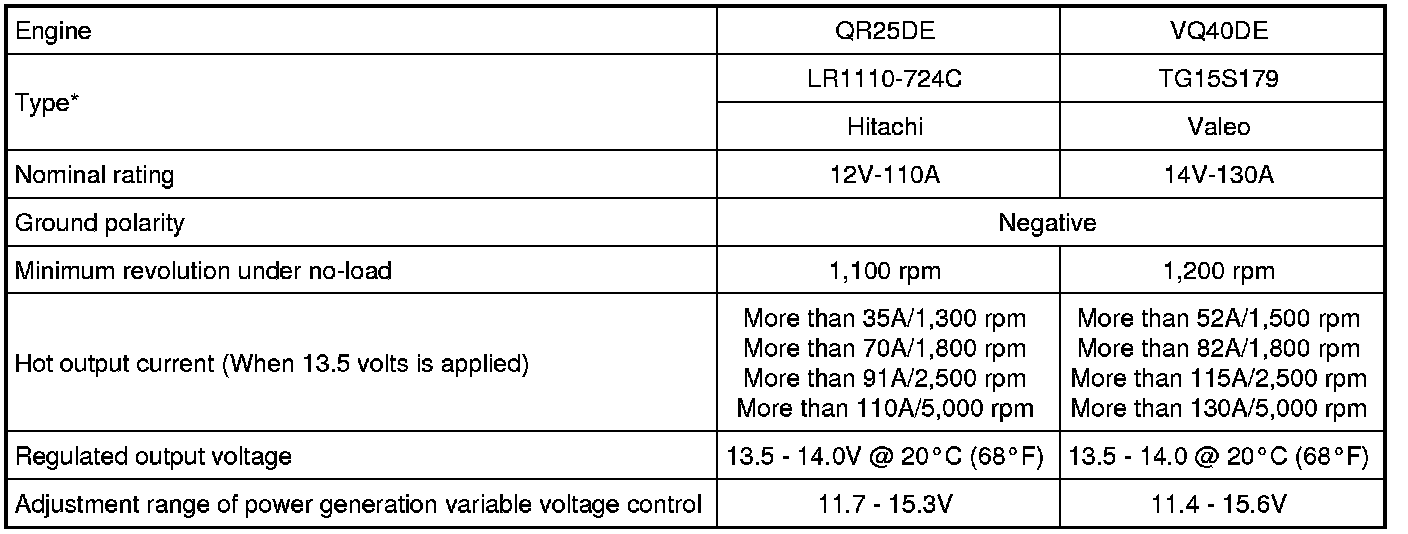

Service Data and Specifications





*: Always check with the Parts Department for the latest parts information






Service Data and Specifications





*: Always check with the Parts Department for the latest parts information
