Scan Tool Testing and Procedures

SDT Function (AT)

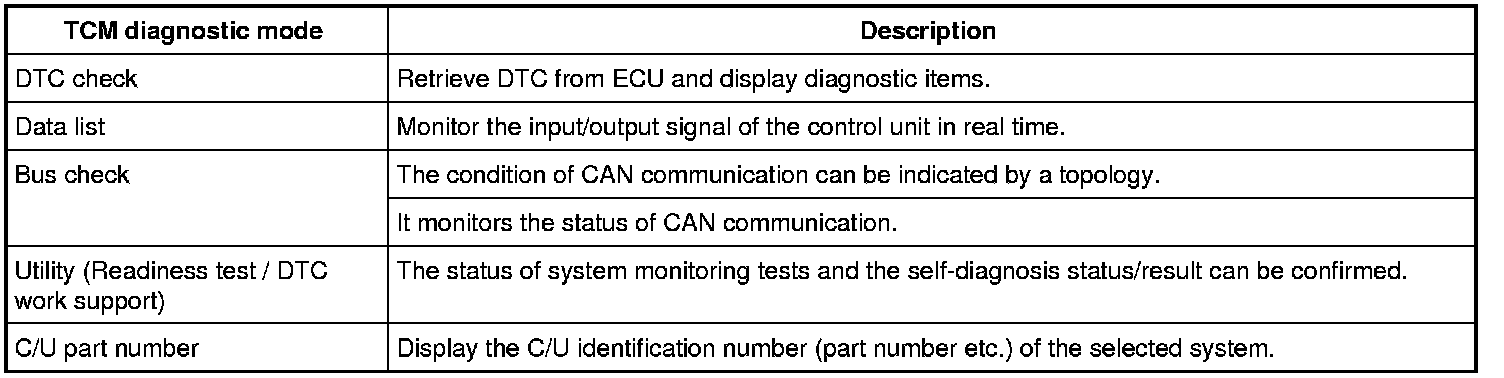

Function






DTC Check Mode

Display Items List

X: Applicable, -: Not applicable










*1: Refer to [Malfunction Indicator Lamp (MIL)] Malfunction Indicator Lamp (MIL).

*2:These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.

Data List Mode

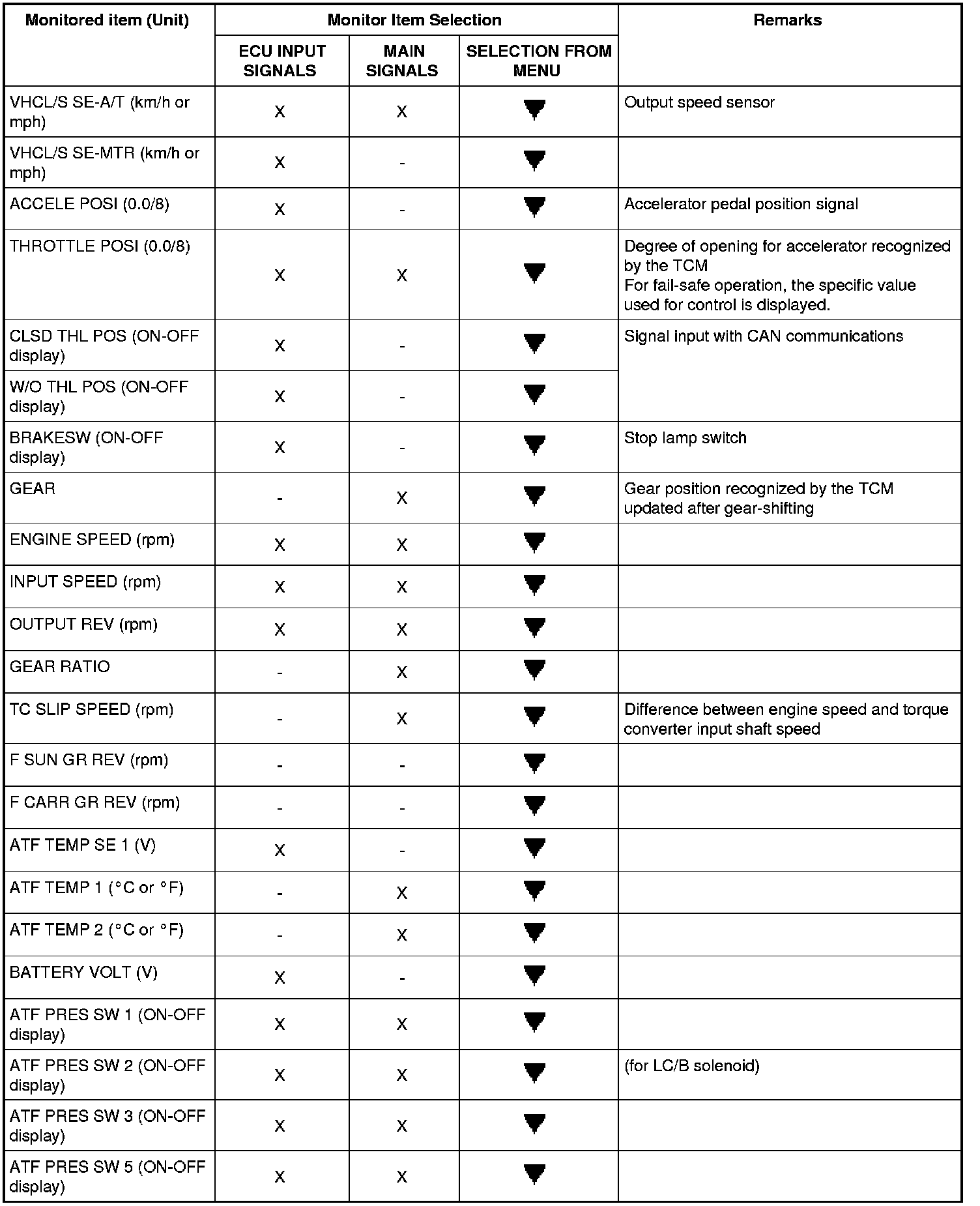

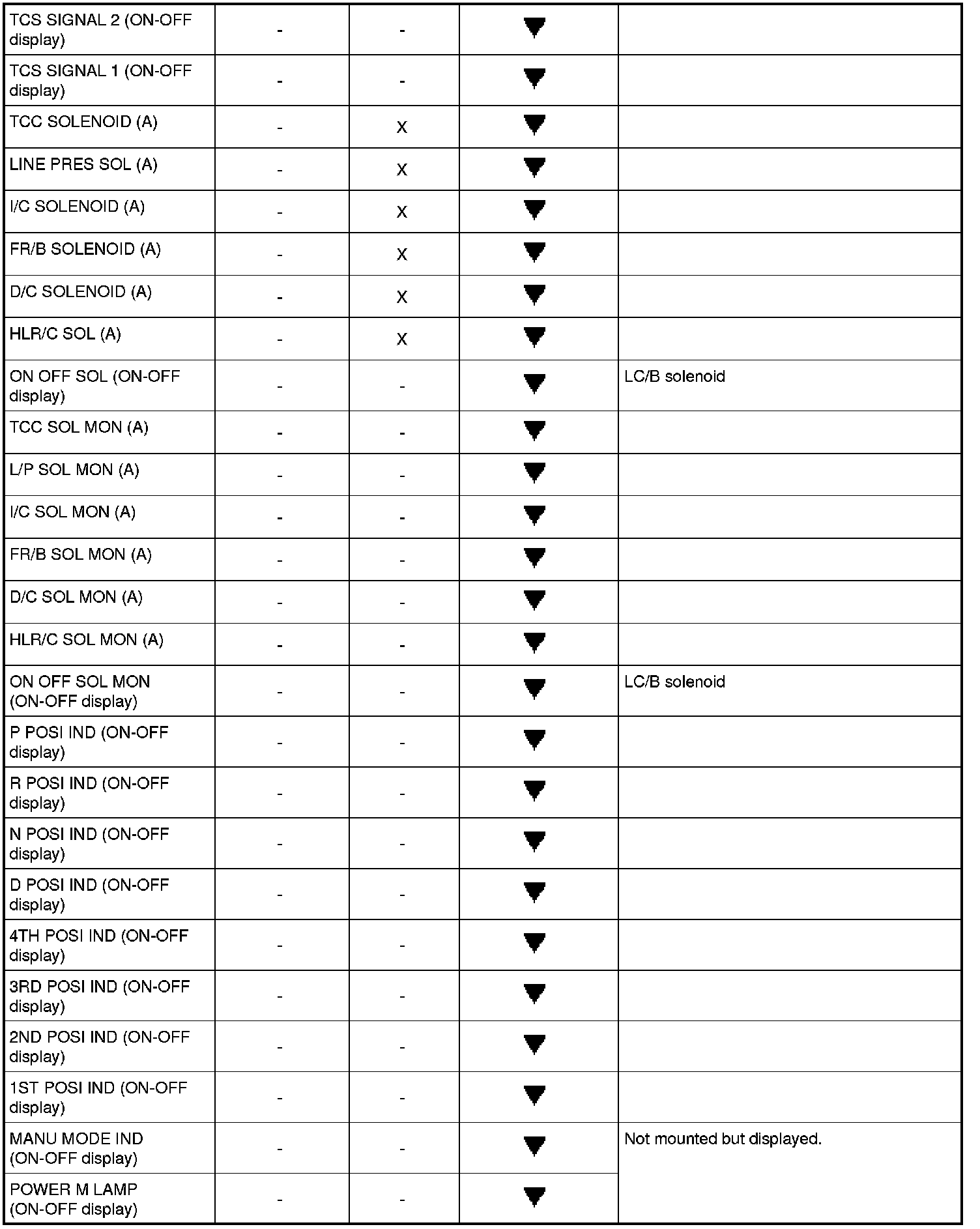

Display Items List

X: Standard, -: Not applicable,: Option


















Utility (Readiness Test / DTC Work Support)

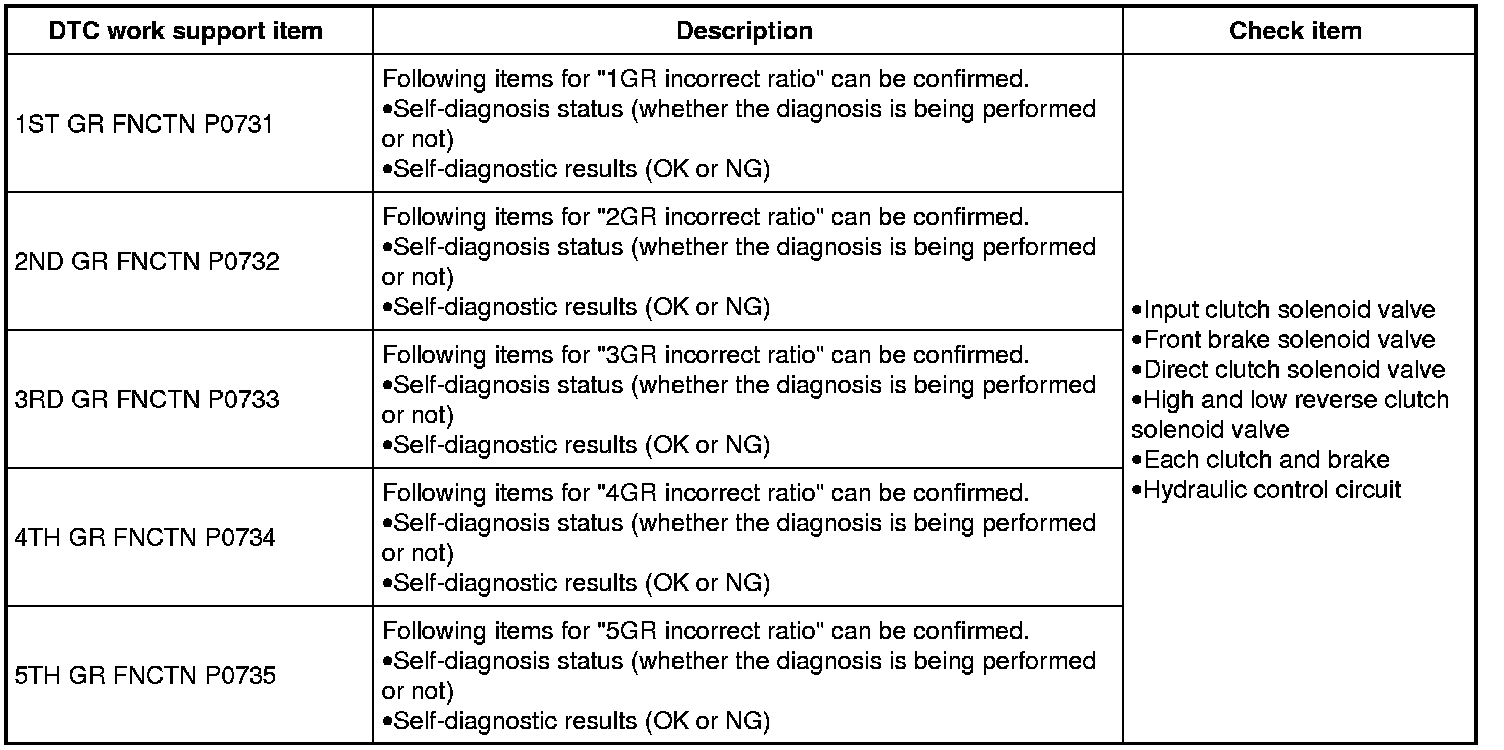

DTC Work Support Mode
