Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2011
>>
Grand Vitara 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

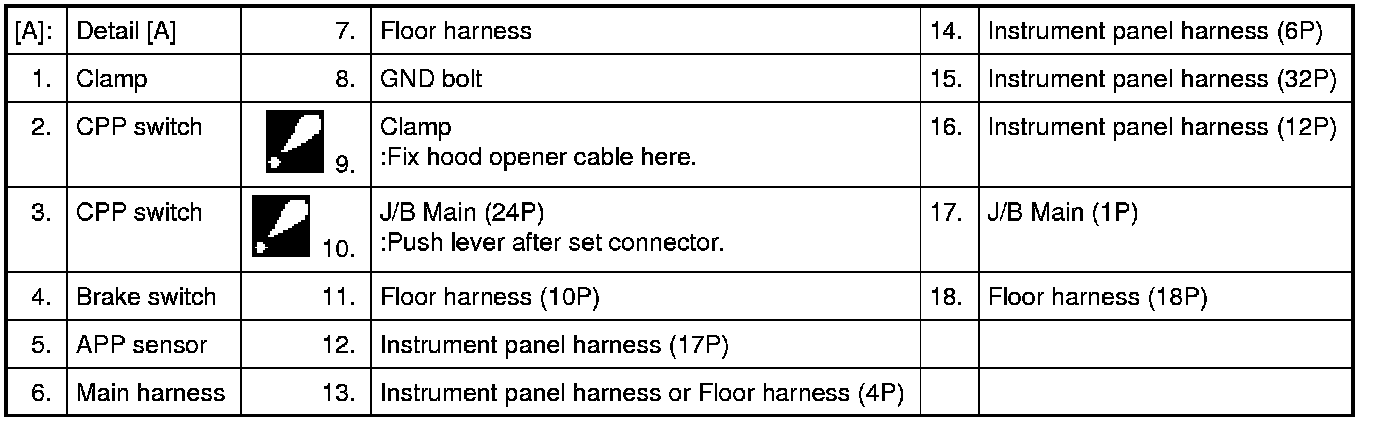

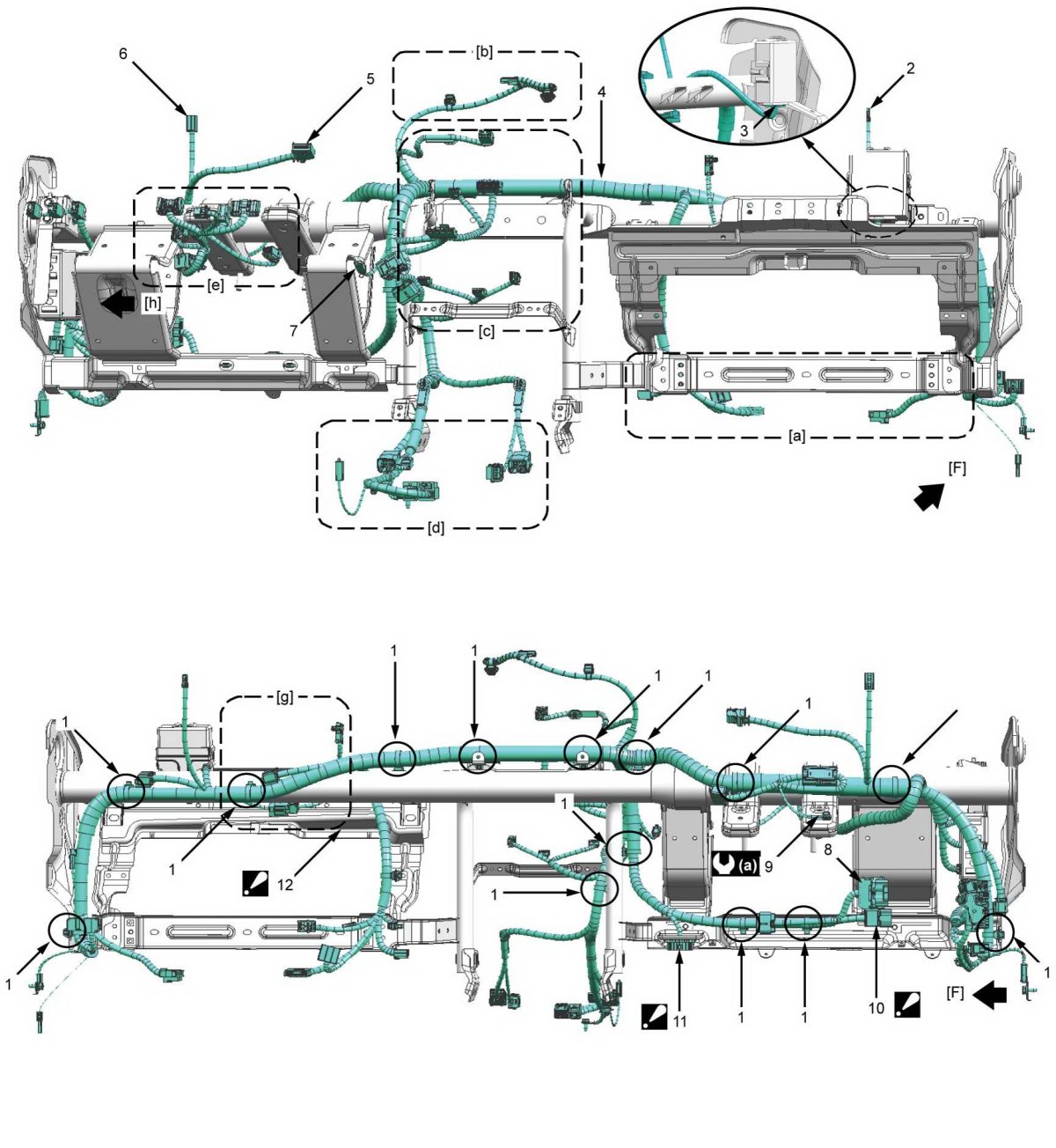

Around Instrument Panel
Around Instrument Panel
Around Instrument Panel

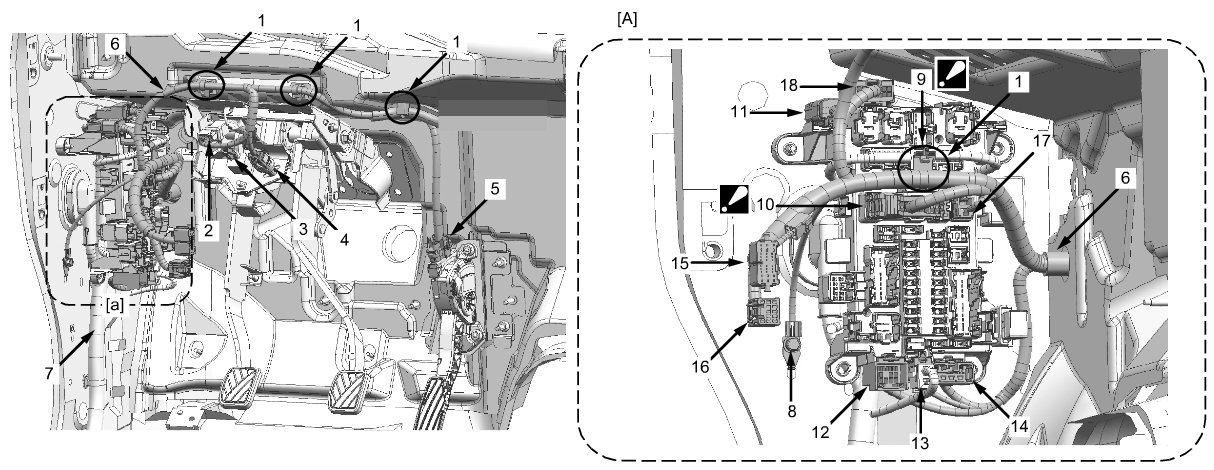

On Dash Panel

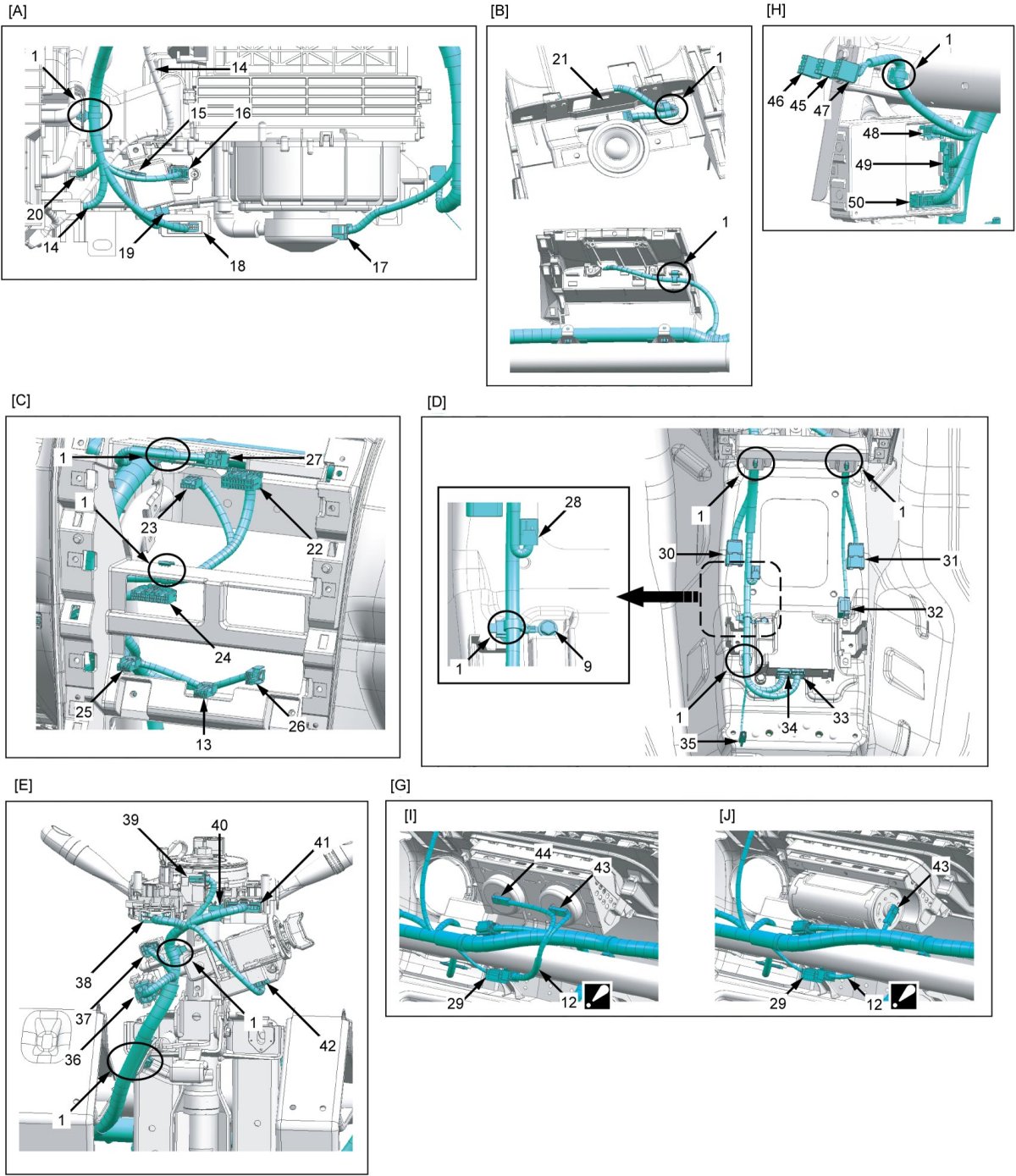

Inside the Instrument Panel
