Locations
>>
Harness Locations
>>

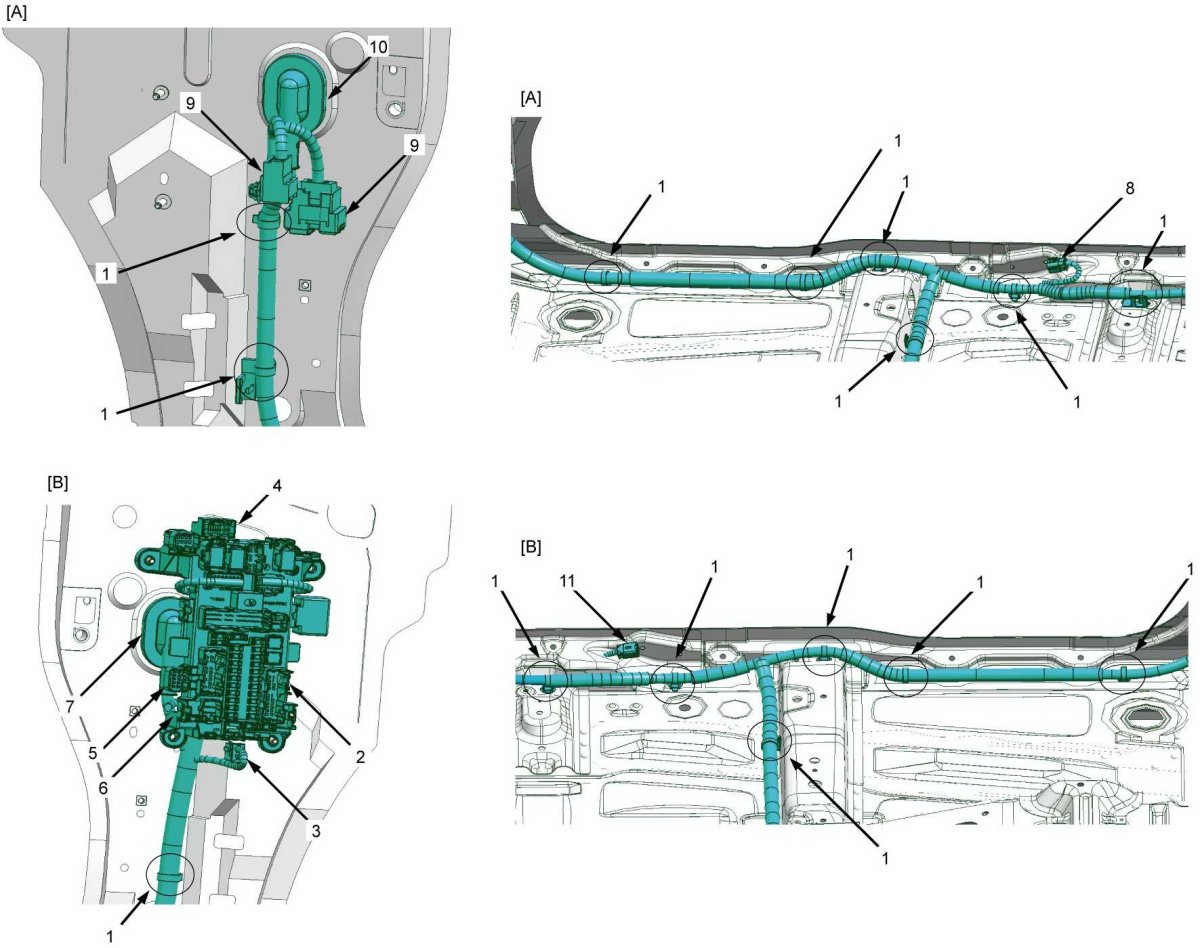

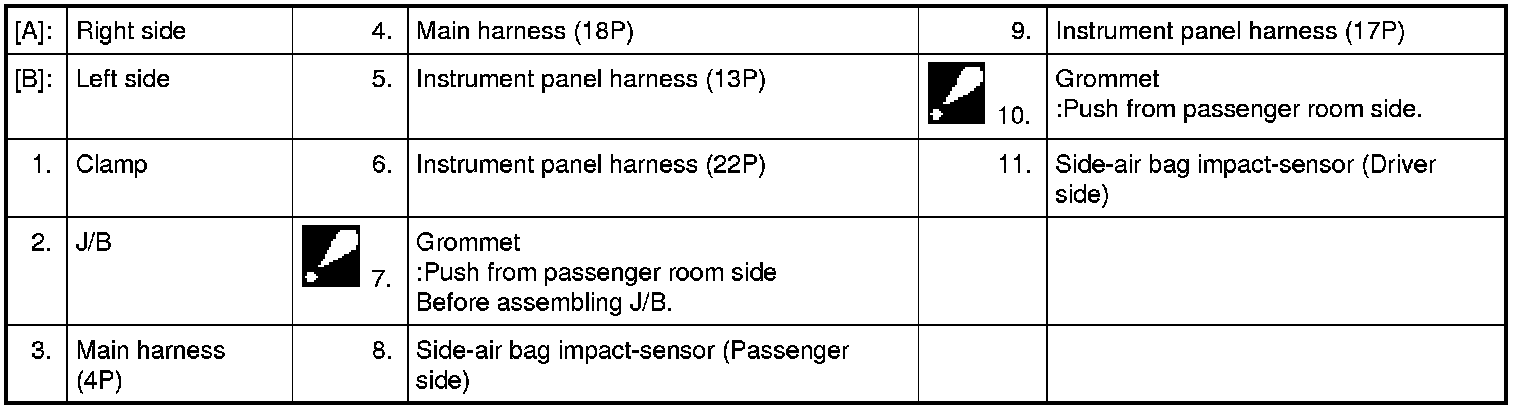

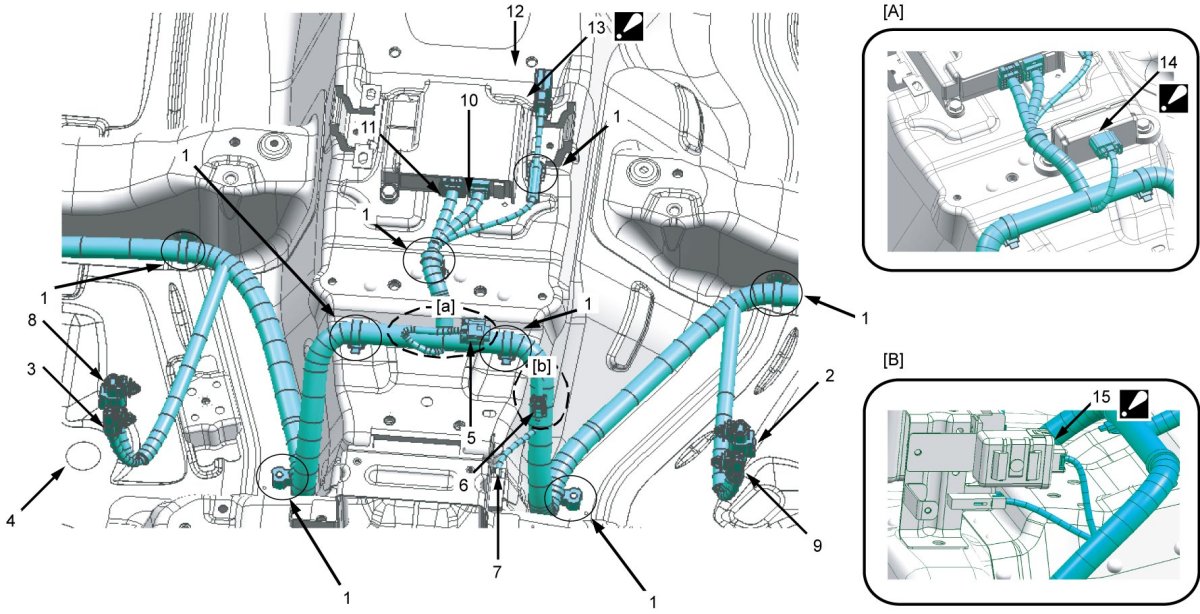

Around Main Floor

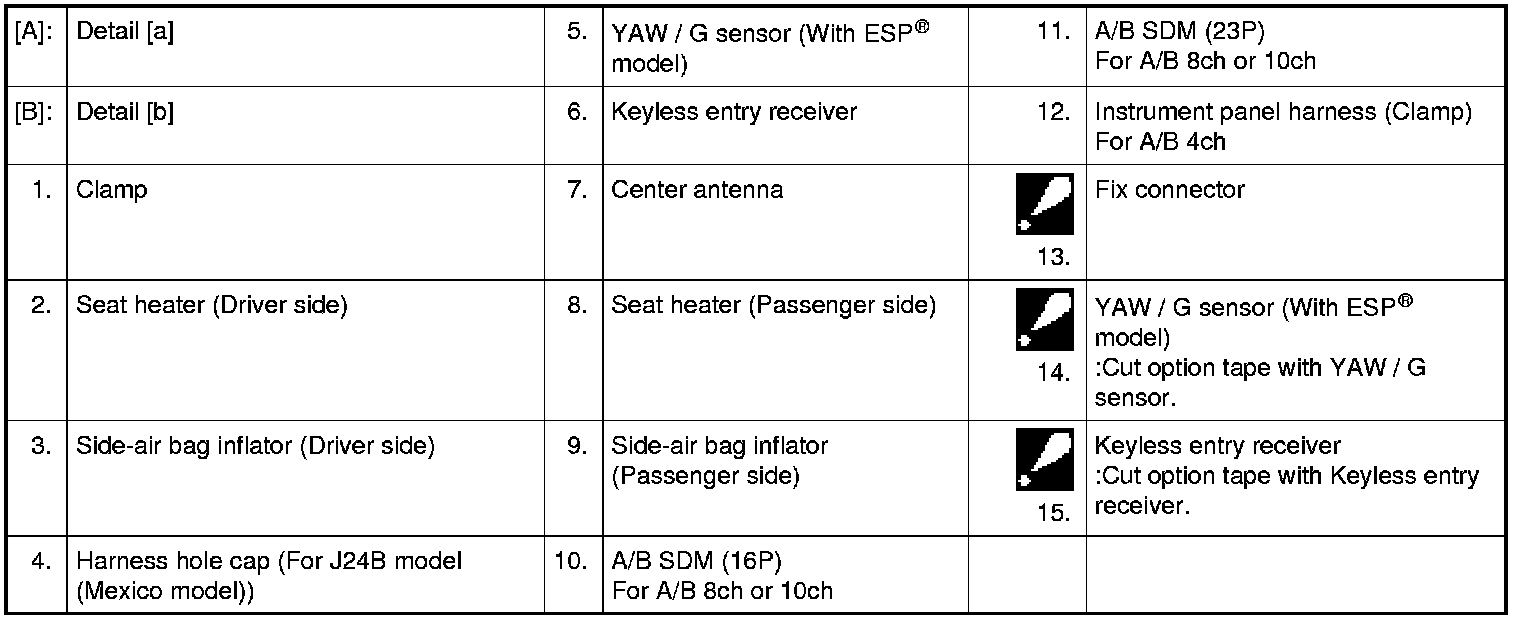

Around Main Floor
Around Main Floor
Front Part

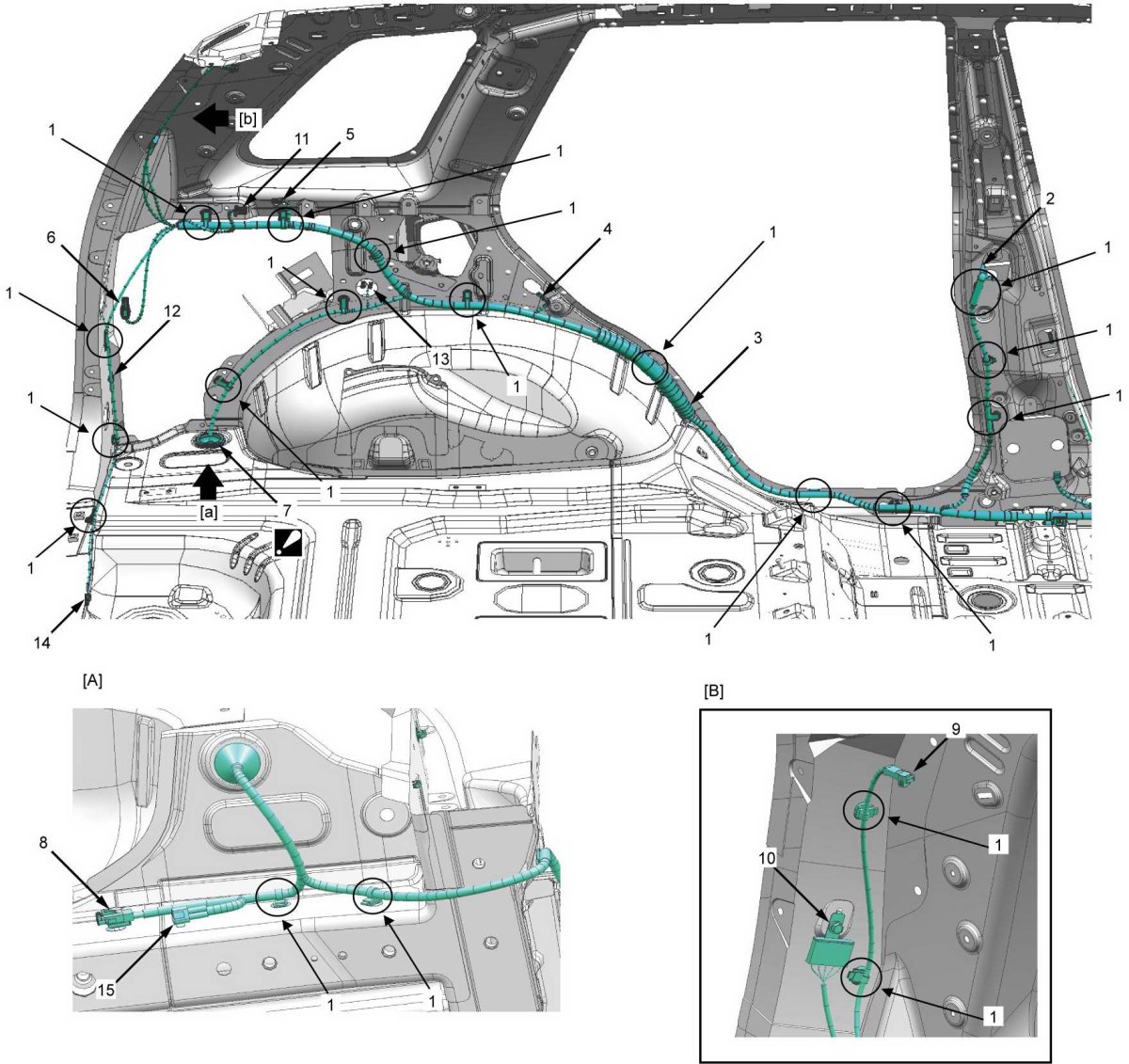

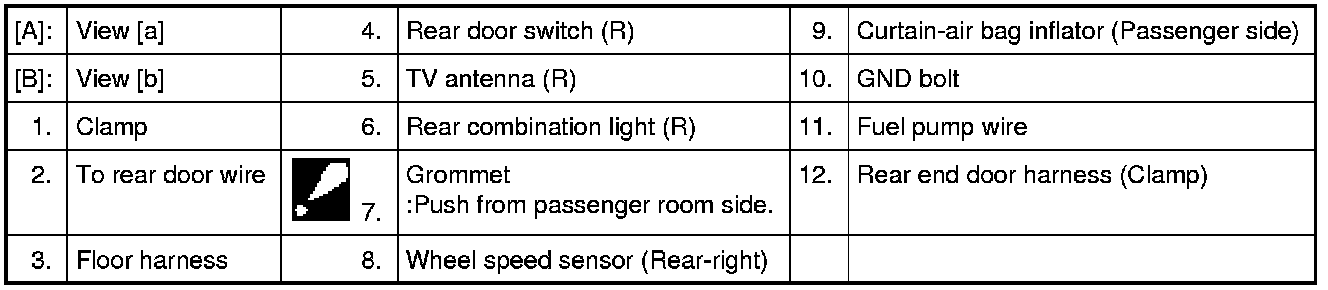

Right Side

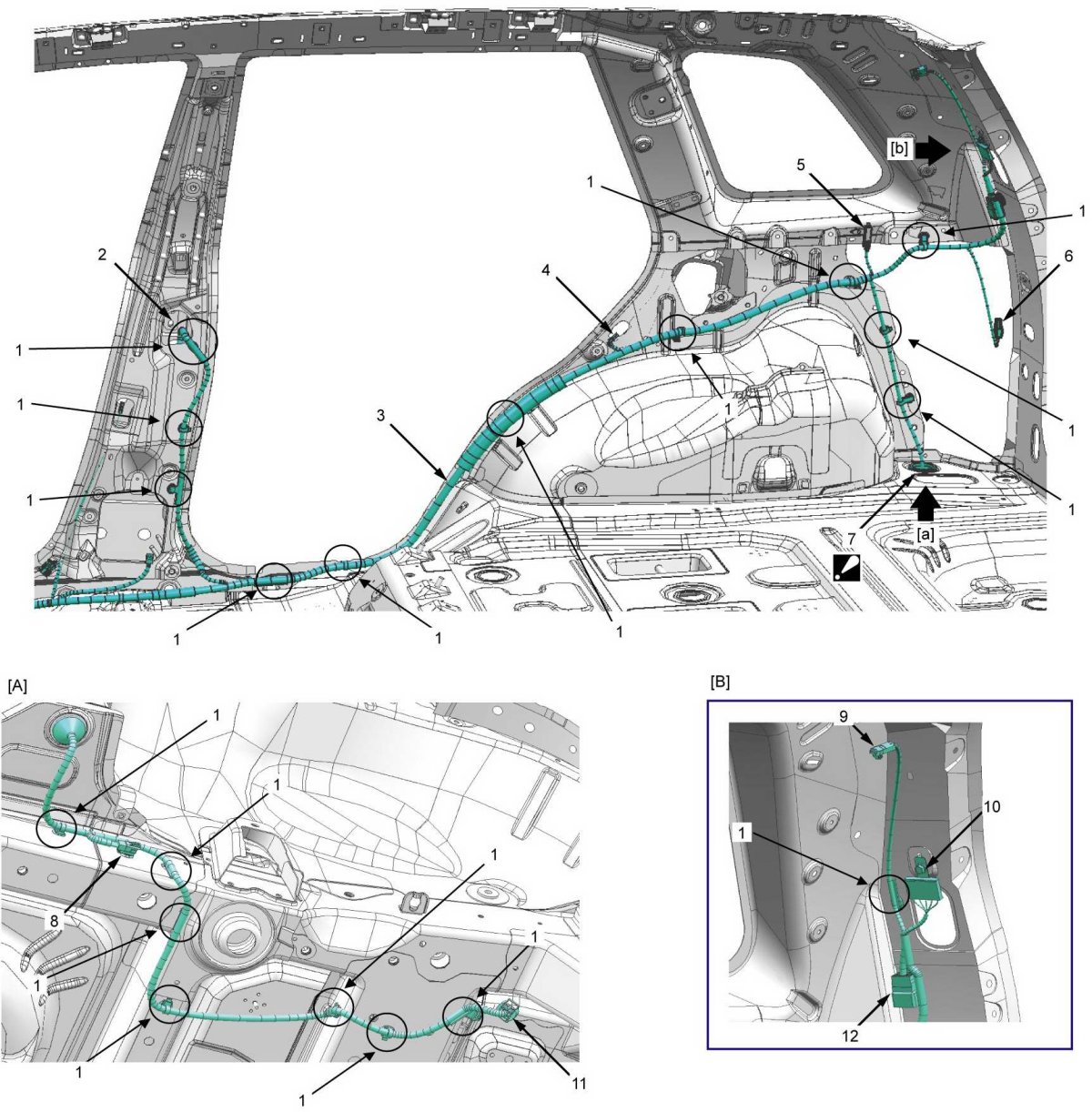

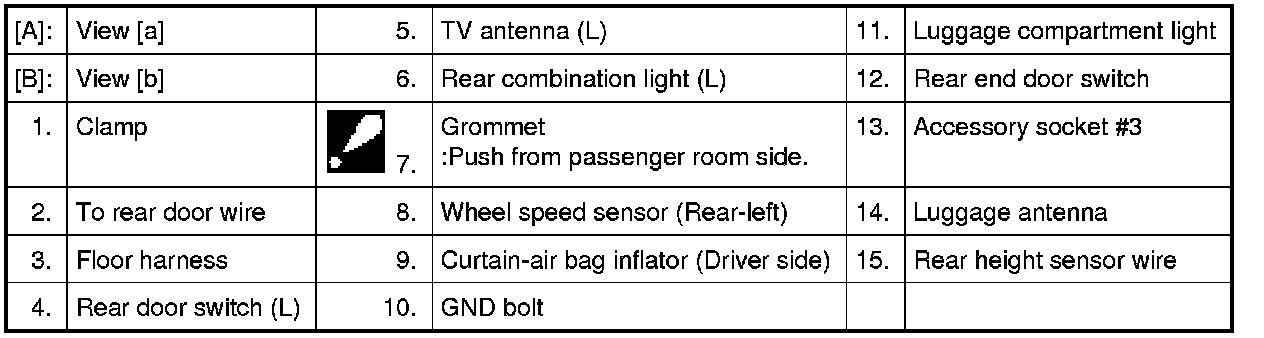

Left Side

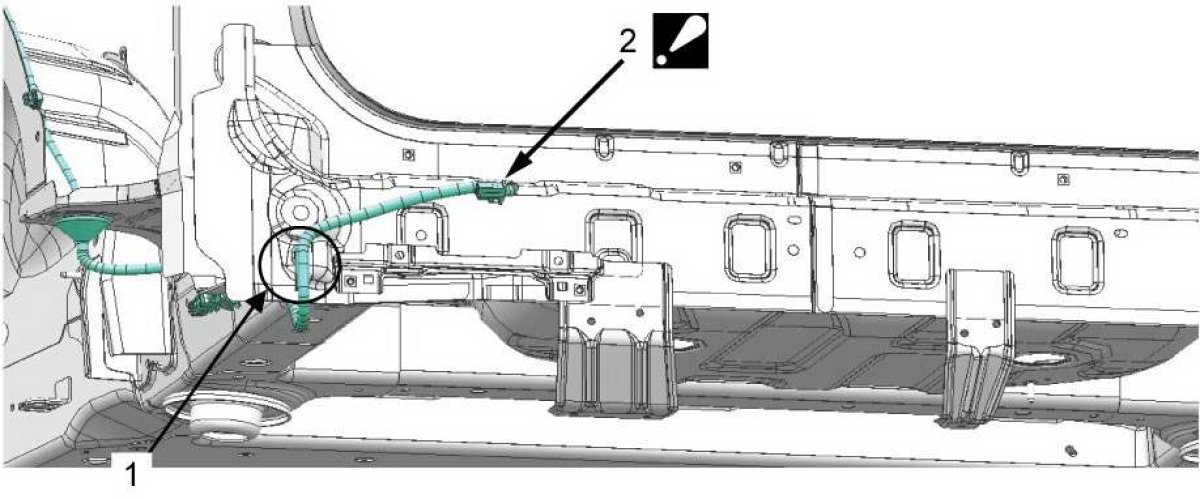

Rear Part
